To remove a Drive Carrier from the VTrak, pull the Drive Carrier Latch Handle
and remove an unused Drive Carrier (see Figure 2).
PATA-to-SATA
Adapter
SATA Drive Mounting Holes

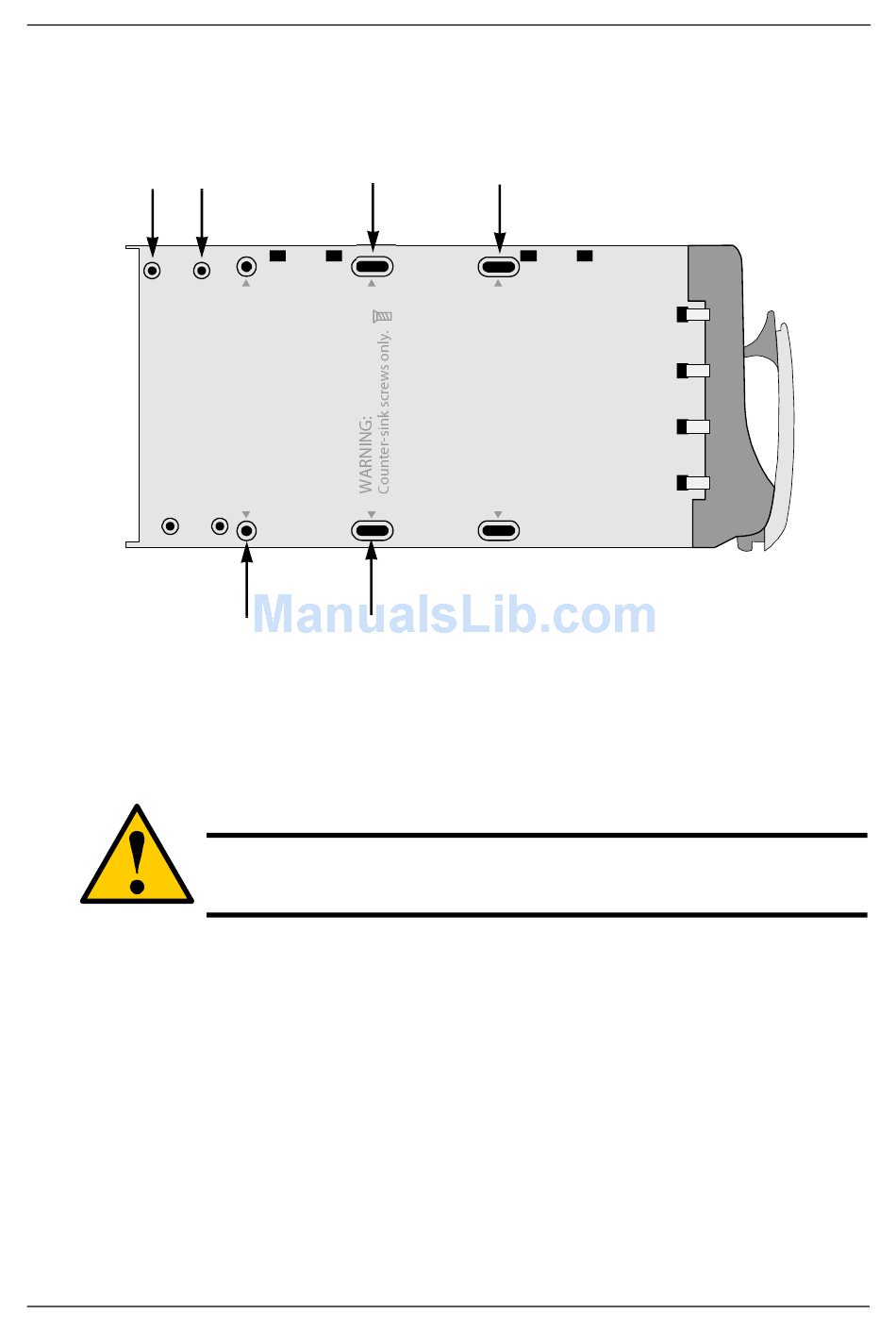

Figure 4. Drive Carrier mounting holes
Note that the Drive Carrier has several mounting holes (above). Those marked
with a triangle are for disk drives.
Be sure to install the counter-sink screws supplied with the VTrak.
Use of other types of screws can damage the adjacent drives.
PATA Drive
Mounting Holes
Caution
11
Chapter 2: Installation
