Physical Drive Management

• Physical Drive View (below)
• Physical Drive Information (page 101)

Physical Drive View

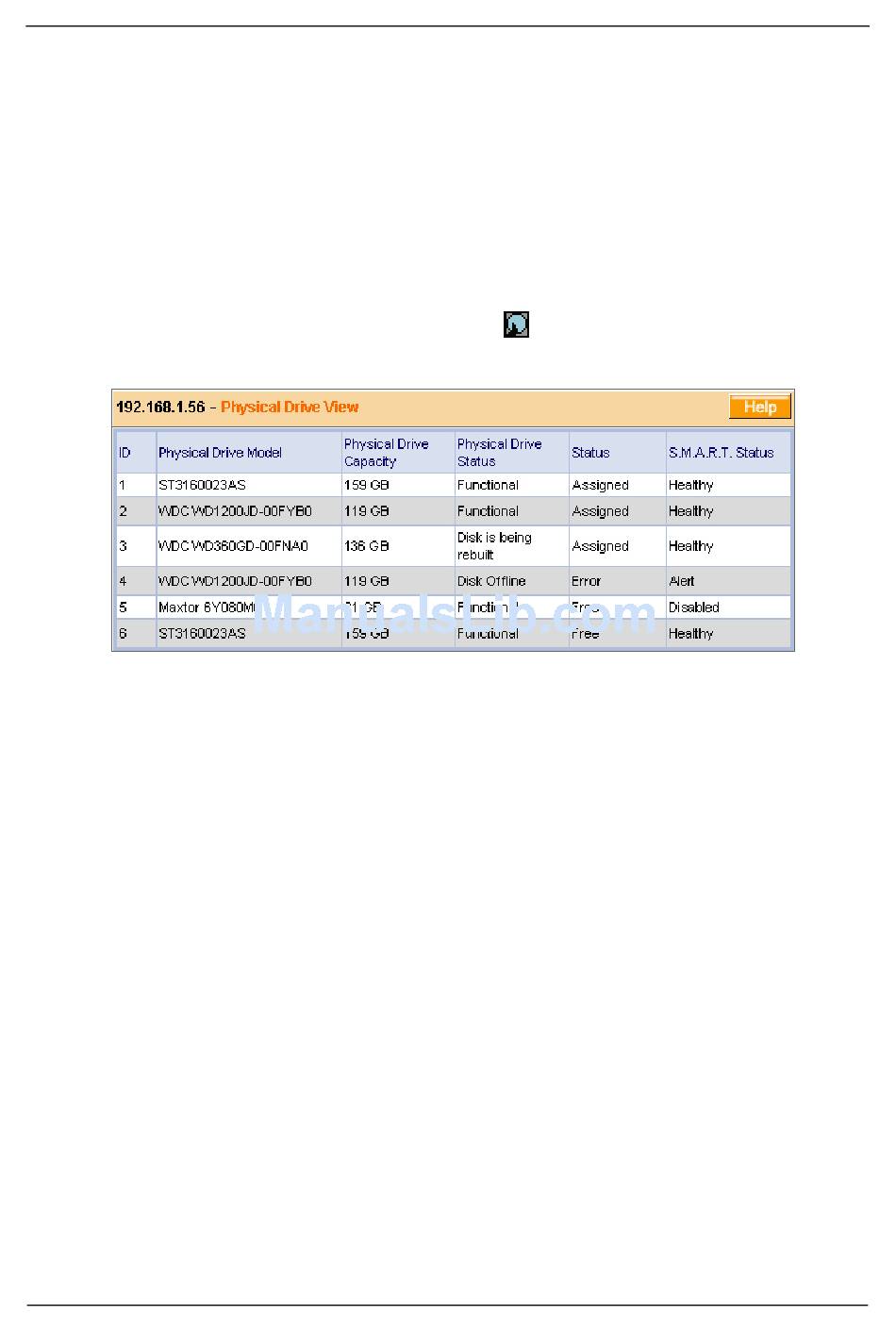

The Physical Drive View shows all of the disk drives working under this
Controller.
To access Physical Drive View, click on the
screen will display.
ID – The Controller channel to which each disk drive is attached. Only channels
with a disk drive appear in the list. If you have a drive on a channel but it does not
show in Physical Drive View, something is wrong with the drive or there is a bad
connection.
Physical Drive Model – Refers to the drive manufacturer's identification.
Physical Drive Capacity – The total data storage size in gigabytes. Not the
available capacity.
Physical Drive Status – Refers to functional status of an individual disk drive.
• Functional means normal.
• Disk is being rebuilt means that this drive is the Target Drive of the rebuild
operation that is in progress.
• Disk Offline means this drive is not available for use due to an error.
Status – Refers to assignable status of an individual disk drive.
• Free means available for use in a logical drive.
• Assigned means that currently belongs to a logical drive.
• Error means not available due to a problem with this disk drive.
Note: If you assign a disk drive as a hot spare, its Assignment will still show Free,
since it does not yet belong to a logical drive.
icon. The Physical Drive View
