Chapter 5: Management with the CLU

• VTrak Status Indicators (below)
• Drive Status Indicators (page 124
• Audible Alarm (page 125)
• CLU Connection (page 125)
• Index to CLU Functions (page 127)
• Controller Management (page 134)
• Enclosure Management
(page 135)

VTrak Status Indicators

Even though the Command Line Utility offers comprehensive monitoring of
VTrak, the LED indicators on the VTrak unit provide important status information.
When the power is switched on, the LEDs on the front of the VTrak will light up.
Power

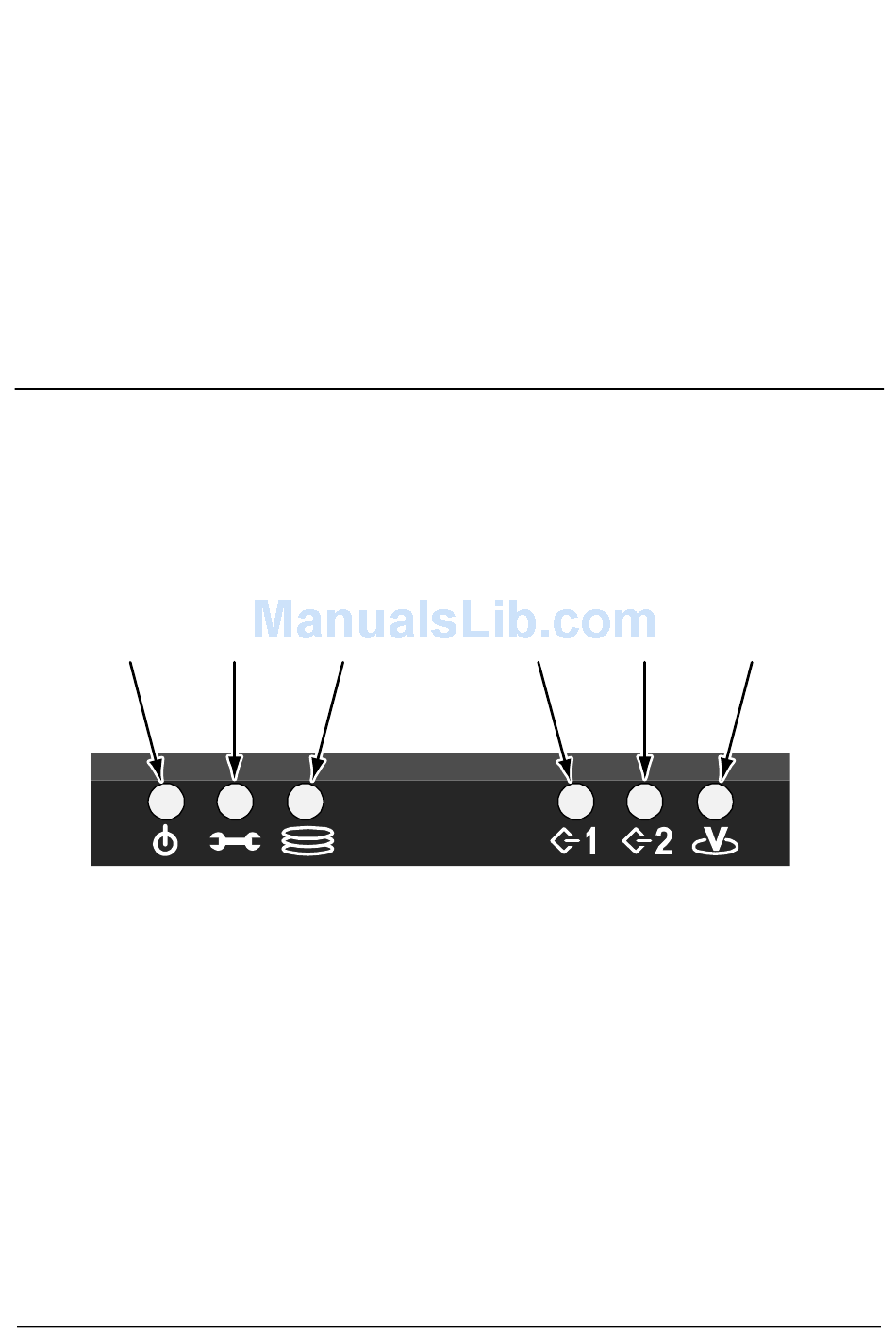

Figure 1. VTrak 15200 Front Panel LEDs
When boot-up is finished and the VTrak is functioning normally:
• Controller LED blinks green once per second for five seconds, goes dark for
ten seconds, then blinks green once per second for five seconds again.
• Power, FRU and Logical Drive LEDs display green continuously.
• iSCSI LEDs flash green if there is activity on that channel.
See the table below.
FRU Logical Drive
Status Status
• Physical Drive Management (page 138)
• Logical Drive Management (page 143)
• Network Management (page 158)
• iSCSI Management (page 164)
• Maintenance (page 152)
• Event Viewer (page 171)
• Buzzer (audible alarm) (page 172)
iSCSI-1
Activity
123
iSCSI-2 Controller
Activity Heartbeat
