Verify iSCSI Port Connections
1.

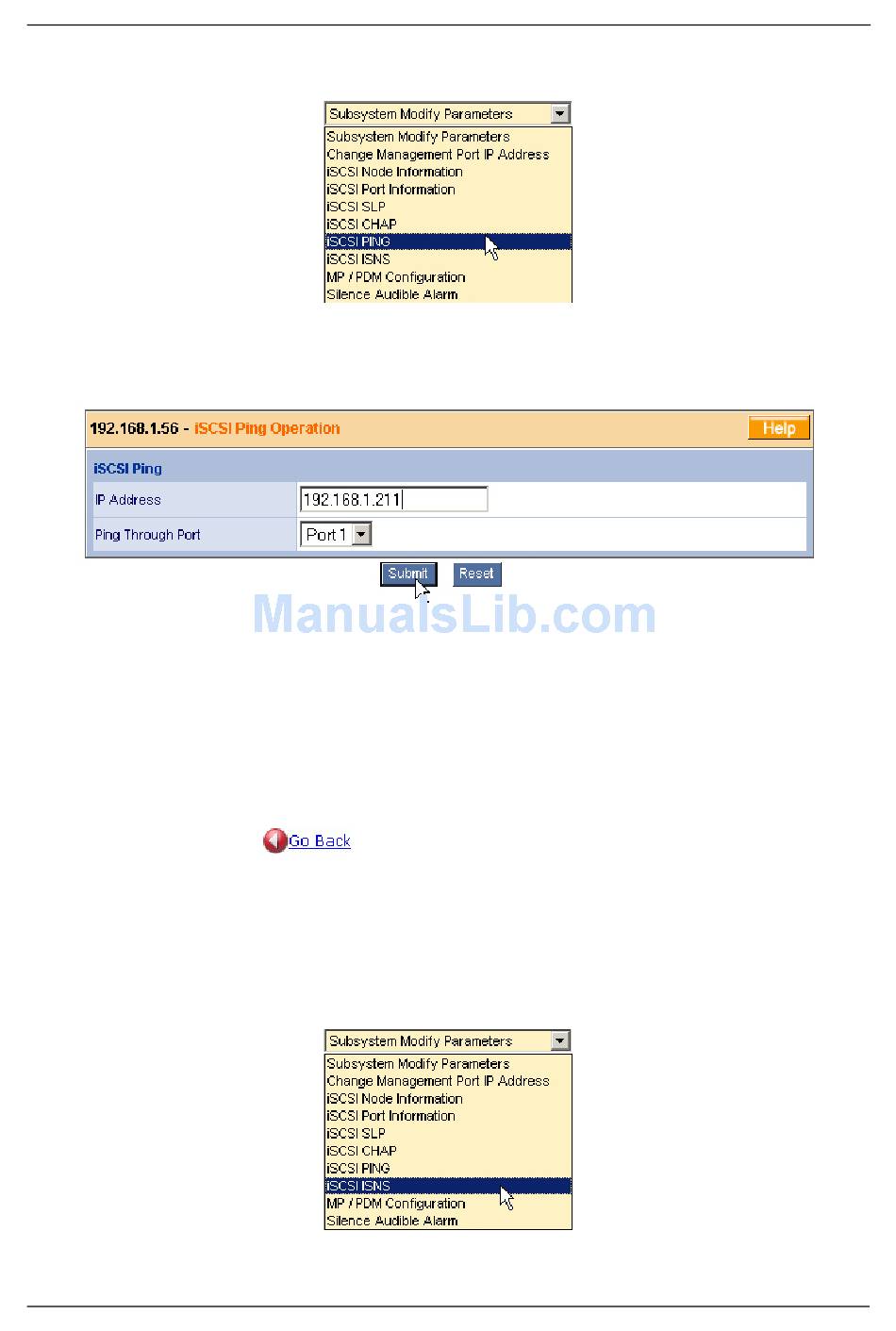

Select iSCSI Ping from the Subsystem Modify Parameters menu.
The iSCSI Ping Operation screen appears.
2.
Enter the IP address you want to ping and select the VTrak iSCSI port
through which you want to send the ping.
3.
Click Submit to send a ping.
After a few moments, a dialog box appears with the results.
4.
Click the Back button on your browser to return to the iSCSI Ping Operation
screen.
5.
Then click the
iSCSI iSNS
Internet Storage Name Service (iSNS) is a protocol with discovery and
management capabilities for IP storage. iSNS works for IP storage devices like
DNS does for an ordinary network.
1.
Select iSCSI iSNS from the Subsystem Modify Parameters menu.
Chapter 4: Management with WebPAM PRO
link to return to the Controller information window.
95
