Overview

VTrak provides data storage solutions for applications where high performance
and data protection are required. The failure of any single drive will not affect data
integrity or accessibility of the data in a RAID protected logical drive.
Power and Status LEDs

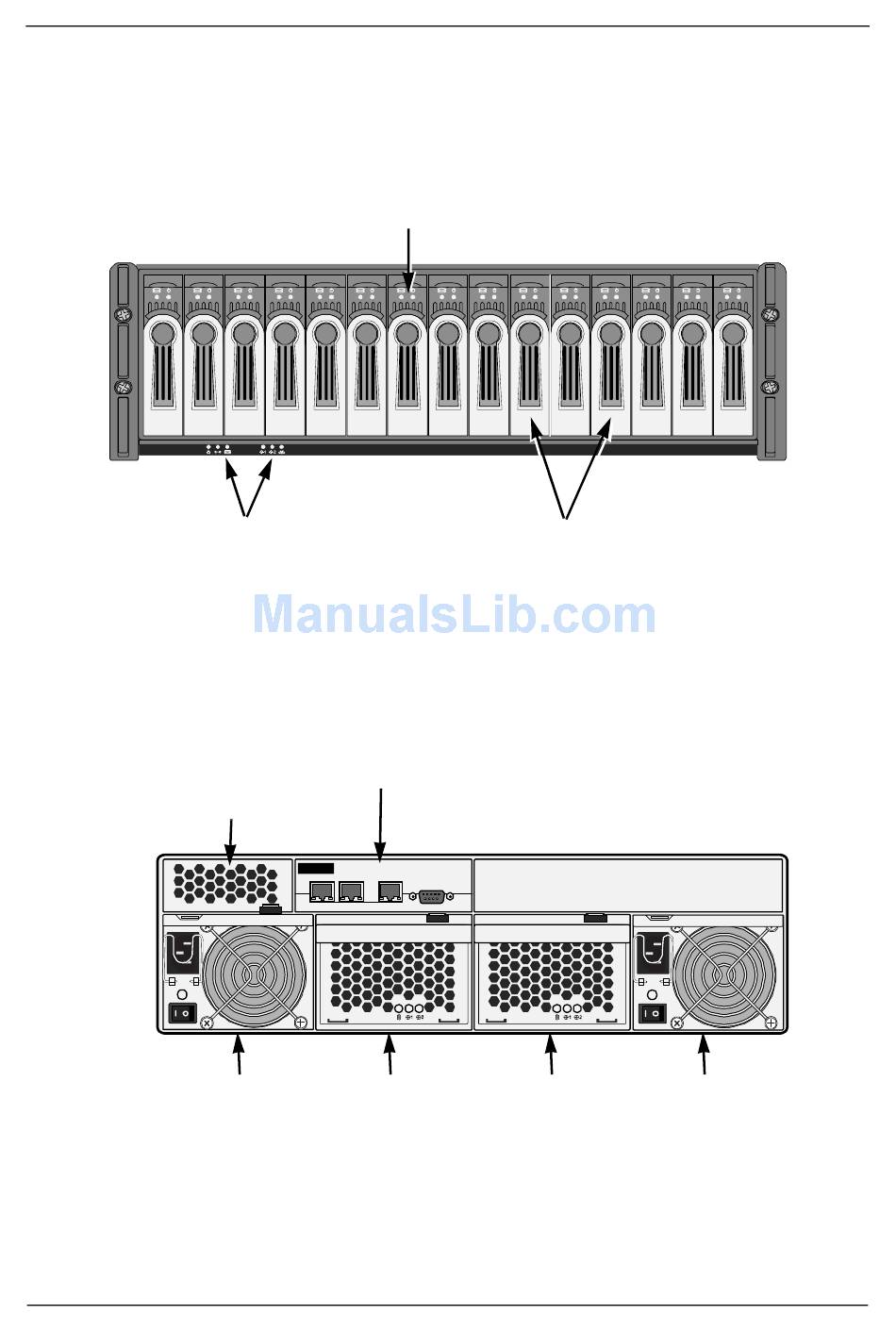

Figure 1. VTrak 15200 front view
A defective drive may be replaced without interruption of data availability to the
host computer. If so configured, a hot spare drive will automatically replace a
failed drive, securing the fault-tolerant integrity of the logical drive. The self-
contained hardware-based RAID logical drive provides maximum performance in
a compact external chassis.
Storage Enclosure
Processor (SEP)
Power Supply 1 Cooling Unit 1
Figure 2. VTrak 15200 rear view
The VTrak 15200 is an external disk array subsystem with a capacity of fifteen
individual Serial ATA or (parallel) ATA disk drives.
Drive Carrier LEDs
RAID Controller
PR O M IS E
V T r a k 1 5 2 0 0 C o n t r o l l e r
T E C H N O L O G Y , I N C .
iS CS I 1 iS CS I 2 M g m t
IOI OI
with Battery
2
Drive Carriers
Cooling Unit 2
P R O M I S E
V T r a k 1 5 2 0 0
Power Supply 2
