VTrak 15200 User Manual

Set IP Addresses

In order for VTrak to connect to a network, you must set the Management Port IP
address, Gateway IP address and Subnet Mask. You will use the Command Line
Utility (CLU) to make these settings.

Set Up CLU

1.
Obtain a static IP address for your VTrak Management Port from your
network administrator.
2.
Start your PC's terminal emulation program (examples: HyperTerminal or
Minicom).
3.
Change your PC's COM Port settings to agree with the following:
Bits per second: 115200
Data bits: 8
Parity: None
Stop bits: 1
Flow control: none
4.

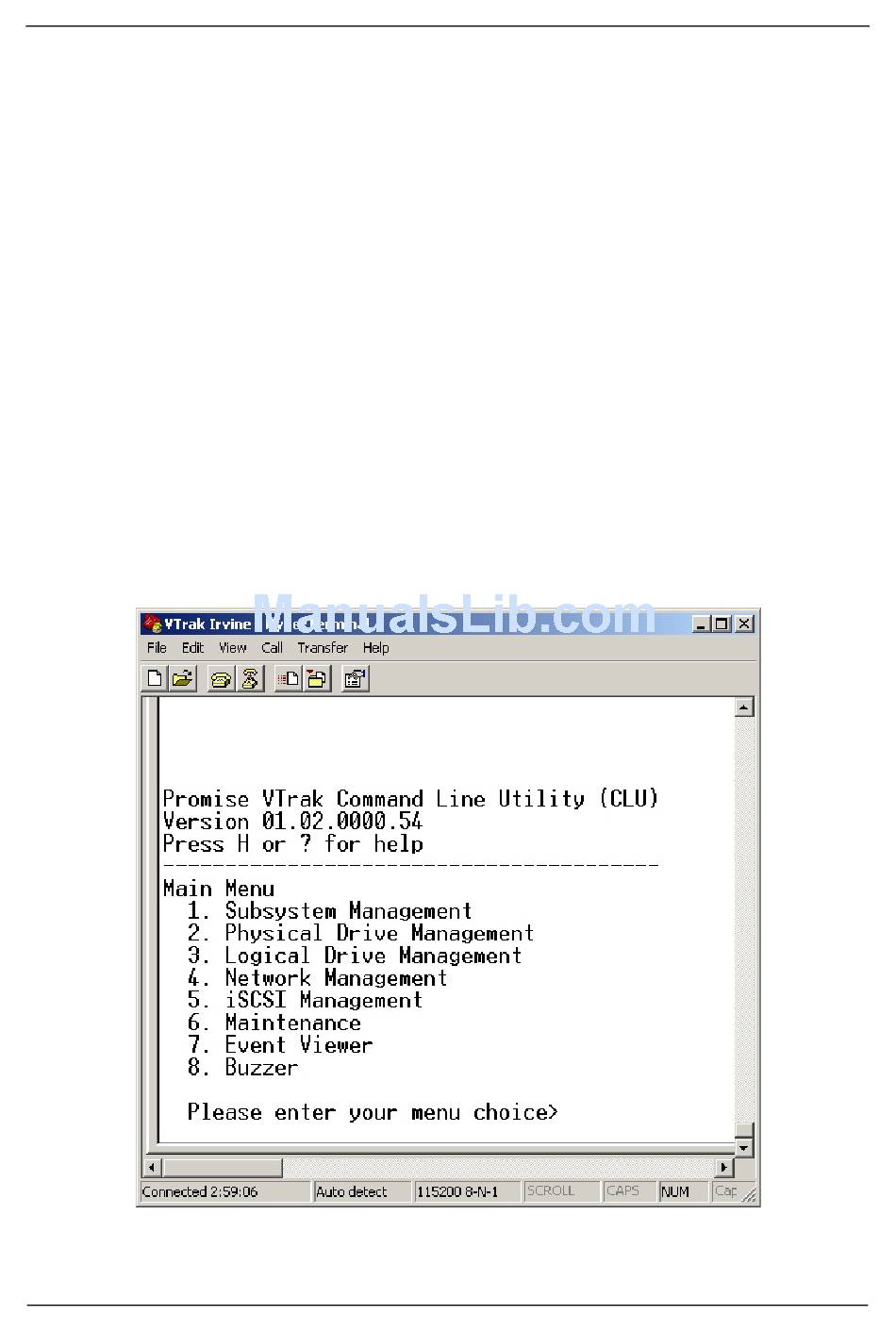

Press Enter once to launch the CLU.
20
