Replace Power Supply
The power supply and its fan are replaced as one unit. There are no individually
serviceable parts. No tools are required for this procedure.
To remove the power supply, do the following:
1.
Verify that the power supply LED is amber or red.
2.
Switch off the power.
3.
Unplug the power cord.
4.

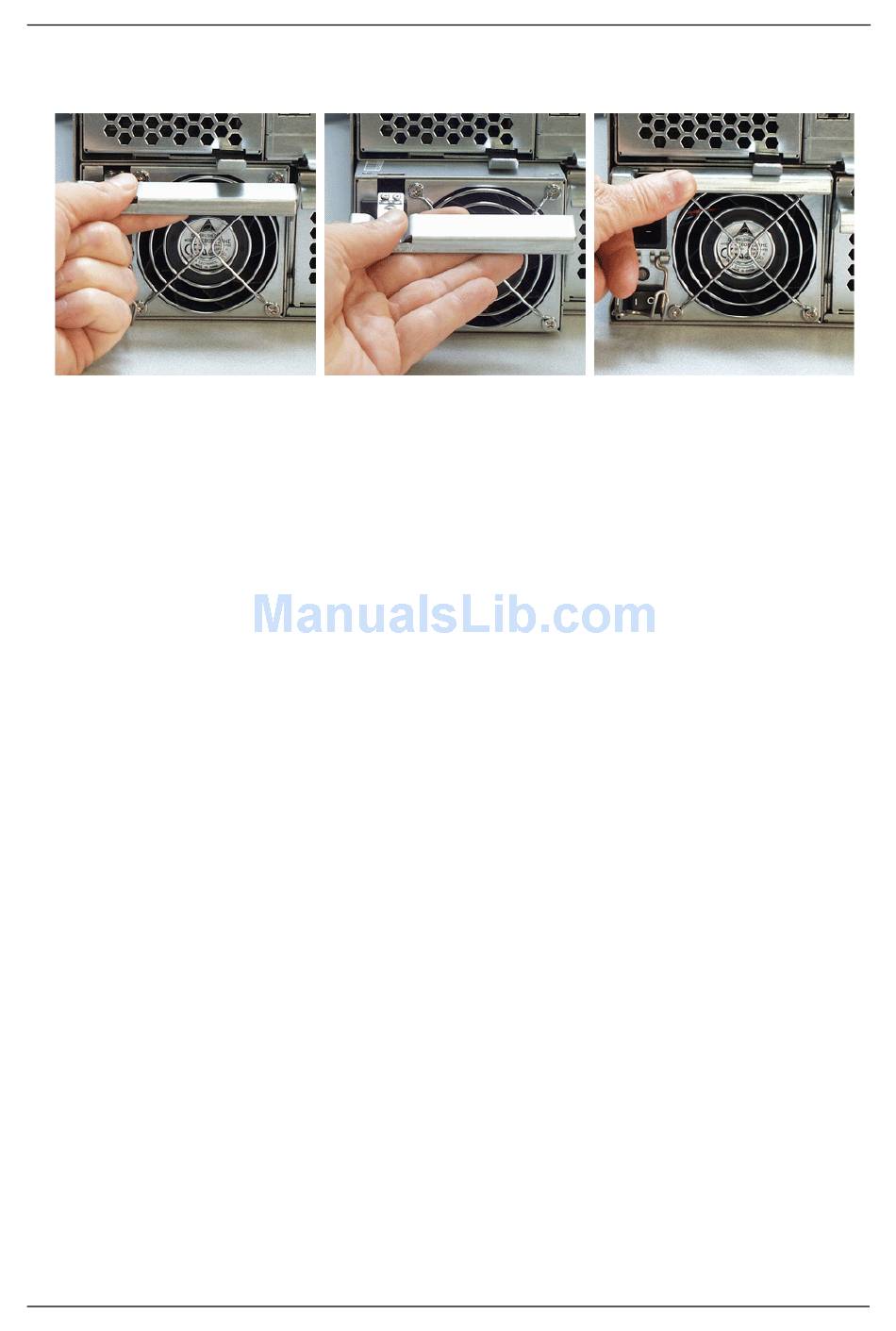

Press the release button and pull the handle downward as shown (above,
left).
5.
Pull the power supply out of the VTrak enclosure (above, center).
To install the power supply, do the following:
1.
Carefully slide the power supply into the enclosure.
2.
Gently press the handle in and upward until it locks (above, right).
3.
Plug in the power cord.
4.
Switch on the power supply.
5.
Verify that the new power supply LED is green.
This completes the power supply replacement procedure.
