Create a Logical Drive
1.

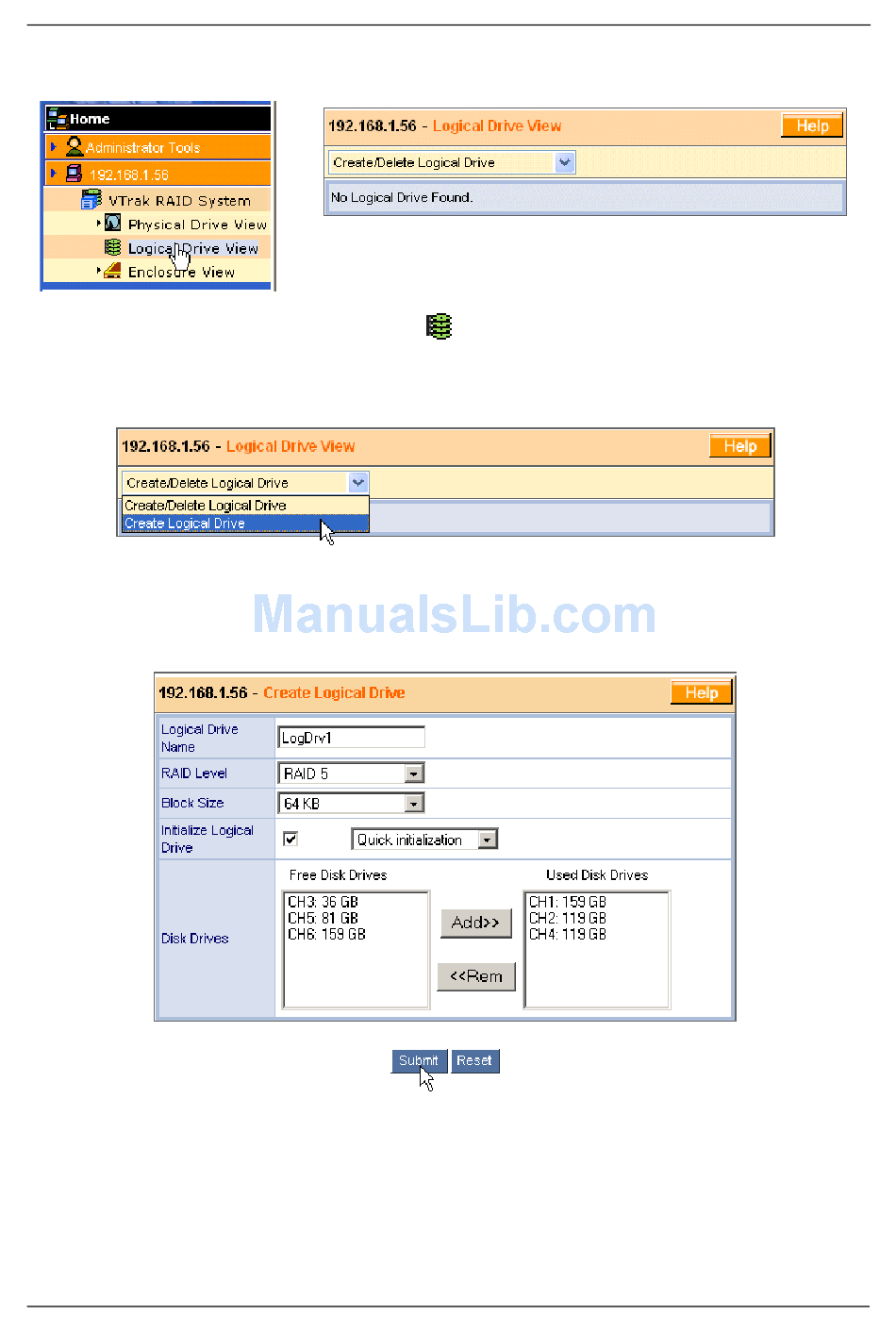

Click on the Logical Drive View
logical drives belonging to this controller appear (above).
Since this VTrak is newly activated, there are no logical drives yet.
2.
Click on Create/Delete logical drive menu in the Logical Drive View window
(above) and select Create logical drive.
The Create Logical Drive window appears.
Type in a Logical Drive name, select RAID Level and Block Size.
See Chapter 7 on page 189 for an explanation of these RAID concepts.
icon. In the Management window, all
47
Chapter 3: Setup
