VTrak 15200 User Manual
Serial ATA Disk Drives
Serial ATA Disk Drive

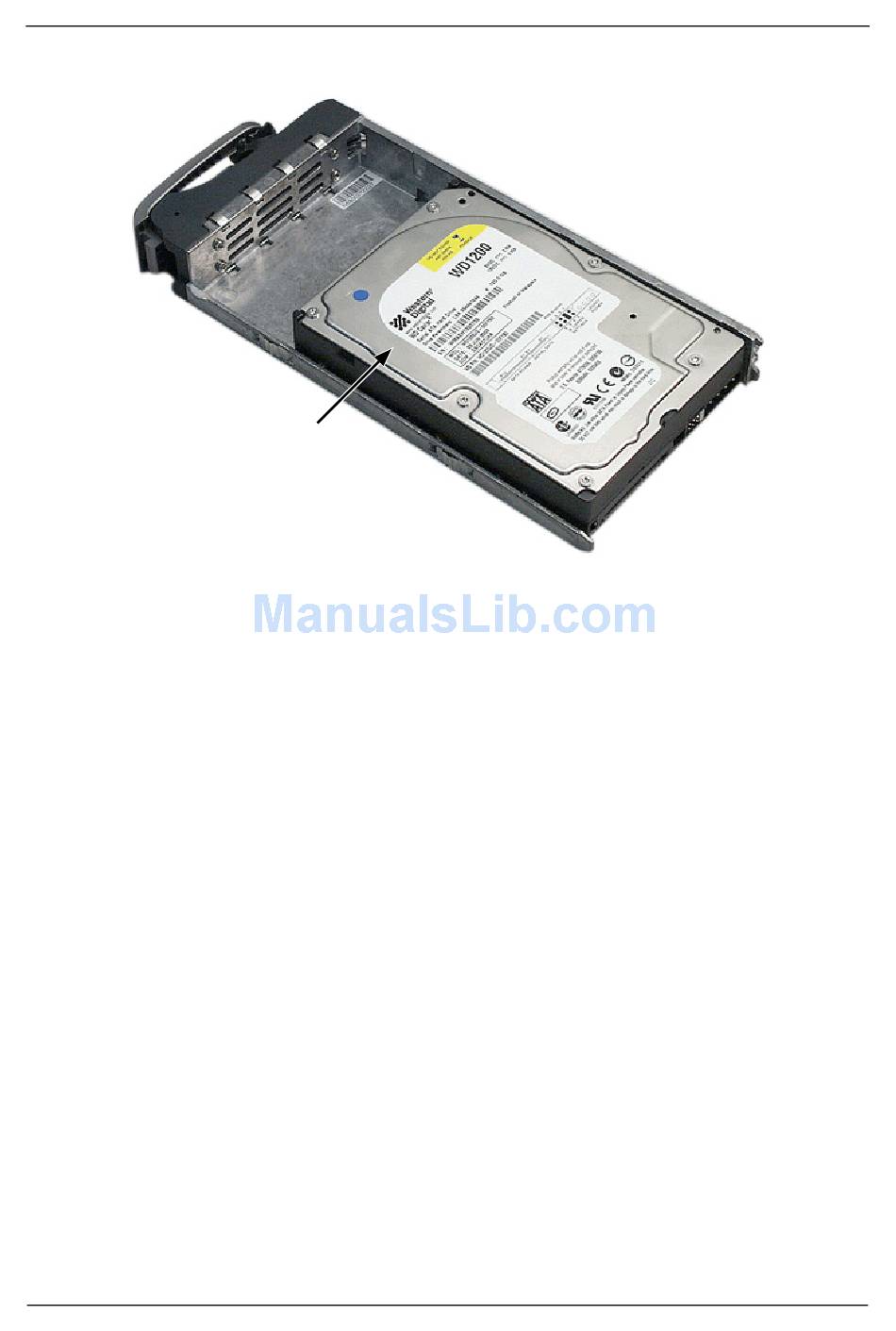

Figure 5. SATA Disk Drives mount at the front of the carrier
1.
Carefully lay the drive into the drive carrier at the front, so that the screw
holes on the bottom line up.
2.
Insert the screws through the holes in the Drive Carrier and into the bottom
of the disk drive (see Figure 4).
•
Install only the screws supplied with the VTrak.
•
Install four screws per drive.
•
Snug each screw. Be careful not to over tighten.
3.
Reinstall the drive carrier into the VTrak chassis.
4.
Repeat these steps until all of your disk drives are installed.
