3.
Extract the firmware image (.img) file to the TFTP server's default directory.
Firmware
image file
4.

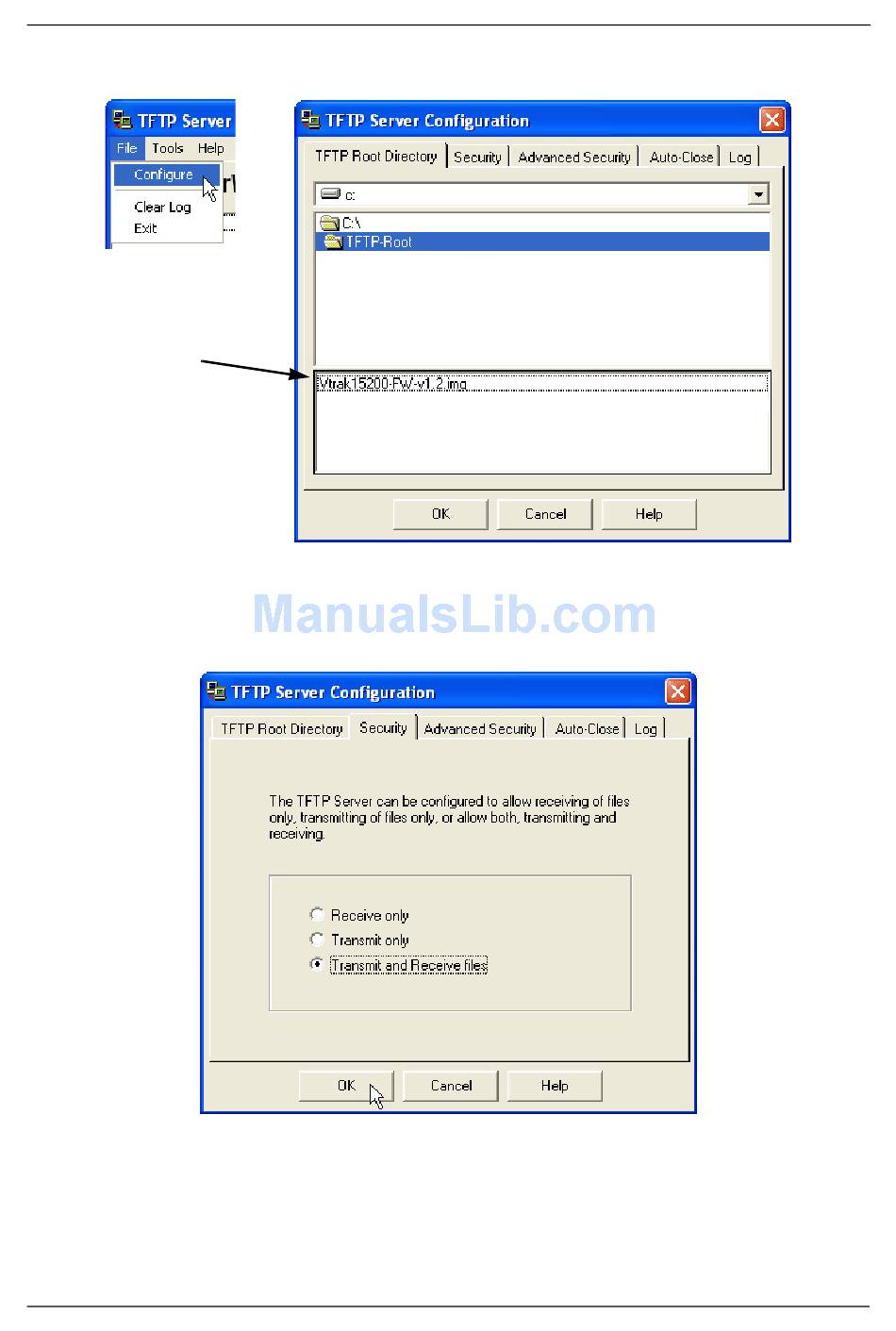

To verify that the TFTP server sees the firmware image file, select File >
Configure and click the TFTP Root Directory tab.
The image file will appear if the download and extraction went correctly.
5.
Click the Security tab and set the TFTP server to Transmit and Receive files.
Click OK when you are done.
175
Chapter 2: Installation
