WIRING DIAGRAMS

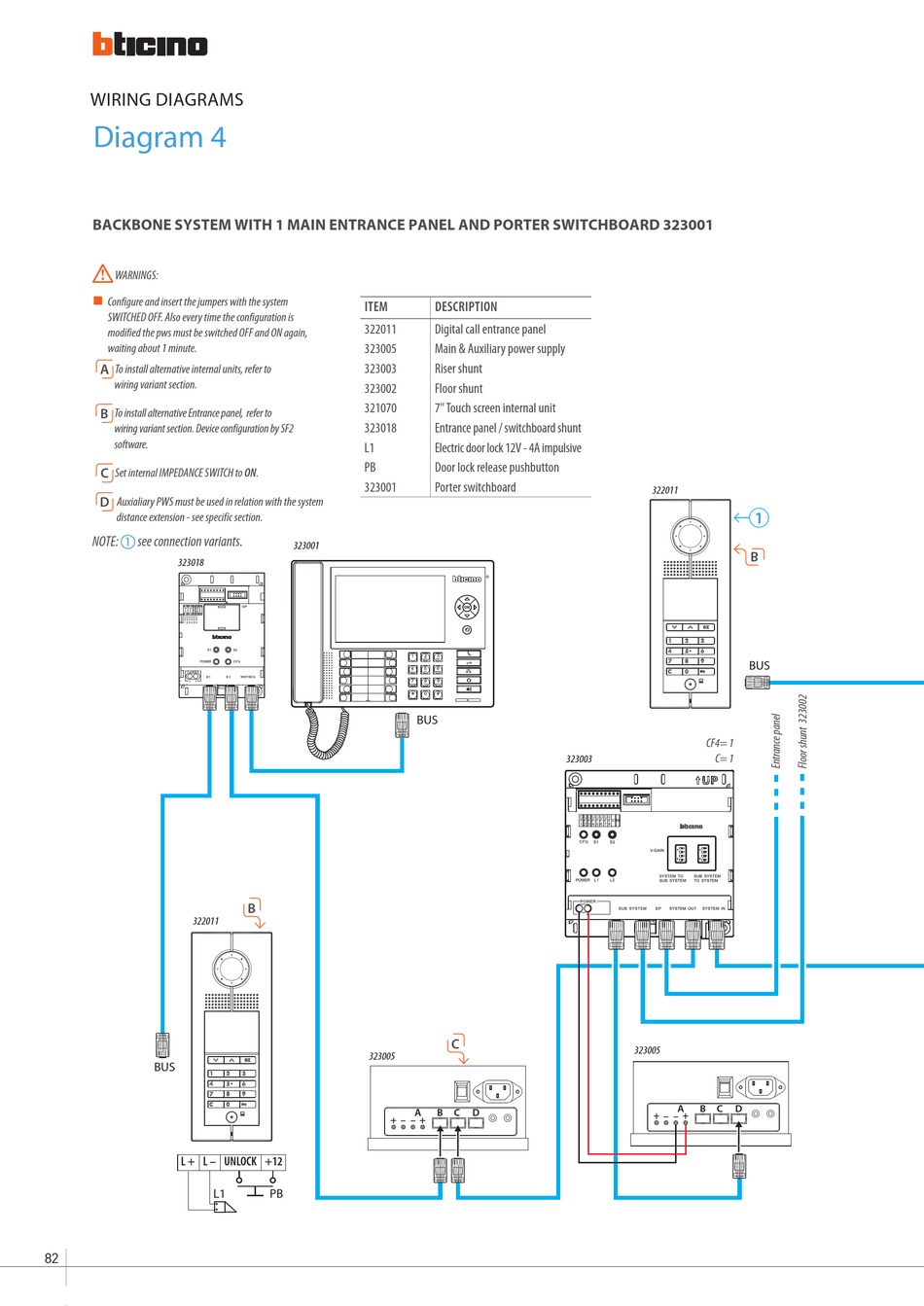

Diagram 4

backbone system witH 1 main entrance panel and porter switcHboard 323001

WARNINGS:
„ „
Configure and insert the jumpers with the system
SWITCHED OFF. Also every time the configuration is
modified the pws must be switched OFF and ON again,
waiting about 1 minute.
A
To install alternative internal units, refer to
wiring variant section.
B
To install alternative Entrance panel, refer to
wiring variant section. Device configuration by SF2
software.
C
Set internal IMPEDANCE SWITCH to ON.
D
Auxialiary PWS must be used in relation with the system
distance extension - see specific section.
NOTE: see connection variants.

323018
322011
BUS
L + L – UNLOCK
L1
82
ITEM
322011
323005
323003
323002
321070
323018
L1
PB
323001
323001
BUS
B
323005
A
+ – – +
+12
PB
DEscrIPTION
Digital call entrance panel
Main & Auxiliary power supply
Riser shunt
Floor shunt
7" Touch screen internal unit
Entrance panel / switchboard shunt
Electric door lock 12V - 4A impulsive
Door lock release pushbutton
Porter switchboard
323003
C
B C D
322011
1
B
BUS
CF4= 1
C= 1
4 4
3 3
2 2
1 1
323005
A B C D
+ – – +
