LEGRAND D45 SYSTEM Installation Manual page 162

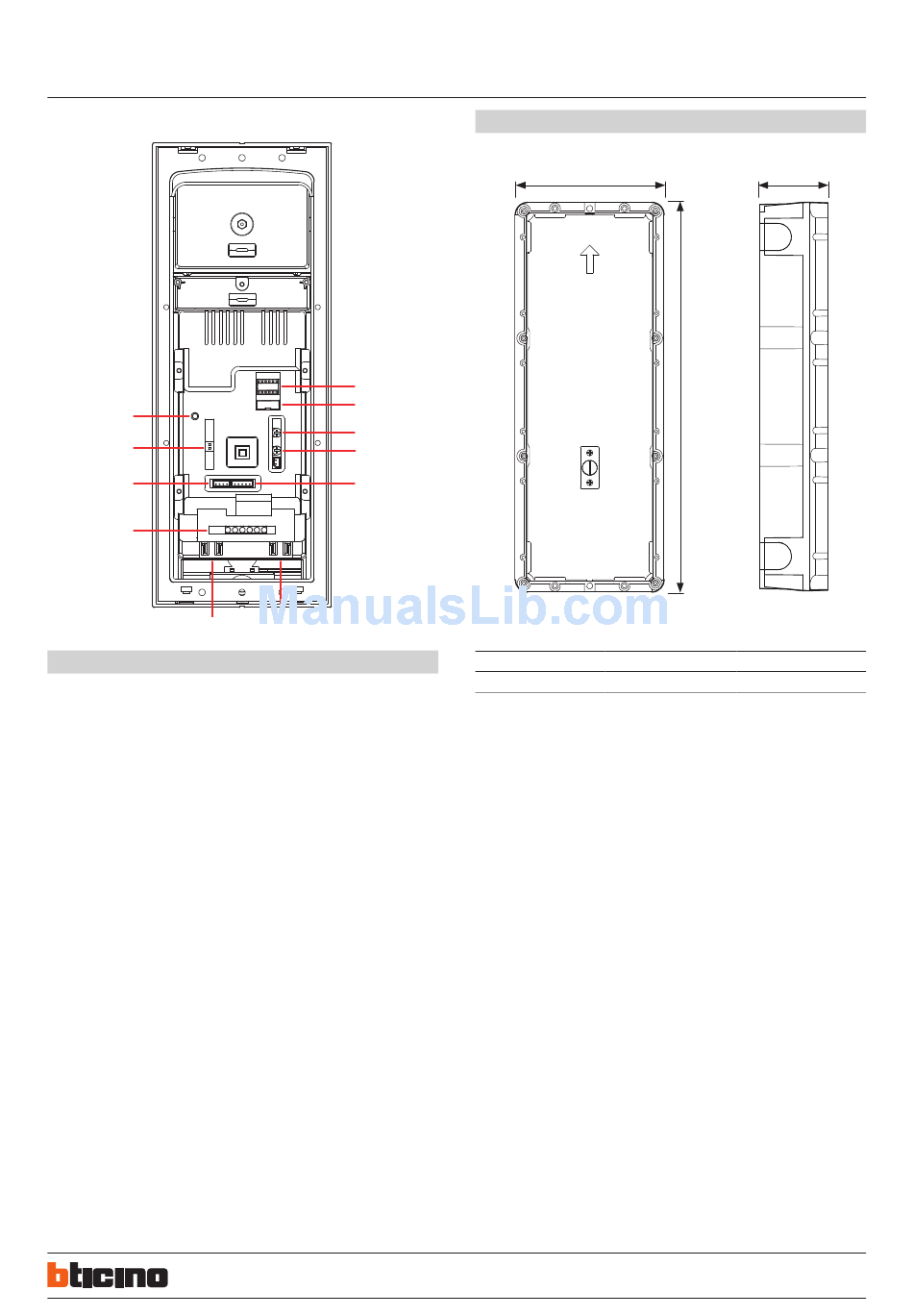

Digital colour entrance panel
with addresses list
Rear view
11
10
9
8
Legend
1. NN RRRR: configurators housing
2. ISP: entrance panel software upgrade connector
3. SPK: loudspeaker volume adjust
4. MIC: microphone volume adjust
5. VIDEO-IN/GND/NC/+12V/LED : entrance panel camera and compensation Lamp
connector
6. RJ45 Targa module connection
7. RJ45 System BUS connection
8. 6 poles connector :
– +12V/GND power supply for access control module (Optional)
– UNLOCK signal output from access control module (Optional)
– DAS electronic lock status signal connector
– LOCK-/LOCK+ electrical door lock connection
9. SPK-OUT/GND/GND/SPK-OUT: entrance panel loudspeaker connections
10. (V-GAIN) video gain setting
11. Password RESET pushbutton
158
1
2
3
4
5
7 6
BT00853-a-en
Flush mounting box - dimensional data
A
A (mm) B (mm)
120 314
03/09/2014
322011
C
B
C (mm)
55
