GENERAL RULES FOR INSTALLATION

Entrance panels and indoor handsets installation

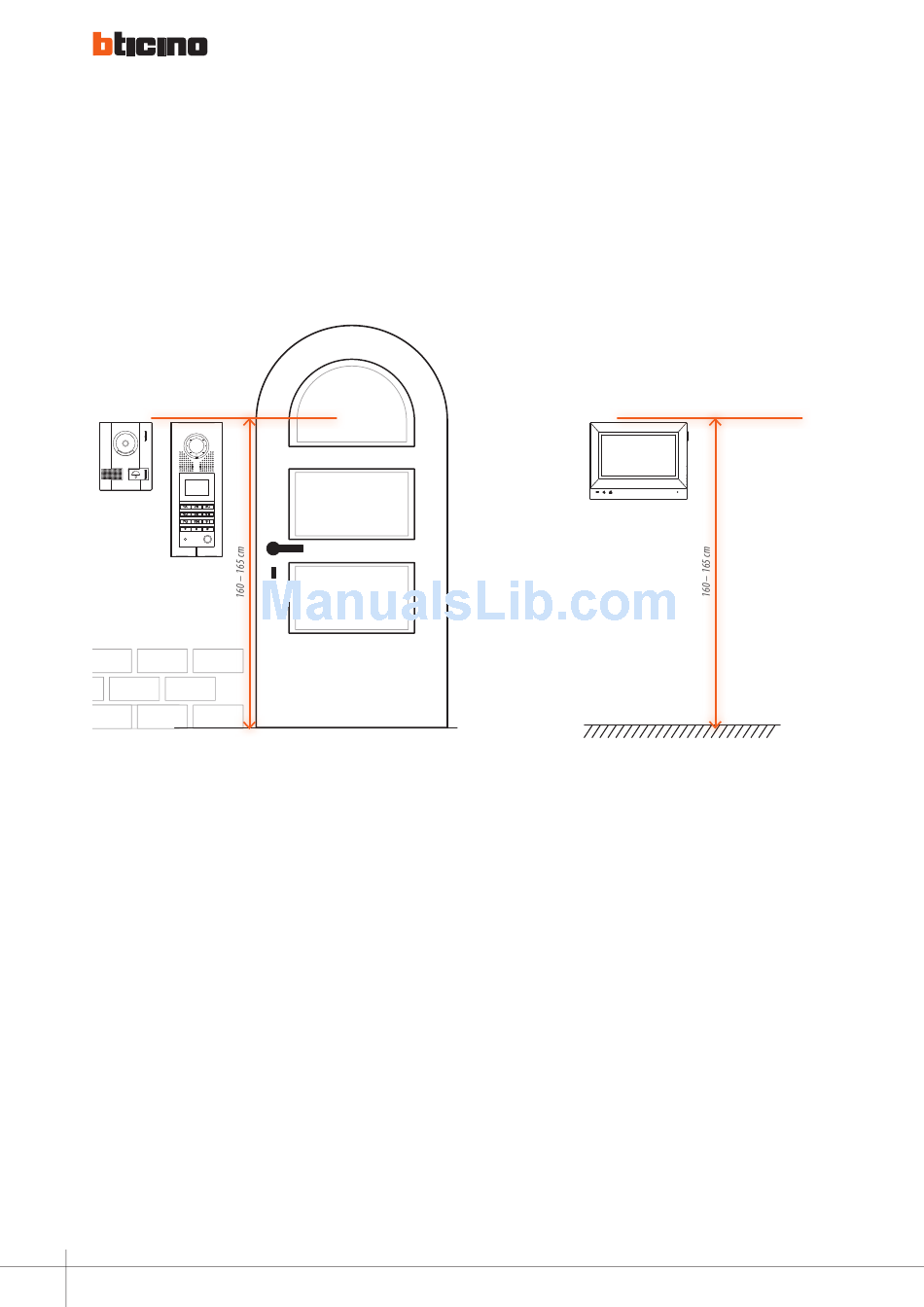

small ep/ep/main ep insTallaTion heighT
Below is the recommended installation height for the
entrance panel:
Note: to allow use by disabled people, the device must be installed at a height
of 120-125 cm.
recommendaTion for The insTallaTion
posiTion of The small ep/ep/main ep
The most important condition to observe in the positioning
of cameras is that they must not be turned towards light
source (for example, lamps, sunlight, reflecting surfaces, etc.).
36
handseT insTallaTion heighT
When installing audio or video internal units, it is advisable
to position the devices as indicated here.
Note: to allow use by disabled people, the device must be installed at a height
of 120-125 cm.
