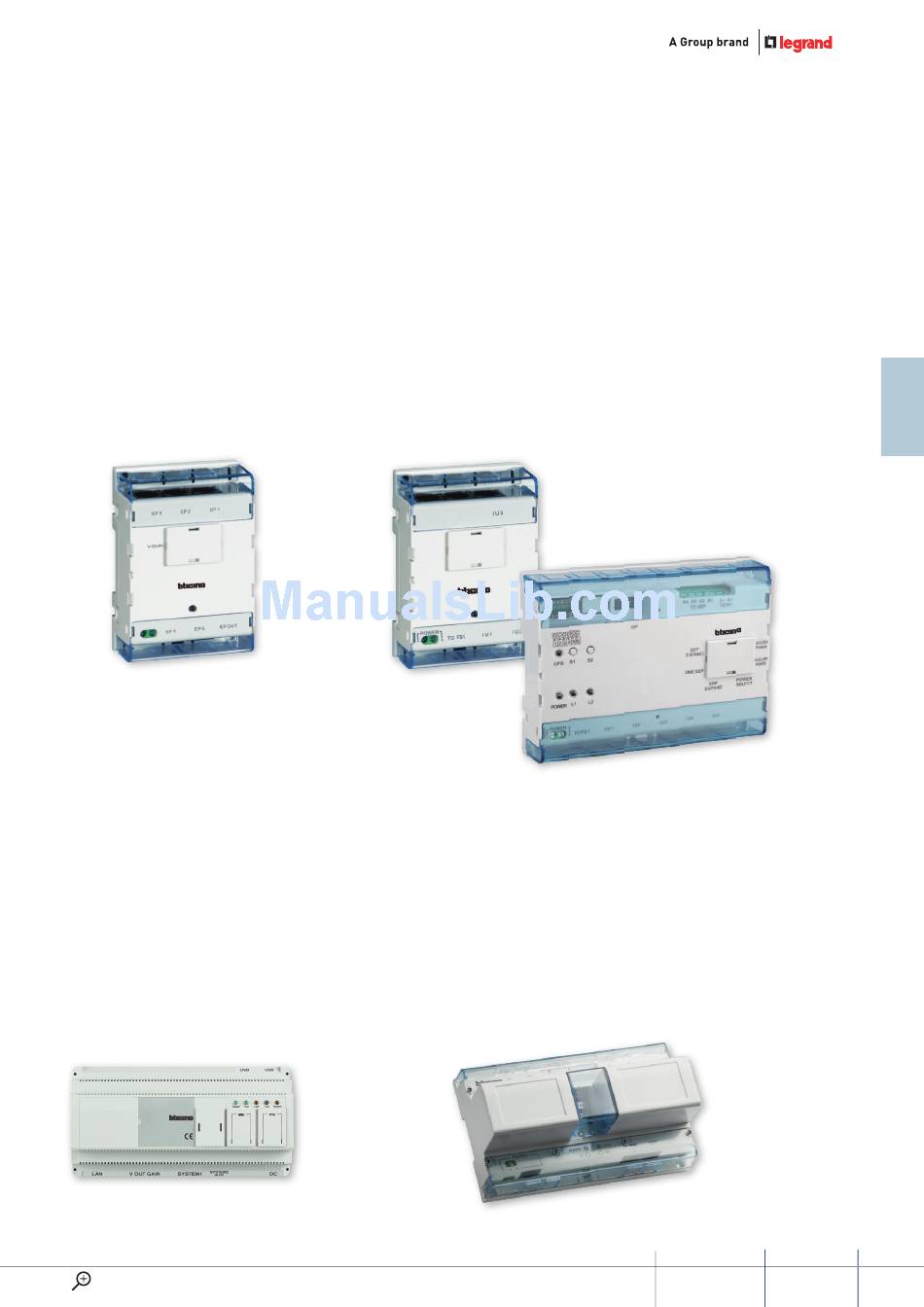

enTranCe PaneLS

Video miXer
The entrance panels video mixer
enables connection of up to
5 entrance panels, providing
management of the calls to the riser
(the first entrance panel from which
the call is made has priority).
323004
d45/iP inTerFaCe
This interface permit to expand the
distances limits of the backbone
and it could be usefull in application
with big distances between entrance
panel and internal unit.
323011
www.lEgranD.com
BaSiC aParTemenT inTerFaCe
aParTemenT inTerFaCe
Basic apartment interface should be installed between Floor shunt and handset.
When one apartment has 2 or 3 handsets, please use this device to extend
interfaces. apartament interface is installed inside the house of the user and is
used for expanding handsets and Small eP. one apartment interface can connect
5 handsets and one Small eP, performing the necessary functions for calling the
handsets and calling and monitoring Small eP.
323008
diSTriCT generaTor
is the district hub that can be connected with 4 district riser shunts, 1 wall eP
connector, 1 Switchboard connector and 1 main system power connector. it's
used to create large networks. Can be connected in cascade to extend to 16
district branches. The maximum level of cascade connection is 1. When installed
as part of the system, the device controls and changes video channel, and
provides amplifying compensation for video signal. The video gains of each riser
shunt district branch can be set separately.
323013
Basic apartment
interface
323009
D45 SyStEm
Apartment
interface
GUIDE 11
