Power supply
One different device configuration way available :
WAY 1) Configuration settings by inserting phisical configurators
Configuration
Configuration settings by inserting phisical configurators - WAY 1:

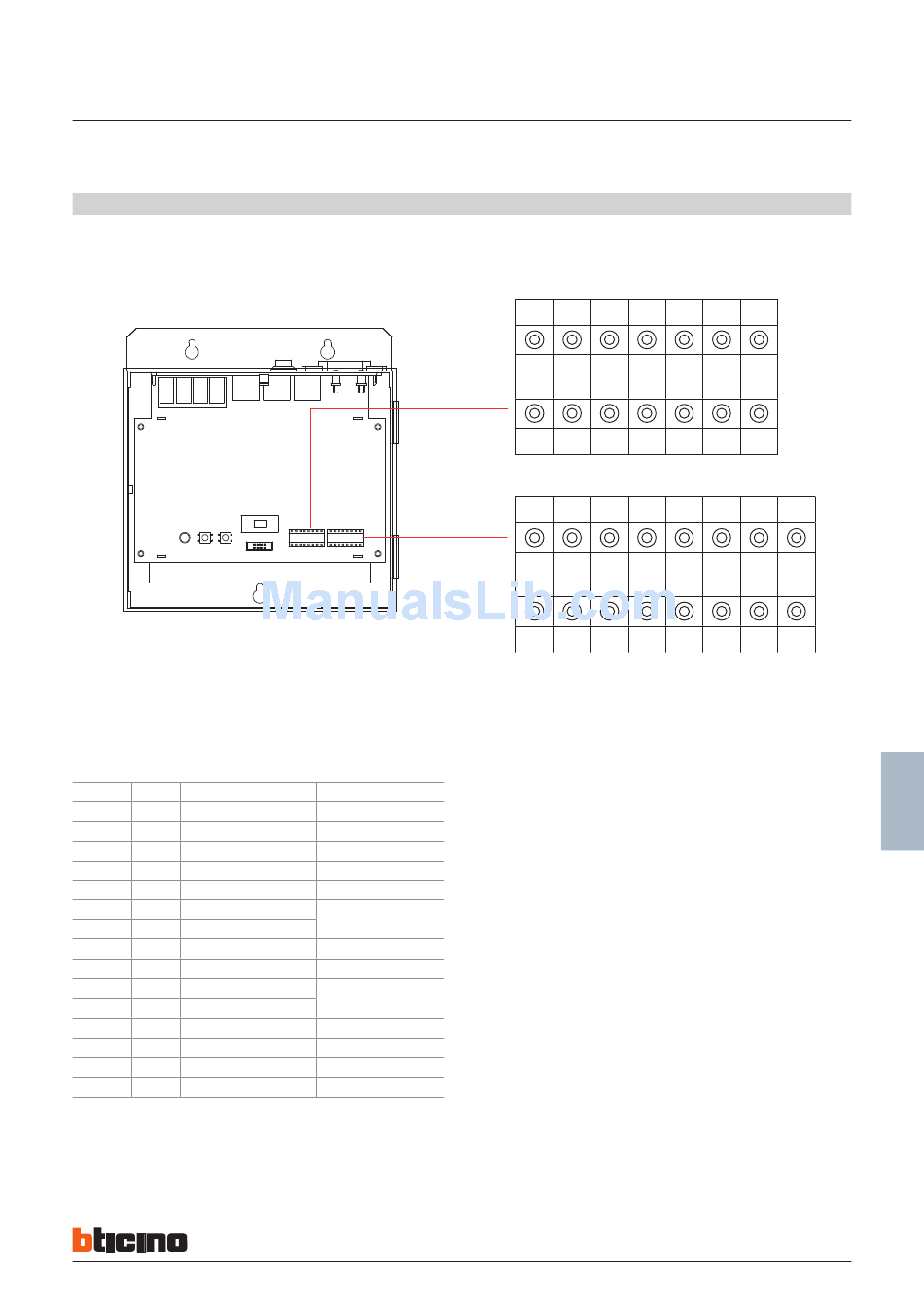

Physical connection for the configurators to their sockets
Example (A)
Example (A)
This riser has 20 floors, and each floor has 4 IUs. This power supply manages 1-2 floor. If
need open smart power function and power management function, the power supply
address is 12, max current of alarm sensor is 300 mA. System use MODE 1 configuration
method. Power supply configuration should be as following:
POSITION MODE 1 vAlUE FOr CONFIgUrATOr rEMArkS
CF1 N 0
CF2 N 1
CF3
N 2
CF4 FF Min 0
CF5
FF Min 1
CF6 #II
CF7 #II
CF8 FF Max 0
CF9 FF Max 2
CF10 CF10
CF11 CF11
CF12 Type 1
CF13 ASR 0
CF14 M 0
CF15
LE 0
Default is 4 apartments.
0 means 4 apartments0.
For mode 1 and mode 2, CF10 and
CF11 do not apply
BT00453-b-en 13/05/2013
N N N CF4 CF5
FF FF
N N N
min min
0 1 2 0 1
CF8 CF9 CF10 CF11 TYP ASR
FF FF
TYP ASR
max max
0 2 1
323005
CF6 CF7
#I #I
M LE
M LE
0 0 0
