LEGRAND D45 SYSTEM Installation Manual page 219

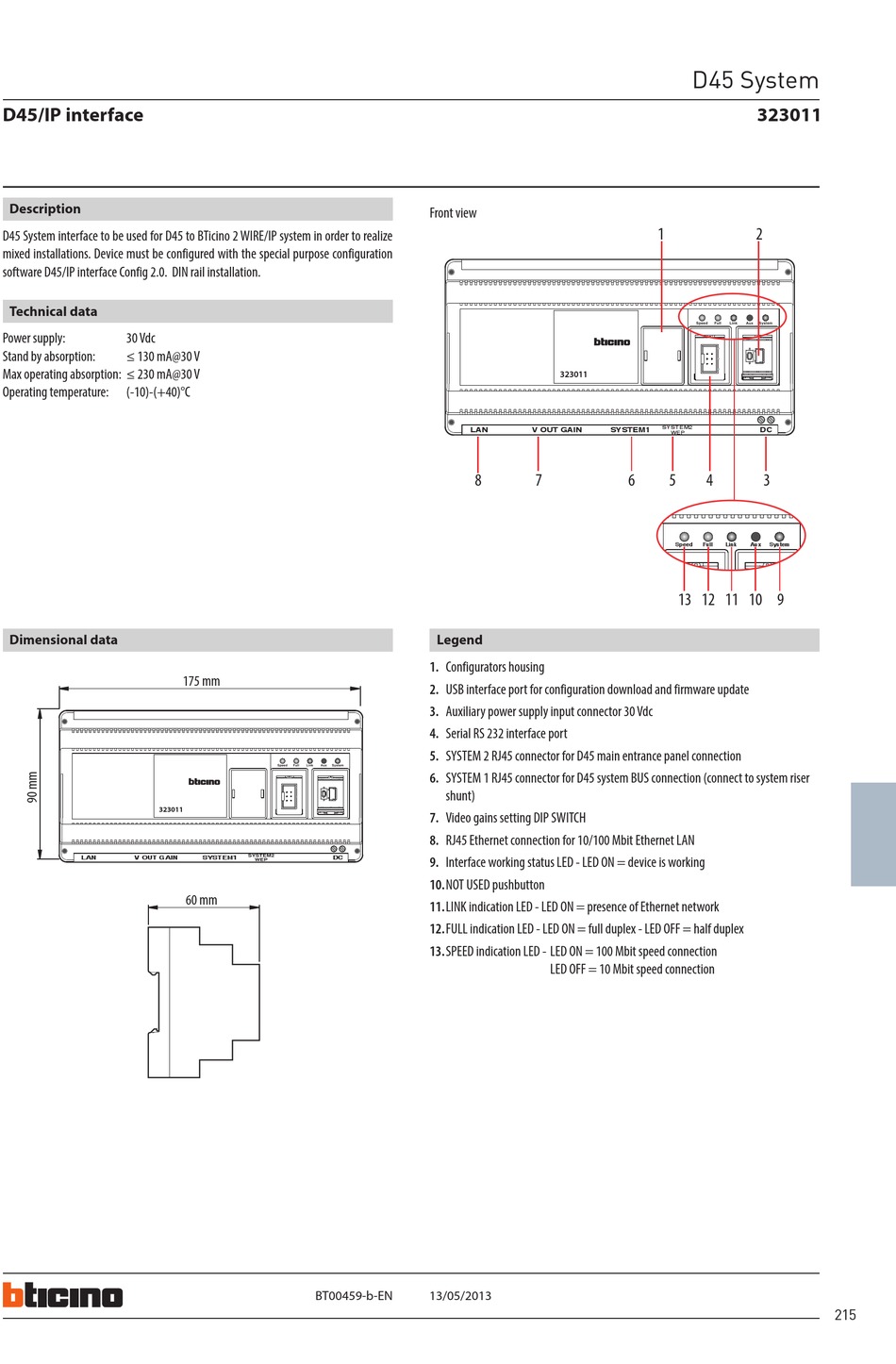

D45/IP interface
Description
D45 System interface to be used for D45 to BTicino 2 WIRE/IP system in order to realize
mixed installations. Device must be configured with the special purpose configuration
software D45/IP interface Config 2.0. DIN rail installation.
Technical data
Power supply:
Stand by absorption:
Max operating absorption: ≤ 230 mA@30 V
Operating temperature:
Dimensional data
LAN
Speed Full Link Aux System
23011
SYSTEM2
AIN SYSTEM1 DC
WEP
30 Vdc
≤ 130 mA@30 V
(-10)-(+40)°C
175 mm
Speed Full Link
323011
SYSTEM2
V OUT GAIN SYSTEM1
WEP
60 mm
Front view
LAN
8
323011
Legend
1. Configurators housing
2. USB interface port for configuration download and firmware update
LAN V OUT GAIN
3. Auxiliary power supply input connector 30 Vdc
4. Serial RS 232 interface port
5. SYSTEM 2 RJ45 connector for D45 main entrance panel connection
Aux System
6. SYSTEM 1 RJ45 connector for D45 system BUS connection (connect to system riser
shunt)
7. Video gains setting DIP SWITCH
8. RJ45 Ethernet connection for 10/100 Mbit Ethernet LAN
DC 9. Interface working status LED - LED ON = device is working
10. NOT USED pushbutton
11. LINK indication LED - LED ON = presence of Ethernet network
12. FULL indication LED - LED ON = full duplex - LED OFF = half duplex
13. SPEED indication LED - LED ON = 100 Mbit speed connection
BT00459-b-en 13/05/2013
D45 System
1
Speed Full
323011
SYSTEM2
V OUT GAIN SYSTEM1
WEP
7 6 5 4
Speed Full
13 12 11 10 9
SYSTEM2
SYSTEM1
WEP
LED OFF = 10 Mbit speed connection
323011
2
Link Aux System
DC
3
Link Aux System
DC
215
