LEGRAND D45 SYSTEM Installation Manual page 195

Colour 7" handsfree indoor handset
Configuration settings by inserting phisical configurators - WAY 2:

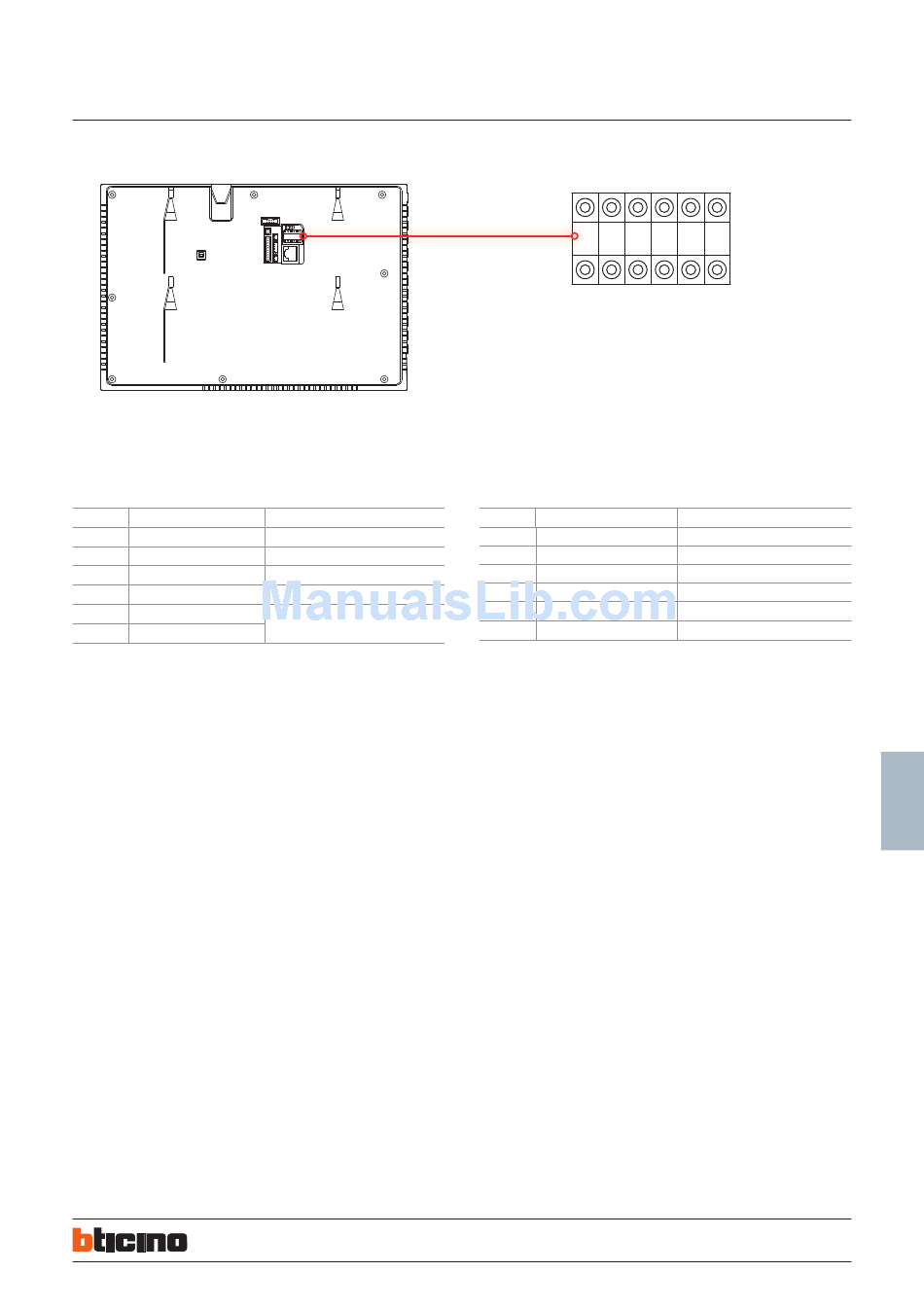

Physical connection for their sockets:
Example (A):
The number of handsets is 1204, each floor has 4 handsets, the system configuration
mode is Mode 1, the handset configuration should be as follows
POSITION CONFIGURATION VALUE
F 1
F 2
I 0
I 4
#I
#I
REMARKS
It is ok not to insert configurator 0
Because the default value of #II is 4, no
configurator is needed
BT00472-b-en
F F I
Example (B):
The number of handsets is 1206, each floor has 8 handsets. System configuration mode
2 is used. The handset configuration should be as follows:
POSITION VALUE
F 1
F 2
I 0
I 6
#I 0
#I 8
03/06/2013
322050
I #I #I
REMARKS
It is ok not to insert configurator 0
It is ok not to insert configurator 0
191
