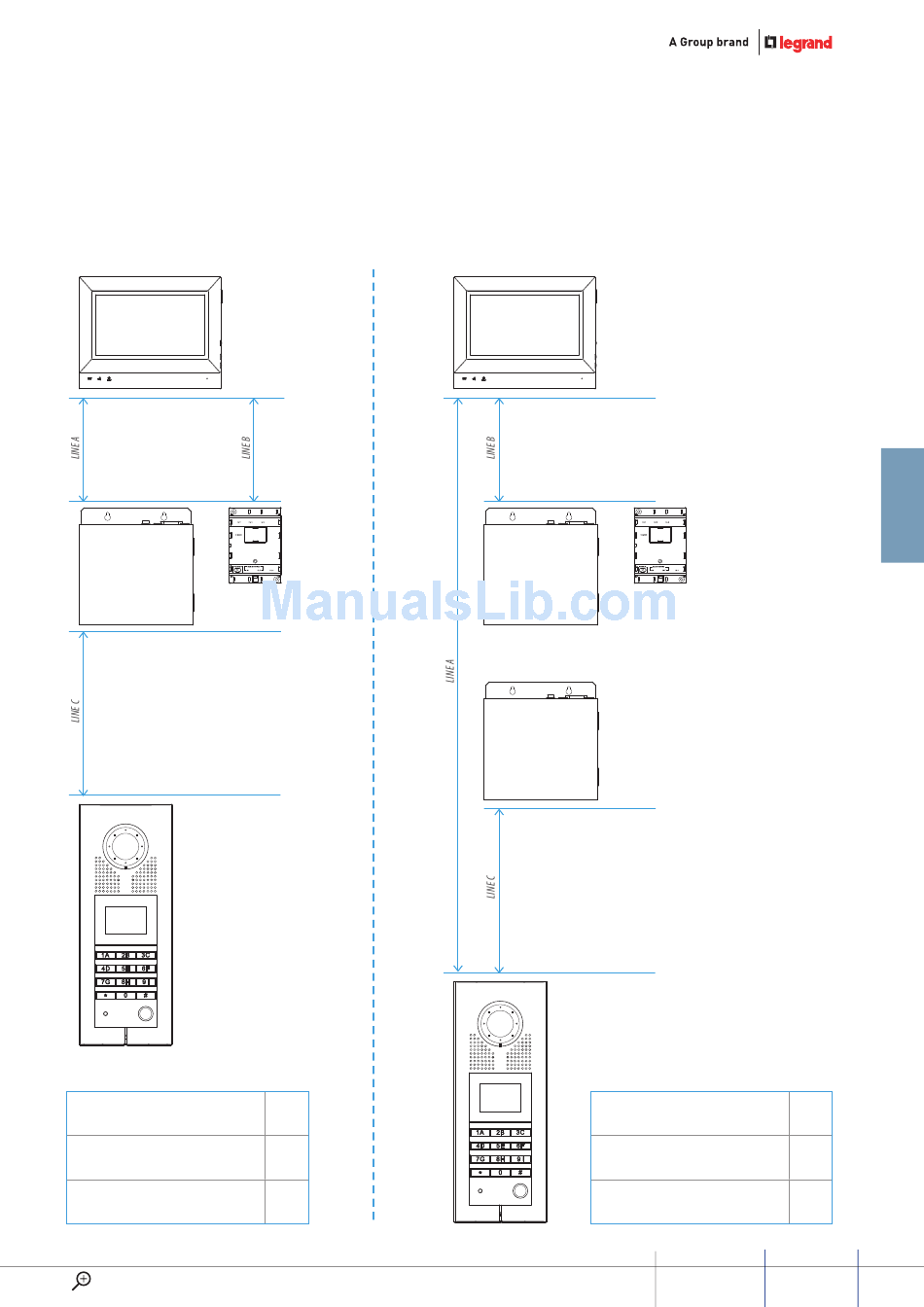

colour sysTem - single riser
Furthest
internal unit
Main power
supply - 323005
Entrance
panel
Max. distance line A
Furthest internal unit - Power supply
Max. distance line B
Internal unit - Floor shunt
Max. distance line C
Power supply - Entrance panel
WWW.LEGRAND.COM
Floor shunt
323002
50 m
50 m
70 m
Furthest
internal unit
Additional power supply of
floor shunt 323010
Power supply
323005
Entrance
panel
Max. distance line A
Furthest internal unit - Entrance panel
Max. distance line B
Internal unit - Power suplly of Floor shunt
Max. distance line C
Power supply - Entrance panel
Floor shunt
323002
1 Km
50 m
70 m
D45 SyStEm
GUIDE
69
