Riser shunt
Example (B):
The number of riser shunts is 5, each riser has 25 floors, and each floor has 8 handsets.
The Switchboard that can be called directly by this riser is no. 2 System configuration
mode 2 is used. The riser shunt configuration should be as follows:
POSITION MODE 1 vAlUE FOr CONFIg. rEMArkS
CF1 N 0
CF2 N 0
CF3 N 0
CF4 N 5
CF5 #F 2
CF6 #F 5
CF7 #I 0
CF8 #I 8
C C 0
M M 0
cF1 cF2 cF3 cF4 cF5 cF6 cF7 cF8 c
N N N N #F #F #I #I
0 0 0 5
200
It is ok not to insert configurator 0
It is ok not to insert configurator 0
It is ok not to insert configurator 0
It is ok not to insert configurator 0
It is ok not to insert configurator 0
It is ok not to insert configurator 0
m
c m
2 2 2 8 0 0
BT00451-b-en

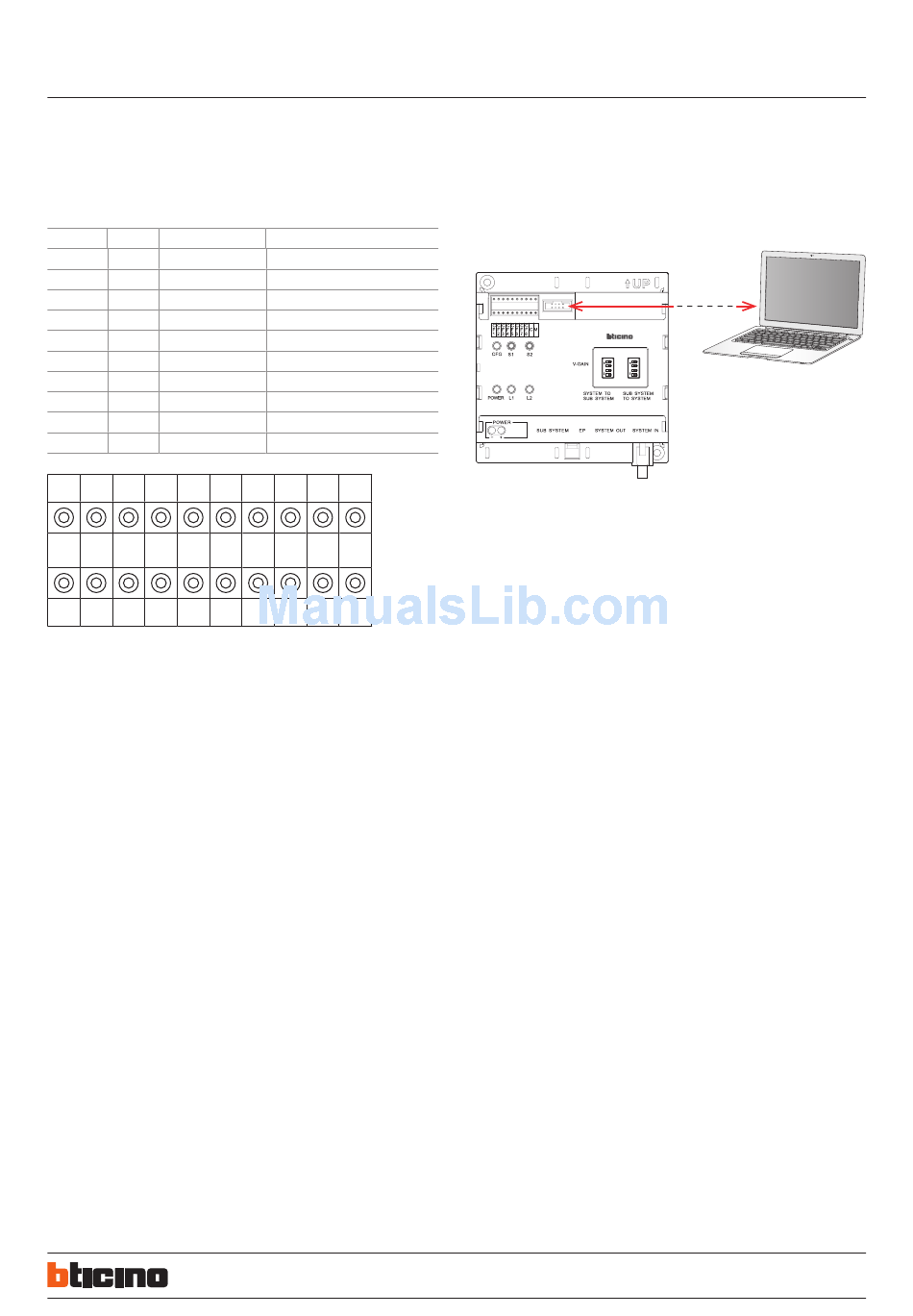

Configuration by using SF2 Software and PC connection - WAY2:
This is the enhanced way to download the device configuration to floor shunt device
previously created by using SF2 configuration software and a personal computer. To
transfer use the configurator hardware tool 323020 serial interface.
4 4
3 3
2 2
1 1
WArNINg: in order for the communication to take place, device must be powered and
not physically configured.
For configuration MODE 1 and MODE 2, if riser shunt chooses configuration by
configurator, following conditions must be met:
Number of all the riser shunt in the system should be running number (sequential).
Can not miss any one. It is a must to start from 1.
Riser shunt software version on or above V.2 added riser EP offset configuration item.
This item should be downloaded by 323020 (version on V0.7 or later version have this
function). This added configuration is for compatibility between D45 system and BT
two-wire system. If the projects don't need these two system compatibility, you don't
need to configurate this item.
EP range of each cell in D45 system is 1 to 80. Main EP range is also 1 to 80, that means
whole system main EP number QTY achieve 80, and riser EP number is 80*X (X means
cell QTY).
But after D45 and BT two wire system compatibility, each riser EP and main EP can't
separately have number 1 to 80. Main EP QTY and all riser EP total QTY can't exceed 80,
that means whole system riser EP QTY+main EP QTY ≤ 80.
Example
If D45 system should be compatible with BT system, there are two D45/IP interfaces
used in system. First D45/IP interface-1 connect 2 main EP and 3 cells (Cell 1,2,3), each
cell has one EP; second D45/IP interface-2 connect 0 main EP and 3 cells (cell 4,5,6), cell
4 and cell 6 connect 1 EP each, cell 5 connect 2 EP.
