Basic apartment interface
Description
D45 System interface device to be used when the apartment has 2 or 3 handsets.
The interface must be installed between floor shunt 323002 and the indoor handsets.
DIN RAIL installation.
Technical data
Power supply : 30 Vdc
Stand by current absorption: ≤ 40 mA @ 30 V
Max. operating current absorption: ≤ 140 mA @ 30 V
Stand by power consumption : 1.2 W
Operating power consumption : 4.2 W
Operating temperature: (-10) – (+40)°C

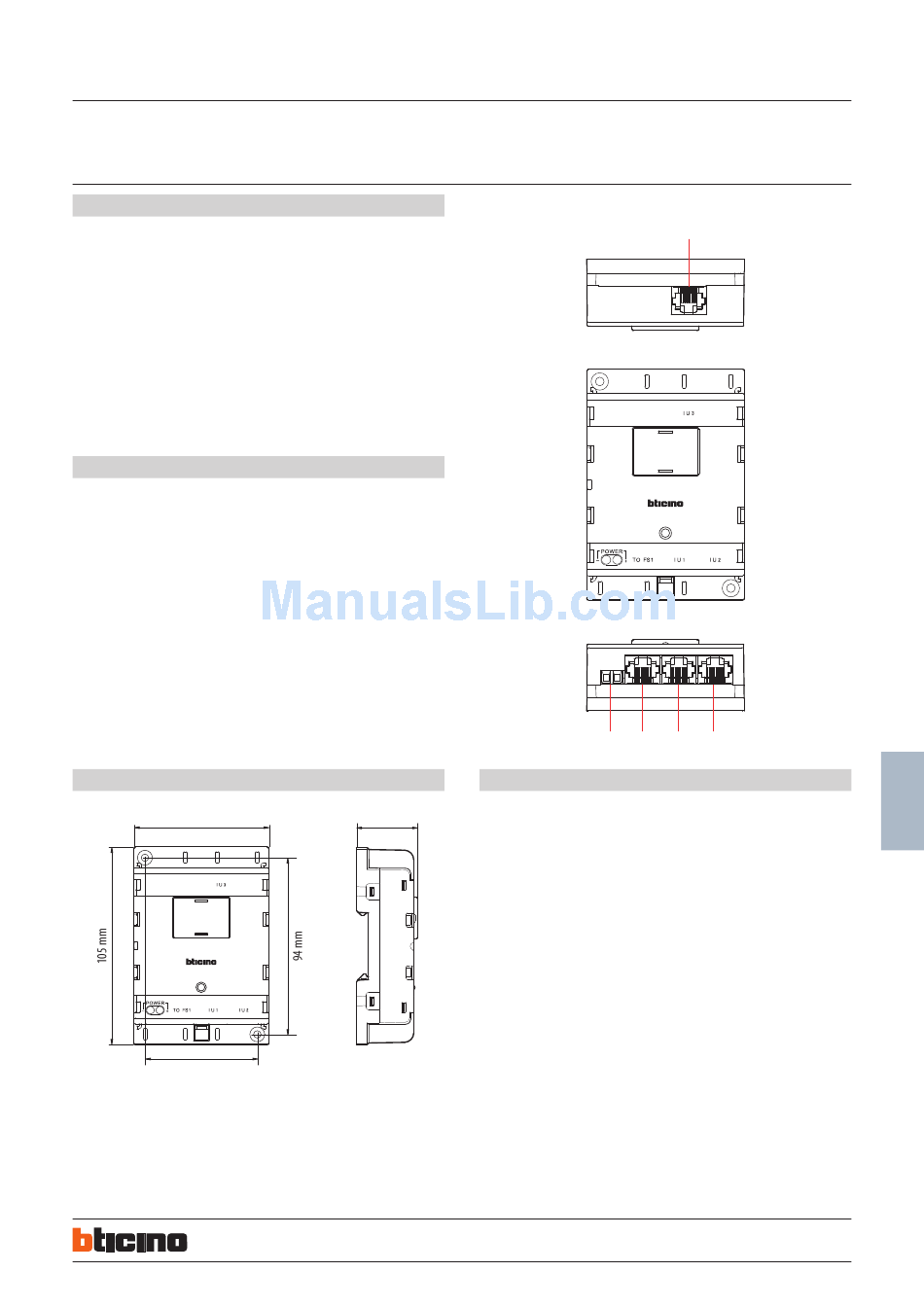

Dimensional data
72 mm
59,5 mm
Upper view
Front view
Lower view
Legend
1. RJ45 Internal unit handset 3 connection
33 mm
2. RJ45 Internal unit handset 2 connection
3. RJ45 Internal unit handset 1 connection
4. RJ45 System BUS connector - to floor shunt device
5. Auxiliary power supply input connector (30 V)
BT00455-b-en 13/05/2013
D45 System
1
POWER
- +
POWER
-
+
POWER
- +
5 4 3 2
323008
