LEGRAND D45 SYSTEM Installation Manual page 157

Digital colour entrance panel
Three different device configuration ways available:
WAY 1) Configuration settings by device keyboard
WAY 2) Configuration settings by inserting phisical configurators
WAY 3) Configuration by using SF2 Software and PC connection
Configuration settings by device keyboard - WAY 1:
Press the # key for about 5 seconds. Input the master password as per the prompt on
the display and press the # key for confirmation. When you get to the setting status,
you can enter the following settings as per the prompt: (Press on the 0 key to scroll
through the pages).
1.
Select 1 and change the master password. The default master password is 200000.
If you want to change it, you can input your desired password as per the prompt
and press the # key for confirmation. If two inputs are identical, then the master
password is successfully changed. If not, it will indicate an error and ask you to re-
enter it. Note that only the administrator is entitled to keep or modify the master
password.
2.
Select 2 to set the signal types to open/close electric door locks. As per the interface
prompt, we can press the 0 or 1 key to set as either often-closed or often-opened
type.
3.
Select 3 to complete the setting of the anti-removal alarm.
This function must be used together with the anti-removal alarm pushbutton. By
selecting this function and pressing the anti-removal alarm button the entrance panel
automatically send a removal alarm. If a wrong alarm is sent due to A wrong settings
during installation, switch the power off and press the alarm button. Then switch
the power on again to cancel the alarm settings. When the entrance panel has been
installed, reopen the anti-removal alarm function.
4.
Select 4 to complete the mode setting of the room number.
Eight options are available for your selections. When using the entrance panel as the
(Riser EP or secondary EP), the first and the second mode can be selected. When using
it as the (Backbone EP or main EP), the 3rd, 4th 5th, 6th, 7th and 8th mode can be
selected, depending on the actual situations. The default factory setting is the 1st mode.

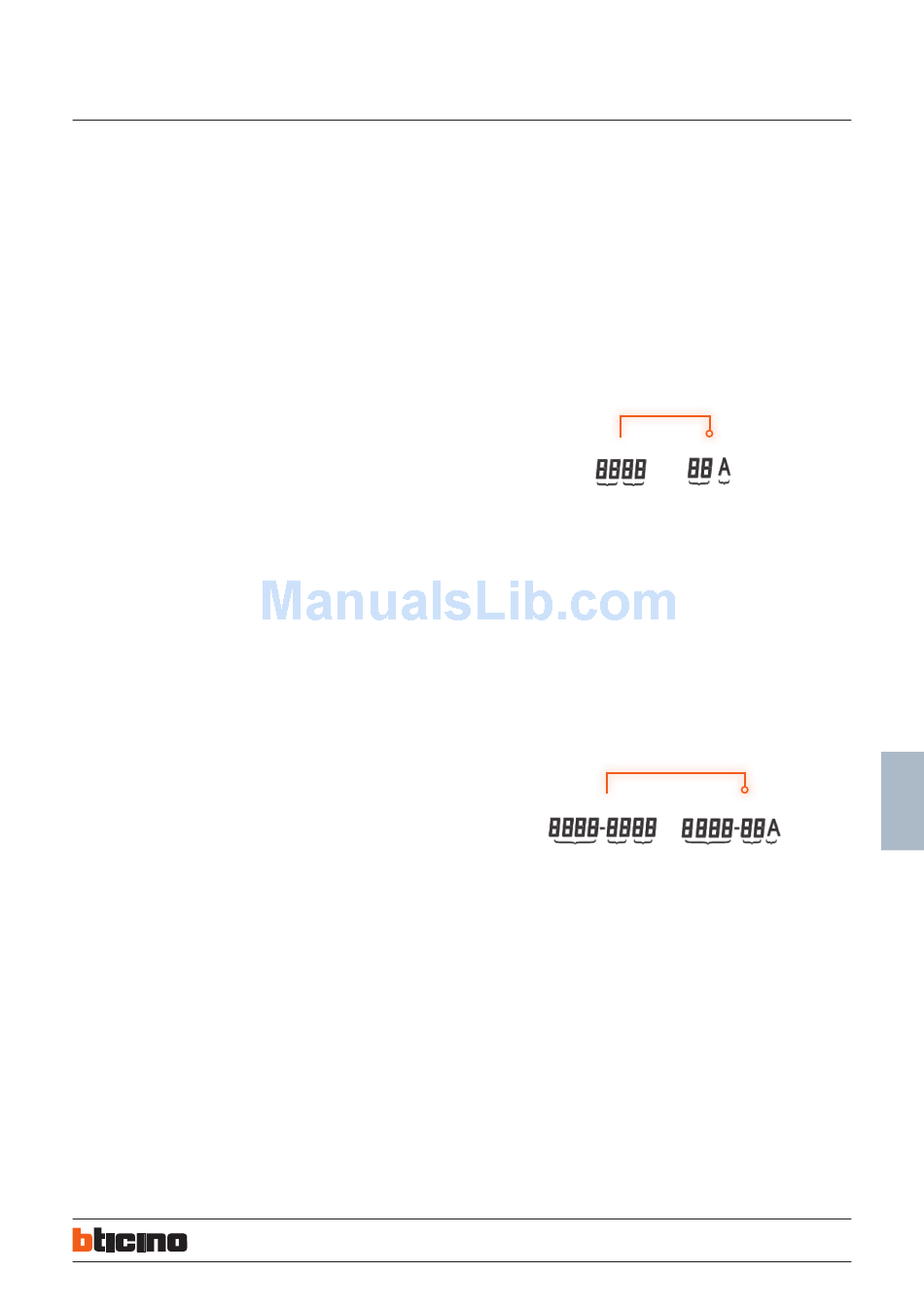

Mode 1: 8888
88 Floor number
88 Room number
When used as (Backbone EP or main EP):
Mode 3 and Mode 4: these are commonly used modes. When the riser number (building
number and unit number) plus floor number plus room number is not above 8 digits,
one of them can be selected. Now the riser number actually includes the building
number. Take Unit 1 of Building 1 for example, the riser number will be 0101.
Mode 3: 8888-8888
8888 Unit number
88 Floor number
88 Room number
BT00466-b-en 30/05/2013
RiSeR MoDe
Mode 1: 8888 Mode 2: 88A
F R F R
Mode 2: 88A
88 Floor number
A Room number
BACkBone eP oR MAin eP
Mode 4: 8888-88A
Mode 3: 8888-88 88
Mode 4: 8888-88A 8888
Unit number
88 Floor number
A Room number
