LEGRAND D45 SYSTEM Installation Manual page 184

Additional 32 call pushbuttons panel
Description
D45 System additional 32 pushbuttons entrance panel. Equipped with 32 backlighted
call pushbuttons and possibility to direct call to the porter switchboard. Setup key
functions via programming,phisical configurators insertion or through the dedicated
software supplied with the product. Flush mounting installation with dedicated box
(supplied with the product).
Related items
322031 20 pushbuttons colour video entrance panel
Technical data
Power supply:
Stand by absorption:
Max. operating absorption:
Operating temperature:
Protection index:
Protection index against mechanical impact: IK07

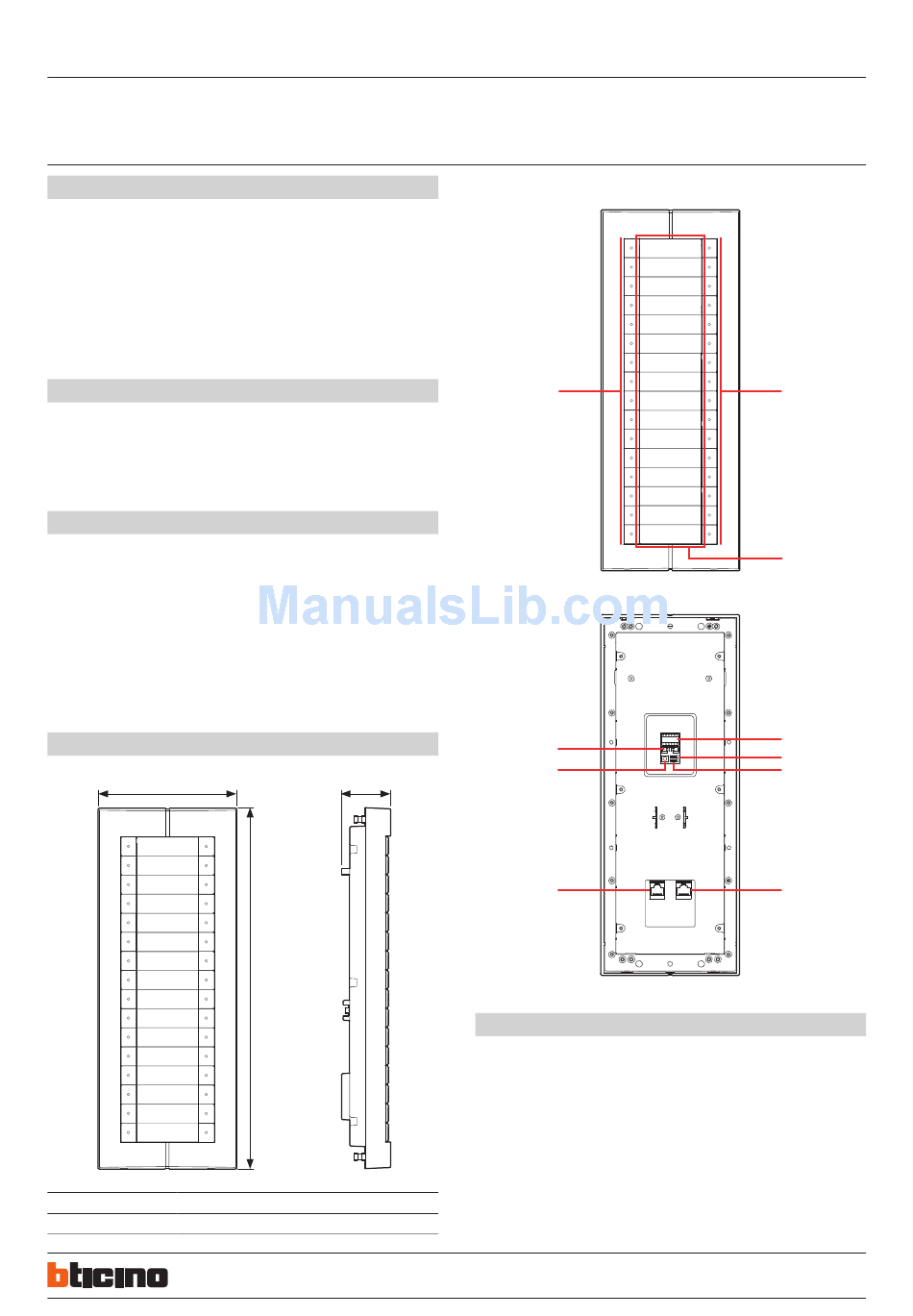

Dimensional data
A
A (mm) B (mm)
125 325
180
30 Vdc
≤ 5 mA @ 30 V
≤ 28 mA @ 30 V
(-25) – (+55) °C
IP54
C
B
C (mm)
44,5
BT00768-a-en
Front view
1
Rear view
9
8
7
Legend
1. Call pushbuttons
2. Backlighted nameplates
3. Configurators socket
4. Mode jumper socket
5. Status jumper socket
6. RJ45 main entrance panel connection
7. RJ45 additional pushbuttons panel connection
8. Room number reset pushbutton
9. ISP : device software upgrade connector
03/06/2013
D45 System
322033
1
2
3
4
5
6
