LEGRAND D45 SYSTEM Installation Manual page 125

7" touch screen handsfree internal unit
Description
D45 System 7" touch screen video internal unit. Complete door entry functions with
alarm managements. International standard SOS pushbutton, intercom function,
programming device touch screen functions. Digital photo frame and camera functions.
Direct call to switchboard function. 6 different default selectable ringtones (can be
changed with your favourite music). Slot for SD CARD. Surge protection. Wall mount
installation.
Technical data
Power supply : 18-30 Vdc
Stand by absorption: ≤ 100 mA @ 30 V
Max. operating absorption: ≤ 200 mA @ 30 V
Operating temperature: (-10)-(+40)°C
LCD display size : 7"
LCD display resolution : 800 x 480
Supported SD CARD : 32 Gb maximum
Supported music files : mp3, wav, wma
Dimensional data
A
B
A (mm) B (mm) C (mm)
198 157 27
Dimensional data
Technical data
Legend
Specific wiring diagrams
WWW.LEGRAND.COM
D45 System
Front & side views
10
1
2
3 4 5
Rear view
11 12 13
14
15
16
17
18 19
Legend
1. Mini USB port
2. SD CARD socket
C
3. Message information LED
4. Connection status LED
5. Alarm LED
6. Microphone
7. Door lock release pushbutton
8. Communication pushbutton
9. SOS pushbutton
10. 7" LCD touch screen display
11. Download connector
12. Configurator housing
13. Local power connector
14. Anti removal alarm sensor connector
15. SOS alarm connector
16. SEP entrance panel connector
17. Alarm sensor connector
18. Unlock device connector
19. RJ45 System BUS connector
20. Anti removal switch
21. Loudspeaker
BT00851-a-EN 03/09/2014
321070
9
8
7
6
20 21
Digital colour entrance panel
Configuration
Configuration by using SF2 Software and PC connection - WAY 3 :
This is the enhanced way to download the device configuration to entrance panel previ-
ously created by using SF2 configuration software and a personal computer. To transfer
use the configuration hardware tool 323020 serial interface
1
323020
configuration
tool
WARNING : in order for the communication to take place, the EP must be powered and
not physically configured
Wiring diagrams - Door lock relay connection
322010
L+ L-
N.B.: Cable size 1 mm and max distance 2 meters
2
BT00466-b-EN

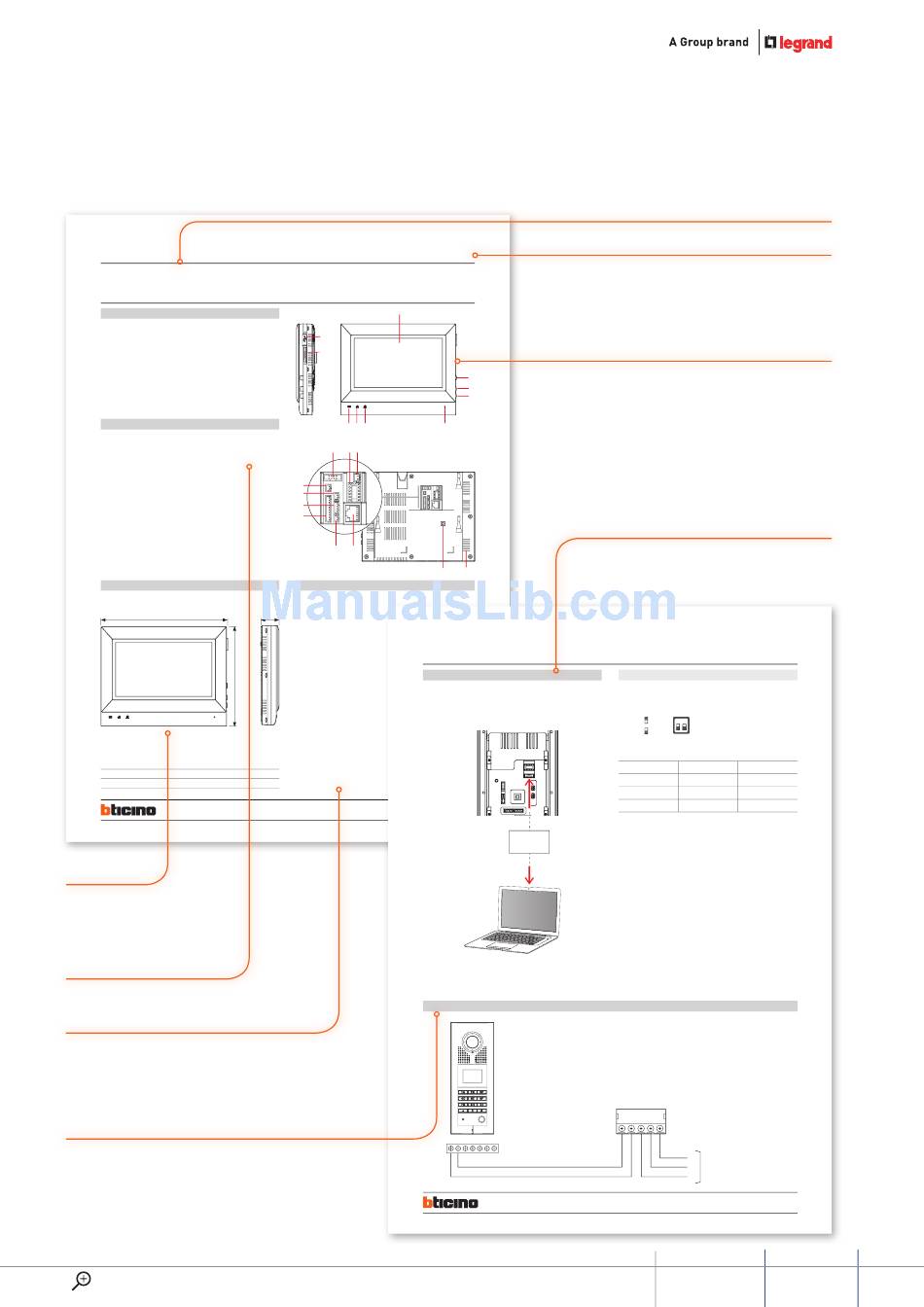

Description
System the device belongs to
Device drawing
Configuration
322010
Video gain setting
The entrance panel has two video compensation gears. By setting different V-GAIN
gears, we can let the video signal output adapt to different transmission distance. See
followings:
ON
1 2
OFF
DIP SWITCH SETTINGS FOR B/W. AND COLOUR SYSTEM
Distance 1 2
0 –300 m OFF OFF
300 – 700 m ON OFF
700 – 1000 m ON ON
346250
S- S+ C NC NO
NO 8A cosϕ = 1 24 Vac/24 Vdc
4A cosϕ = 0.7 24 Vac
NC
C 3A cosϕ = 0.4 24 Vac
30/05/2013
