GENERAL FEATURES

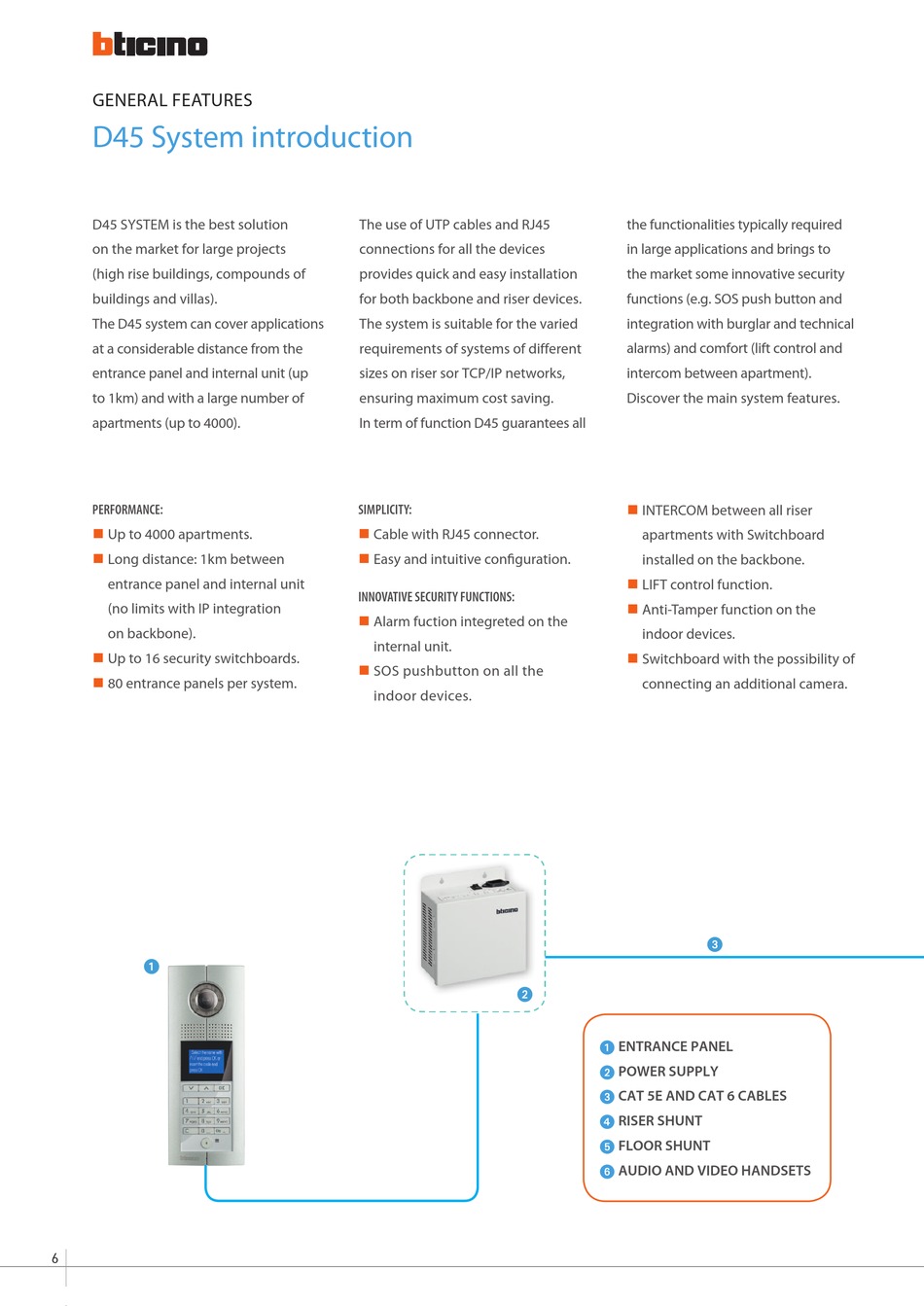

d45 System introduction

d45 SYSTem is the best solution
on the market for large projects
(high rise buildings, compounds of
buildings and villas).
The d45 system can cover applications
at a considerable distance from the
entrance panel and internal unit (up
to 1km) and with a large number of
apartments (up to 4000).
PERFORMANCE:
„ up to 4000 apartments.
„
Long distance: 1km between
„
„
entrance panel and internal unit
(no limits with iP integration
on backbone).
„ up to 16 security switchboards.
„
„ 80 entrance panels per system.
„
1
6
The use of uTP cables and rJ45
connections for all the devices
provides quick and easy installation
for both backbone and riser devices.
The system is suitable for the varied
requirements of systems of different
sizes on riser sor TCP/iP networks,
ensuring maximum cost saving.
in term of function d45 guarantees all
SIMPLICITY:
„ Cable with rJ45 connector.
„
easy and intuitive configuration.
„
„
INNOVATIVE SECURITY FUNCTIONS:
„ alarm fuction integreted on the
„
internal unit.
„ SoS pushbutton on all the
„
indoor devices.
2
the functionalities typically required
in large applications and brings to
the market some innovative security
functions (e.g. SoS push button and
integration with burglar and technical
alarms) and comfort (lift control and
intercom between apartment).
discover the main system features.
„ inTerCom between all riser
„
apartments with Switchboard
installed on the backbone.
„ LiFT control function.
„
„ anti-Tamper function on the
„
indoor devices.
„ Switchboard with the possibility of
„
connecting an additional camera.
3
ENTRANCE PANEL
1
POWER SUPPLY
2
CAT 5E AND CAT 6 CABLES
3
RISER SHUNT
4
FLOOR SHUNT
5
AUDIO AND VIDEO HANDSETS
6
