LEGRAND D45 SYSTEM Installation Manual page 87

321070
0 1 0 6 0 8
F F I I #I #I
A
321070
0 1 0 5 0 8
F F I I #I #I
A
WARNINGS:
„ „
Configure and insert the jumpers with the system
SWITCHED OFF. Also every time the configuration is
modified the pws must be switched OFF and ON again,
waiting about 1 minute.
A
To install alternative internal units, refer to
wiring variant section.
B
To install alternative Entrance panel, refer to
wiring variant section.
Device configuration by SF2 software.
C
Set internal IMPEDANCE SWITCH to ON.
WWW.LEGRAND.COM

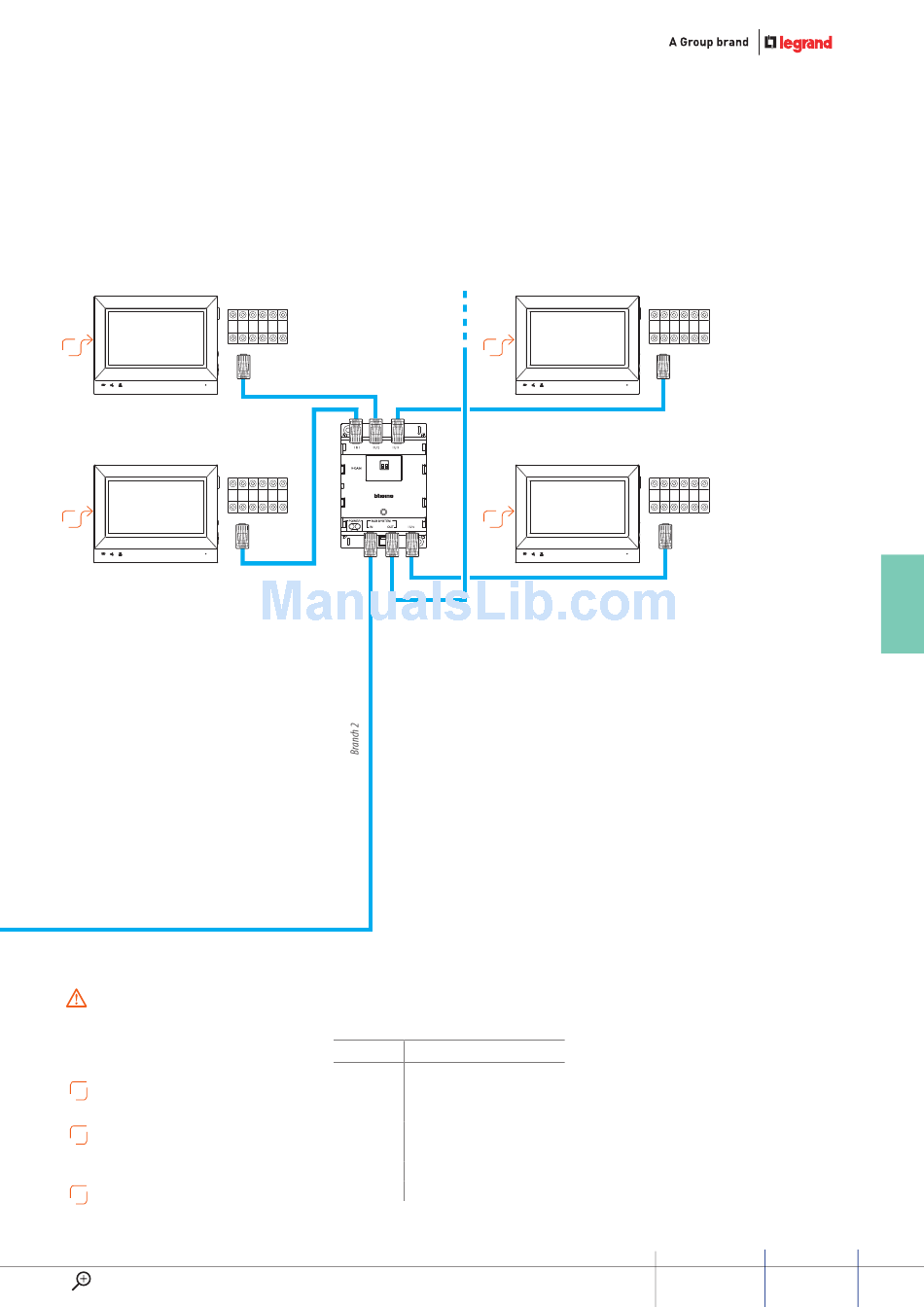

BUS
1 2
BUS
ITEM DEscrIPTION
322011 Digital call entrance panel
323005 Main power supply
323007 Two branches video splitter
323002 Floor shunt
321070 7" Touch screen internal unit
L1 Electric door lock 12V - 4A impulsive
PB Door lock release pushbutton
To next floor
shunt 323002
321070
A
323002
321070
A
0 1 0 7 0 8
F F I I #I #I
BUS
0 1 0 8 0 8
F F I I #I #I
BUS
D45 SyStEm GUIDE 79
