LEGRAND D45 SYSTEM Installation Manual page 66

GENERAL RULES FOR INSTALLATION

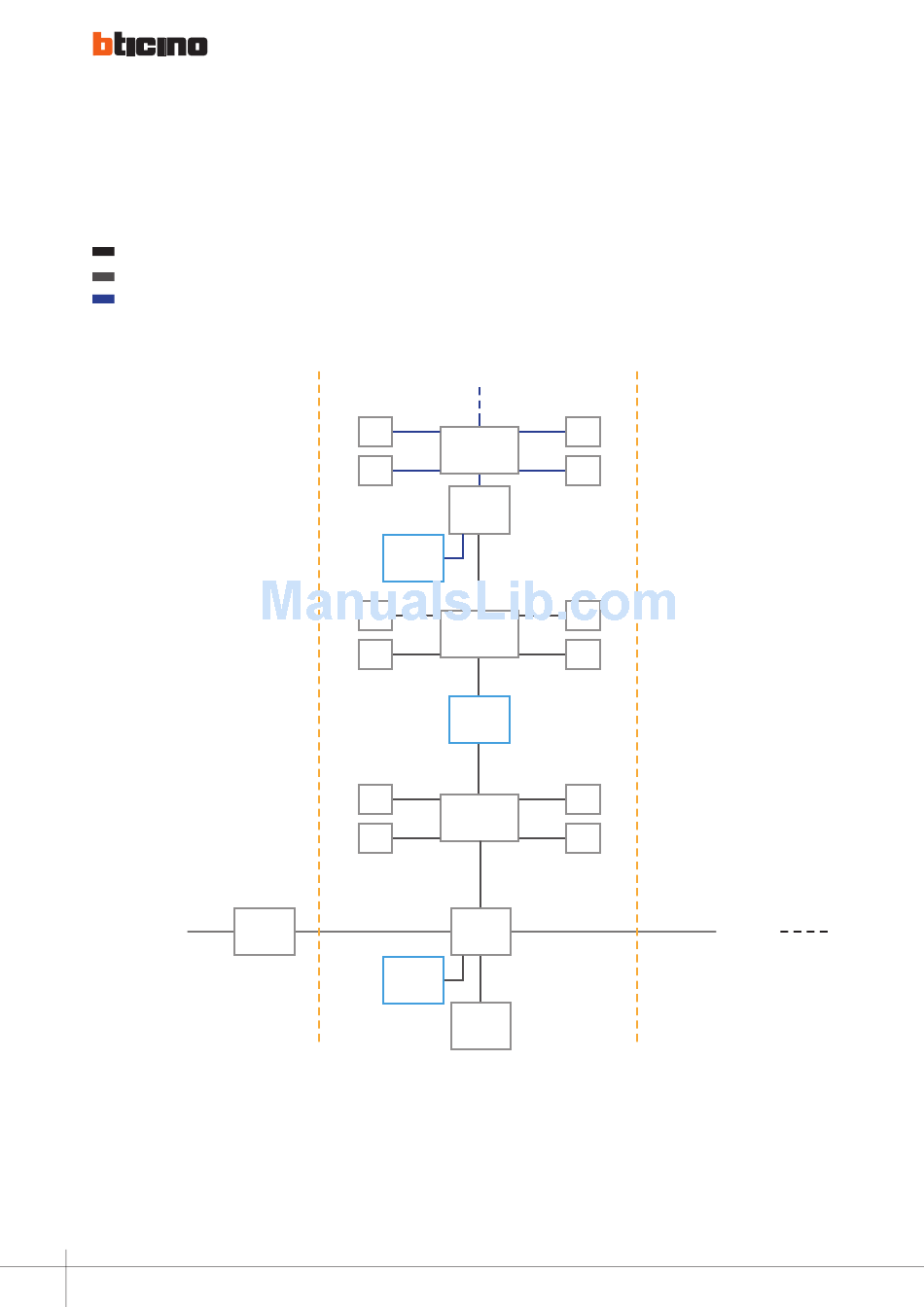

Power supply installation rules
legend
One 323005 is needed in the main network area
One 323005 is needed in the green area of the unit
One 323005 is needed in the blue area connected to - 323019
UnIT 1
During installation of the system, two power supply solutions can be chosen according to different situations.
58
handset
handset
323005
handset
handset
handset
handset
Main network line
323005
323005
UnIT 2
handset
323002
handset
323019
handset
323002
handset
323005
handset
323002
handset
Main network line
323003
EP
UnIT 3
