Lift control interface
Description
Lift control device suitable to interface D45 VDE system with the building elevator
system in order to control the lift call to the floor directly from the apartment internal
unit. Device must be configured.
NOTE : INSTALLATION AND CONNECTIONS MUST BE ALWAYS PERFORMED
ACCORDINGLY TO THE ELEVATOR MANUFACTURER SPECIFICATION.
Technical data
Power supply:
Stand by current absorption:
Max. operating current absorption:
Stand by power consumption:
Operating power consumption:
Operating temperature:
Dimensional data
141 mm
C
C
C
C
C
C
C
C
C
C
C
C
C
C
ISP
F
F
F
F
F
F
F
F
F
F
F
F
F
F
M
M
1
1
2
2
3
3
4
4
5
5
6
6
7
7
C F G
S1
S2
POWER L1
L2
POWER
OU TPU T1
SYSTEM
SYST EM
-
+
OUT
IN
128,2 mm
228
30 Vdc
< 15 mA @ 30 V
< 30 mA @ 30 V
0.45 W
0.9 W
(-10)-(+40)°C
OU TPU T8
OU TPU T7
OU TPU T6
323017
OU TPU T2
OU TPU T3
OU TPU T4
OU TPU T5
BT00792-a-

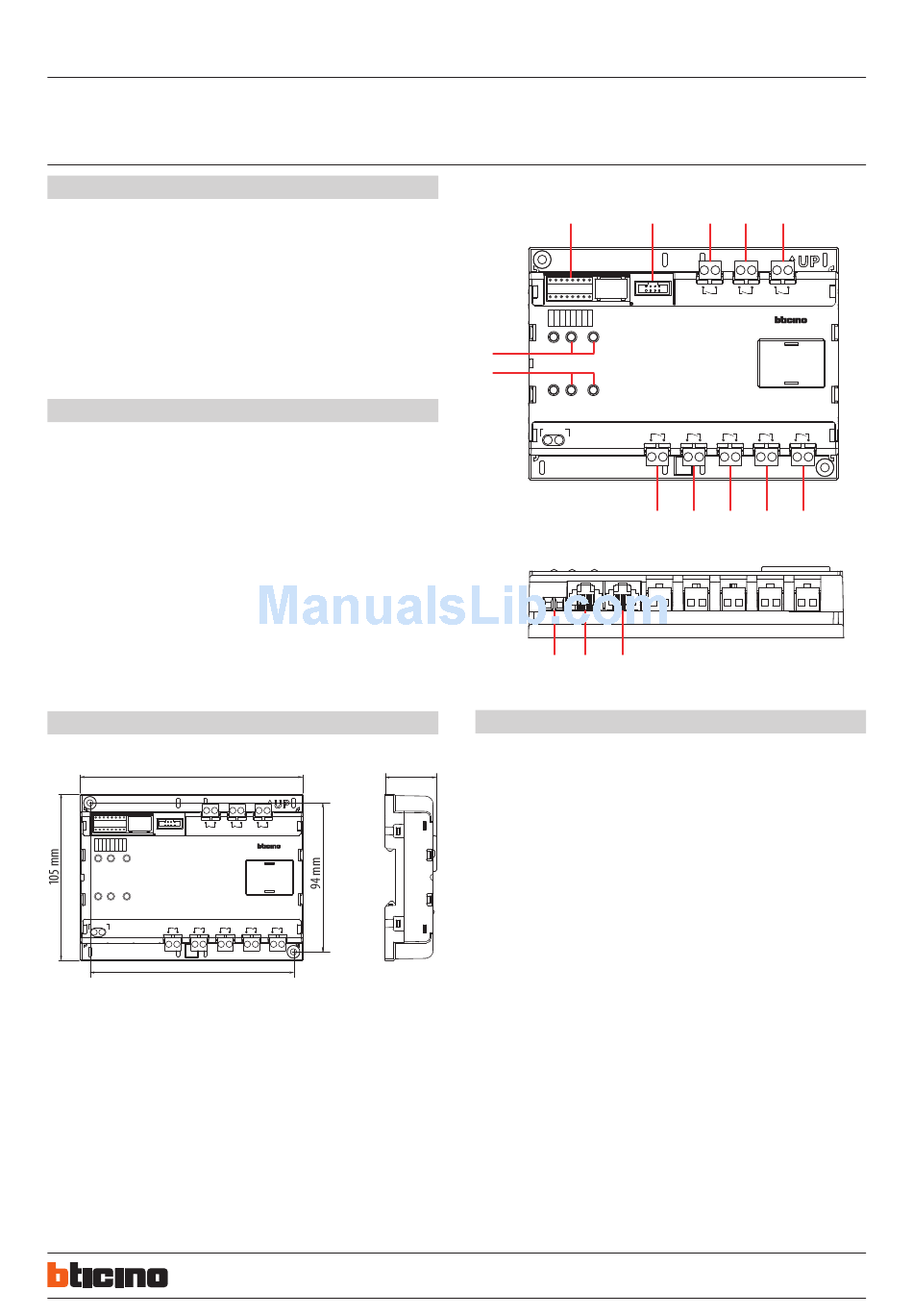

Front view
1
C
C
C
C
C
C
C
C
F
F
F
F
F
F
F
F
1
1
2
2
3
3
4
4
12
C F G
C
C
C
C
C
C
C
C
F
F
F
F
F
F
F
F
11
1
1
2
2
3
3
4
4
C F G
POWER L1
POWER
-
+
POWER L1
POWER
-
+
Lower view
15
Legend
1. Configurators housing
33 mm
2. Serial interface connector for PC configuration and firmware update
3. Relay OUTPUT 8 (connect to the corresponding key of lift)
4. Relay OUTPUT 7 (connect to the corresponding key of lift)
5. Relay OUTPUT 6 (connect to the corresponding key of lift)
6. Relay OUTPUT 5 (connect to the corresponding key of lift)
7. Relay OUTPUT 4 (connect to the corresponding key of lift)
8. Relay OUTPUT 3 (connect to the corresponding key of lift)
9. Relay OUTPUT 2 (connect to the corresponding key of lift)
10. Relay OUTPUT 1 (connect to the corresponding key of lift)
11. L1 - L2 Lift control status LEDs (see specific section)
12. S1 - S2 Manual device configuration pushbuttons (NOT USED)
13. RJ45 System OUT connection
14. RJ45 System IN connection
15. Auxiliary power supply input connector (30V)
