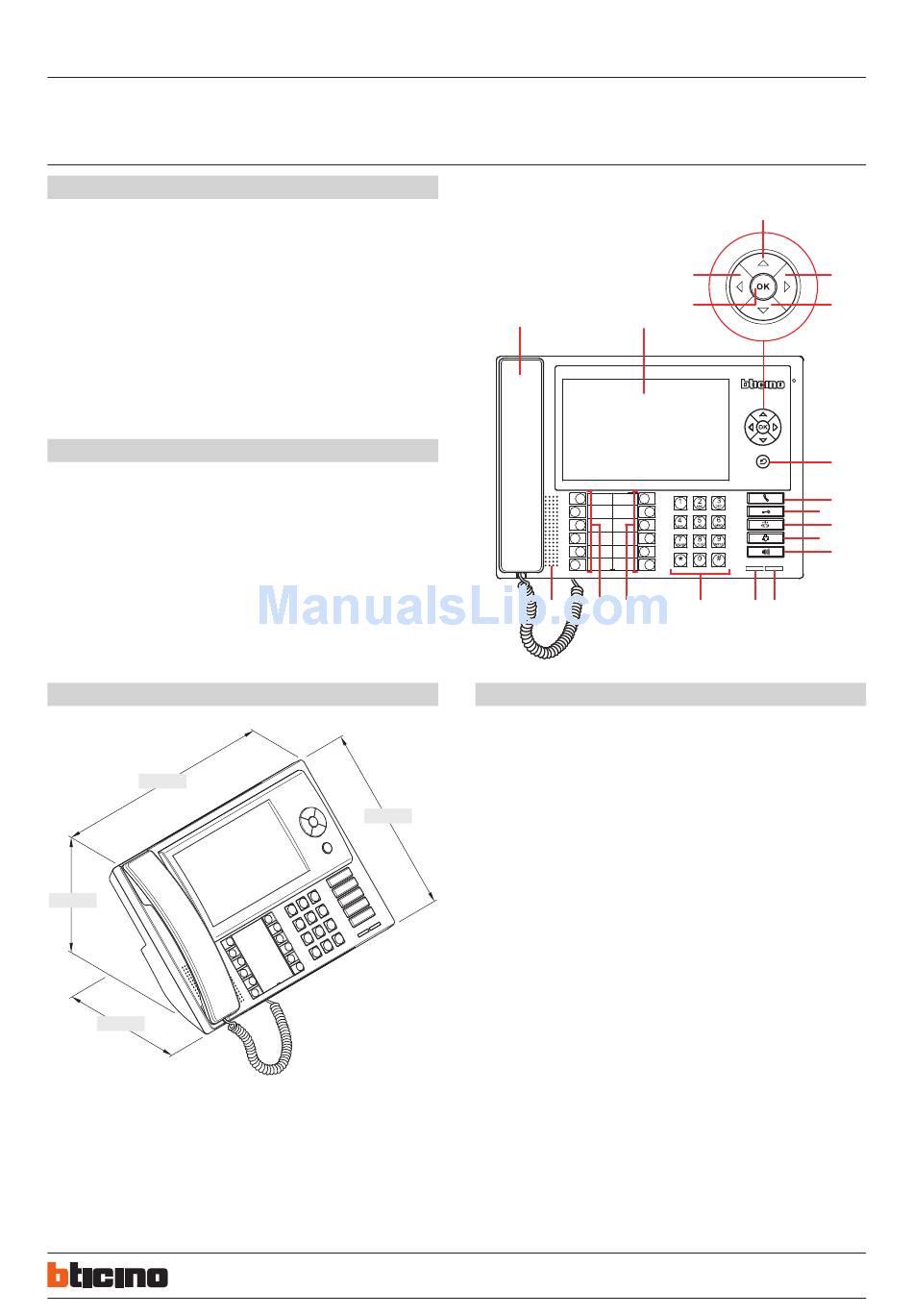

LEGRAND D45 SYSTEM Installation Manual page 198

Porter switchboard
Description
D45 System table top porter switchboard device with high resolution 7" LCD display and
icons menù. Able to communicate with handsets,entrance panels and other devices.
It manages building incoming calls and alarms. Device can be linked by LAN to other
switchboards for the management of larger system. Complete alarms management:
receiving,recording and storage of alarms. Management of SOS call records. Provides
quick message retrival by using handset addresses. Possibility to directly connect a
coaxial camera.
Technical data
Power supply: 30 Vdc
Stand by absorption: ≤ 160 mA @ 30 V
Max. operating absorption: ≤ 280 mA @ 30 V
Operating temperature: (-10)-(+40)°C
LCD screen: 7" LED backlit
800 x 480 pixel
Dimensional data
290 mm
170 mm
165 mm
194
Front view
1
Legend
1. Handset
2. 7" LCD colour display
3. Menù confirmation key
4. Menù navigation left key
5. Menù navigation up key
210 mm
6. Menù navigation right key
7. Menù navigation down key
8. Return key
9. Call pushbutton
10. Door lock opening pushbutton
11. Address book access pushbutton
12. Cameras cycling activation pushbutton
13. Handsfree pushbutton
14. SOS LED indicator
15. Communication LED indicator
16. Alphanumerical keyboard
17. User defined keys F07 to F12
18. User defined keys F01 to F06
19. Loudspeaker
BT00449-b-en 13/05/2013
4
3
2
19 18 17 16
D45 System
323001
5
6
7
8
9
10
11
12
13
15 14
