LEGRAND D45 SYSTEM Installation Manual page 43

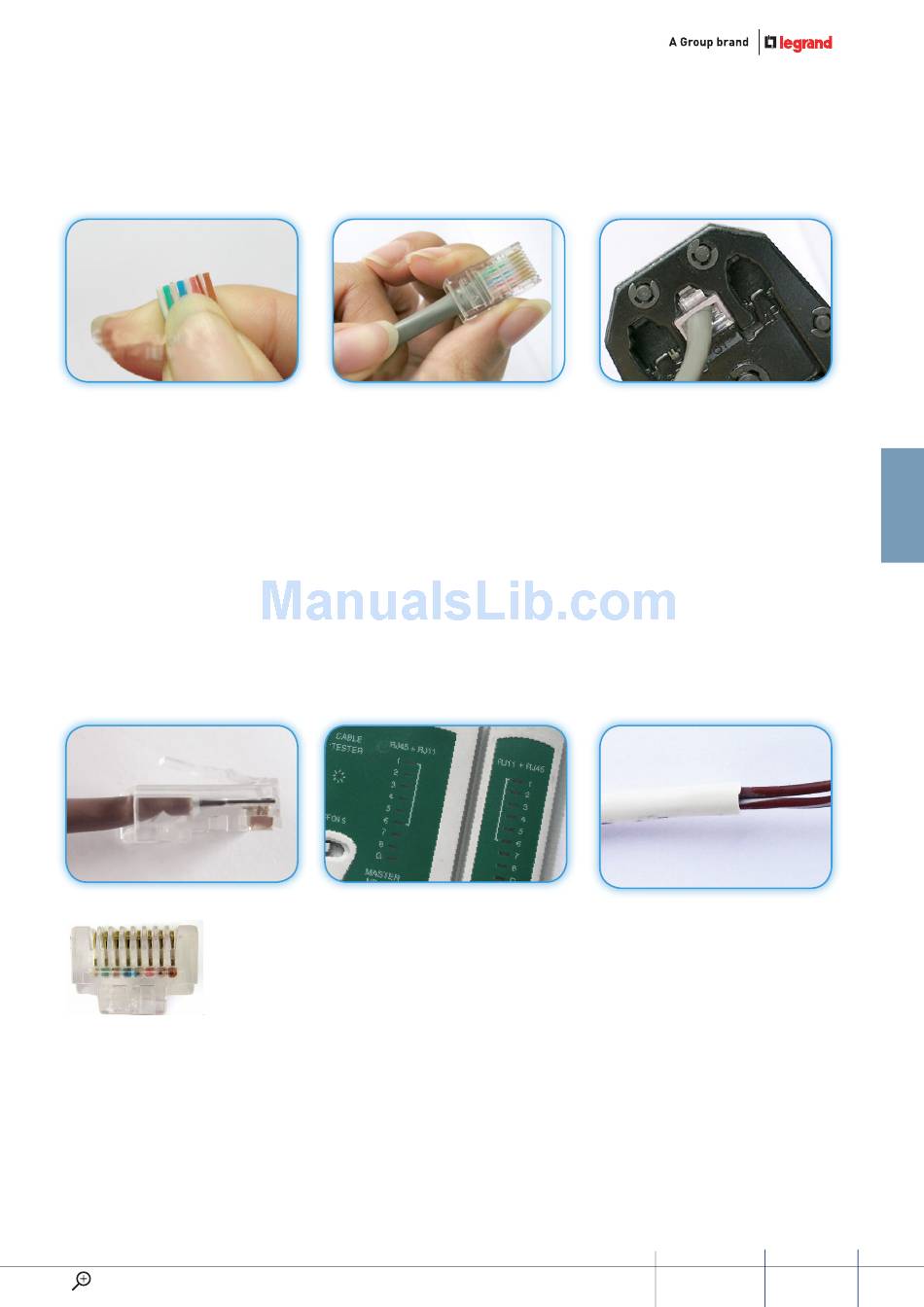

Step 5: hold the RJ-45 connector
between your fingers with the copper
connectors face up. Slide the wires
into the connector, ensuring that
each coloured wire goes into its
matching slot. Push the connector
firmly against the wires.
WWW.LEGRAND.COM
Step 6: before lock the wires inside
the connector, check from the top of
the connector to see that each wire
is tightly connected to the copper
connector.
Step 8: test the cable.
Connect the two RJ45 connectors to
the tester. Turn on the test. The two
groups of lights will be flashing. If
the 8 lights turn to green one by
one, it means the cable is correctly
assembled. Any red lights or yellow
lights indicate an open circuit or
bad connection.
Step 7: after the final check, place
the attached RJ-45 connector into
the wire crimping tool. Squeeze the
crimper handles down to lock the
wires in place inside the connector.
When squeezing, a "click" sound
should be heard.
The following picture shows a
correctly fitted connector.
Two wire cables must be used in the
following conditions:
1. system power supply connection
to floor shunt (323002);
2. addition power supply
connection to Floor shunt;
3. P18V connection to IT1 P18V;
4. EP/ Backbone/main EP
connection to door lock, EP/
Backbone/main EP connection
to door lock and door lock
connection to power supply.
Type DC-loop: 2 x 1.0 mm²
Resistance: 39.4 Ω / 1 km
D45 SyStEm GUIDE 35
