System composition

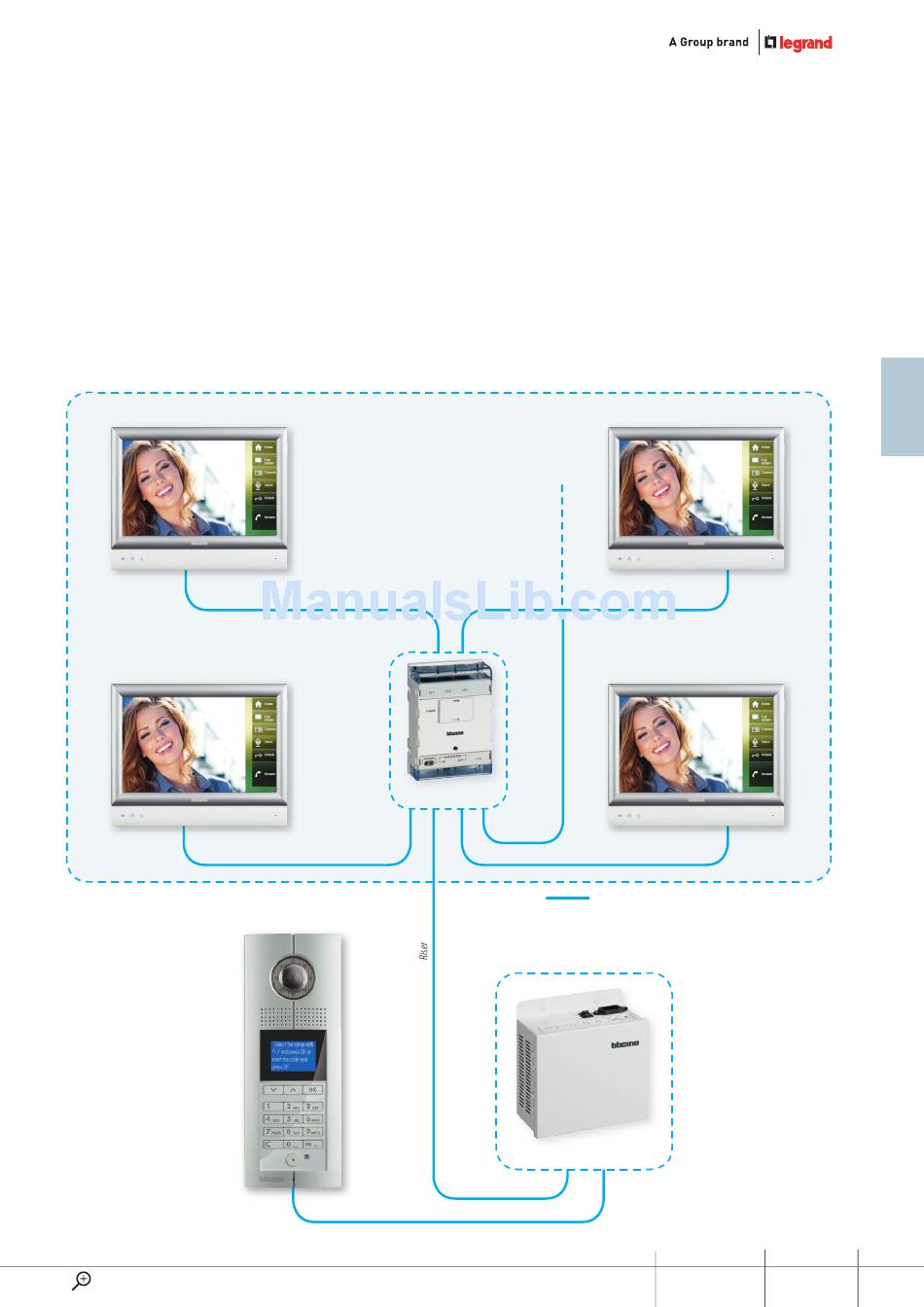

SINGLE BUILDING WITH ONE RISER
For the installation of one-riser
video systems, the floor shunt,
323002, must be used. it is
particularly suited to multifamily
Apartment 2
Apartment 1
FLOOR 1
www.lEgranD.com
systems with several dwellings on
the same floor, and to multifamily
systems where maximum distance
between entrance panel and
Floor shunt 323002
Entrance panel
internal units is required.
The floor shunt provides star
connection of up to 4 apartments.
To floor
shunt 323003
Connections with RJ45 – Cat 5E/6 cable
Power supply 323005
D45 SyStEm
Apartment 3
Apartment 4
