LEGRAND D45 SYSTEM Installation Manual page 148

7" touch screen handsfree internal unit
Configuration

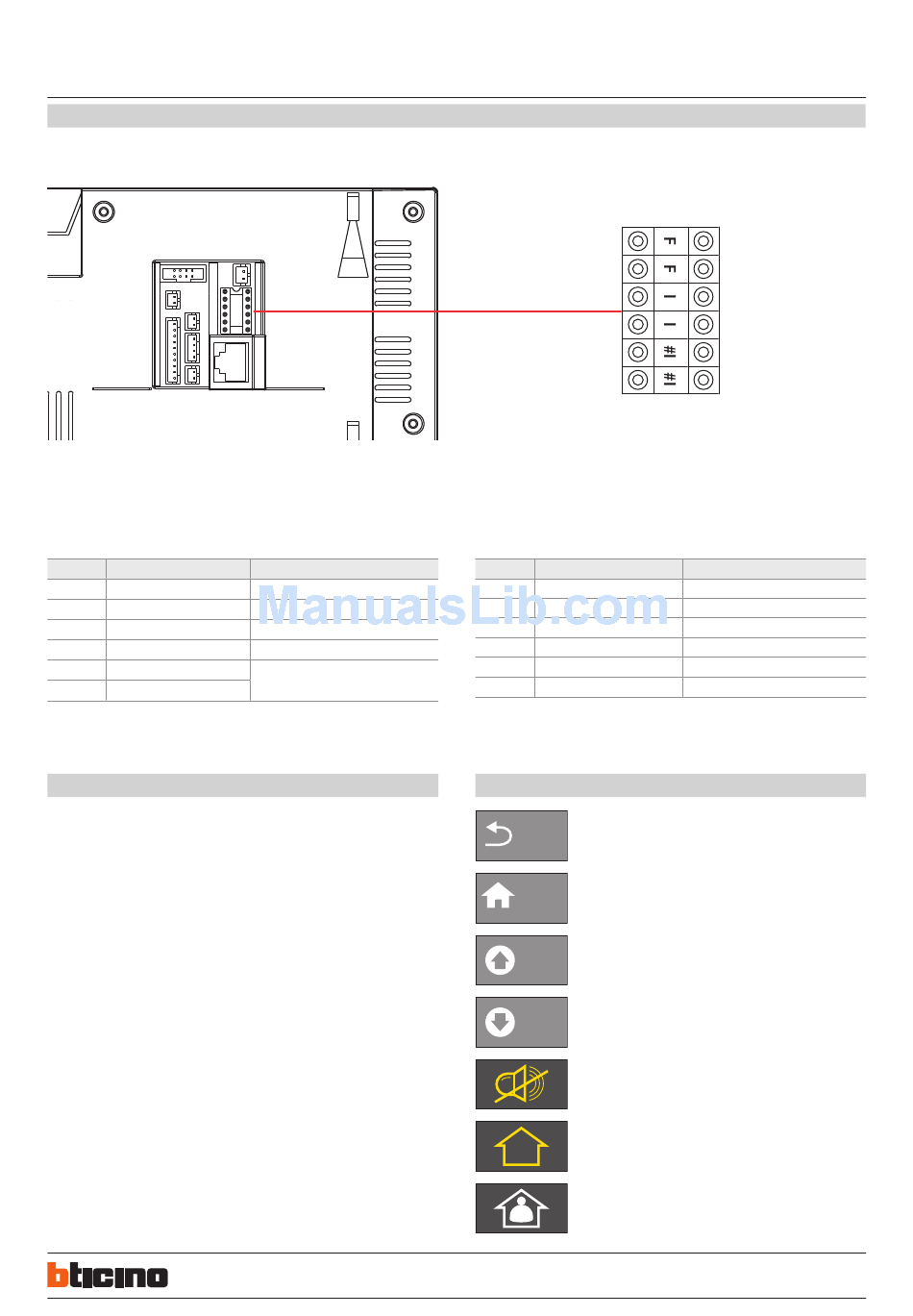

Configuration setting by inserting phisical configurators - WAY 2 :
Example (A):
The number of handsets is 1204, each floor has 4 handsets, the system configuration
mode is Mode 1, the handset configuration should be as follows
POSITION CONFIGURATION VALUE
F 1
F 2
I 0
I 4
#I
#I
Side pushbutton functions
SOS Key : in case of urgent or unexpected situation, press on the "SOS key" to send the
alarm message to the management center.
Answer Key :
When a visitor calls the host, press the "Answer key" to talk with him, during which you
can press again on the key to end the talk.
Unlock Key :
During the communication with the entrance panel or the small entrance panel, press
on the "Unlock key" to unlock and call the lift.
144
REMARKS
It is ok not to insert configurator 0
Because the default value of #II is 4, no
configurator is needed
BT00851-a-en
Example (B):
The number of handsets is 1206, each floor has 8 handsets. System configuration mode
2 is used. The handset configuration should be as follows:
VALUE
POSITION
F 1
F 2
I 0
I 6
#I 0
#I 8
Icons quick explanations
Back
return to previous menu
Home return to the main interface
PgUp
Page up
Page down
PgDn
Anti-disturb mode, the status lED on (red)
Outside mode, the status lED on (pink)
home mode, the status lED on (blue)
03/09/2014
321070
REMARKS
It is ok not to insert configurator 0
It is ok not to insert configurator 0
