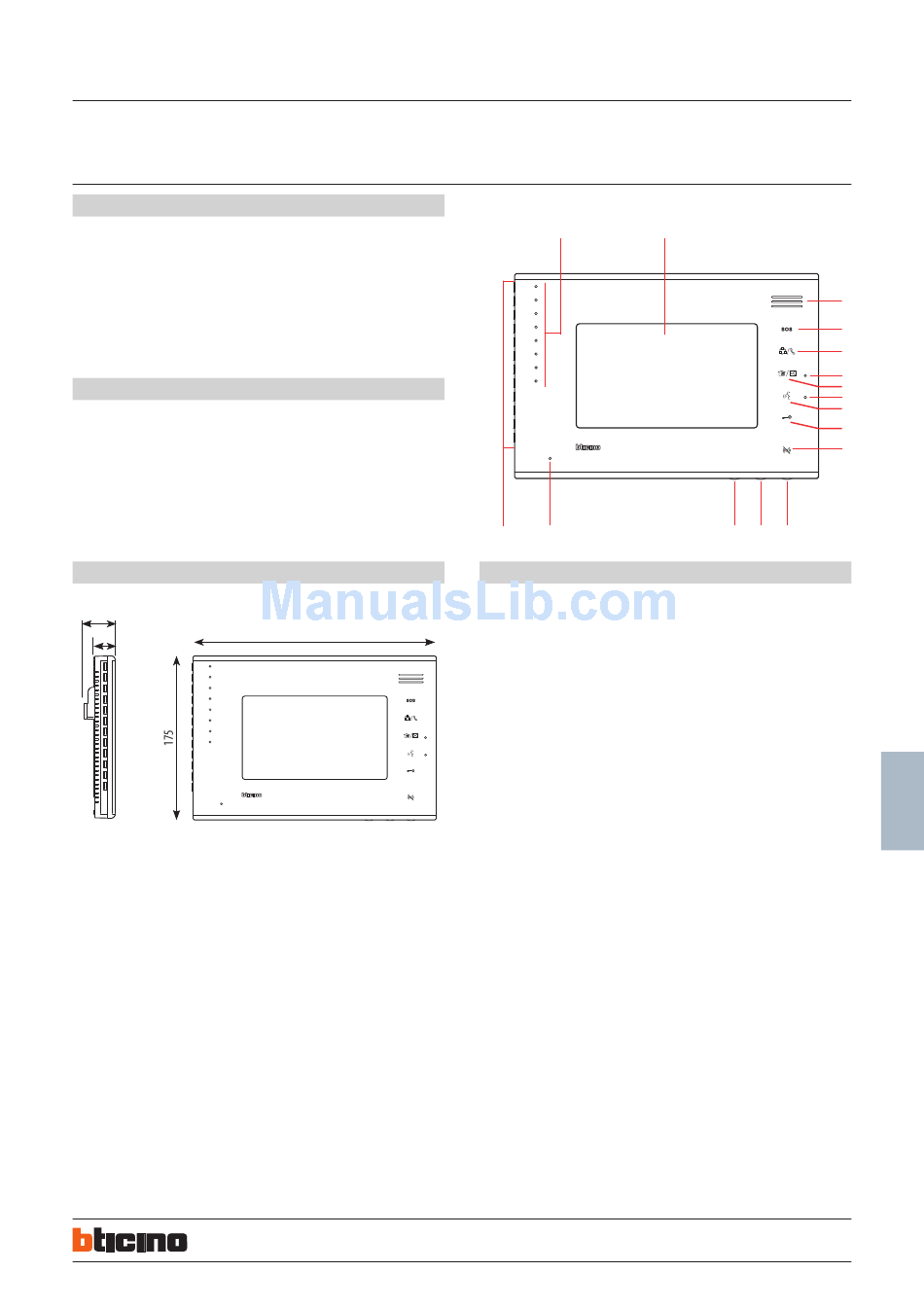

LEGRAND D45 SYSTEM Installation Manual page 191

Colour 7" handsfree indoor handset
Description
D45 System indoor handsfree video handset with 7" analogue LCD LED backlit display.
Complete door entry functions with alarms management. International standard SOS
pushbutton and keyboard for intercom function and programming device. Direct call to
switchboard function. 12 ring tones selectable for different call types. Surge protection.
Wall mount installation.
Technical data
LCD display resolution: 480 x 234
Power supply : 30 Vdc
Stand by absorption: ≤ 20 mA @ 30 V
Max. operating absorption: ≤ 145 mA @ 30 V
Operating temperature: (-10)-(+40)°C
Dimensional data
33,5
23
1
2
3
4
5
6
7
8
9
10
*
#
Dimensions in mm
260
BT00472-b-en
Front view
15
1
2
3
4
5
6
7
8
9
10
*
#
14 13
Legend
1. Loudspeaker
2. SOS key
3. Monitor key
4. Information LED
5. Switchboard call key
6. Communication LED
7. Answer key
8. Unlock key
9. Shortcut key
10. Color control knob
11. Brightness knob
12. Ring volume control knob
13. Microphone
14. Numerical keys and corresponding numbers
15. Defense area LED 1 to 8
16. LCD Display
03/06/2013
D45 System
322050
16
12 11 10
1
2
3
4
5
6
7
8
9
187
