WIRING DIAGRAMS

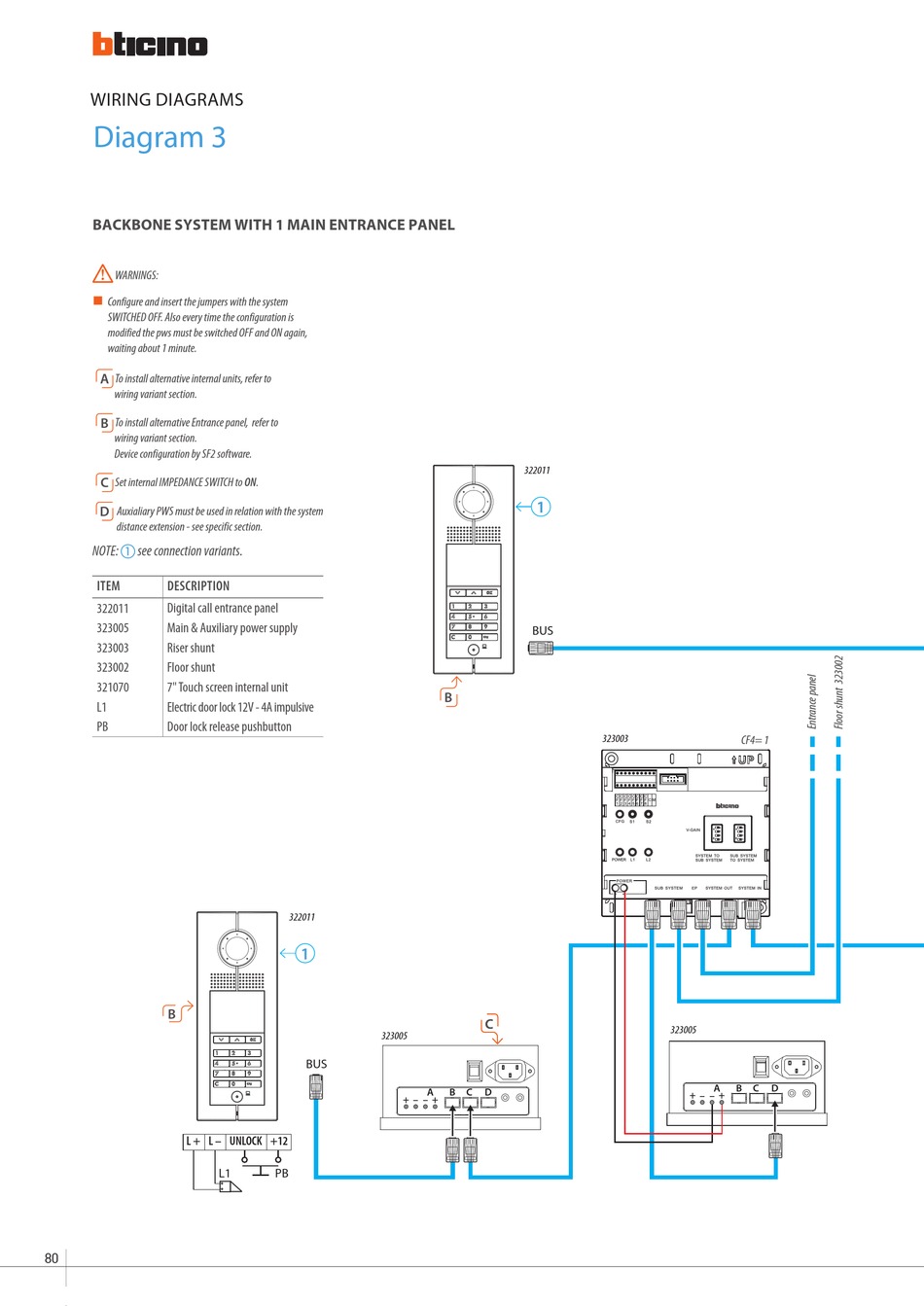

Diagram 3

backbone system witH 1 main entrance panel

WARNINGS:
„ „
Configure and insert the jumpers with the system
SWITCHED OFF. Also every time the configuration is
modified the pws must be switched OFF and ON again,
waiting about 1 minute.
A
To install alternative internal units, refer to
wiring variant section.
B
To install alternative Entrance panel, refer to
wiring variant section.
Device configuration by SF2 software.
C
Set internal IMPEDANCE SWITCH to ON.
D
Auxialiary PWS must be used in relation with the system
distance extension - see specific section.
NOTE: see connection variants.

ITEM DEscrIPTION
Digital call entrance panel
322011
323005 Main & Auxiliary power supply
323003 Riser shunt
323002 Floor shunt
321070 7" Touch screen internal unit
L1 Electric door lock 12V - 4A impulsive
PB Door lock release pushbutton
B
L + L – UNLOCK
L1
80
B
322011
1
323005
BUS
A
+ – – +
+12
PB
322011
1
BUS
323003
C C
B C D
CF4= 1
4 4
3 3
2 2
1 1
323005
A B C D
+ – – +
