LEGRAND D45 SYSTEM Installation Manual page 175

10 Pushbuttons colour video entrance panel
Configuration
Setting of door lock status:
device in stand by status - press and mantain for about 3 seconds the key
on the back of the entrance panel. A short tone indicates that device detect the actual
door lock status (always ON or OFF - this status will be signalled to porter switchboard).
reset of factory default room number for each pushbutton
device in stand by status - press and mantain for about 6 seconds the key
on the back of the entrance panel until one long tone is heard. This indicates that the
reset has been successfully completed.
0 3 sec.
Setting
of door lock status
Setting of anti removal (tamper) function:
This function indicates the removal of the device from the wall. If someone try to
remove the device from the wall, an alarm message will be sent to the porter switch-
board. On the back of the entrance panel, there are two ON - OFF switches : one is the
anti tampering function enable switch; the other is to set ON or OFF this function.
ON OFF

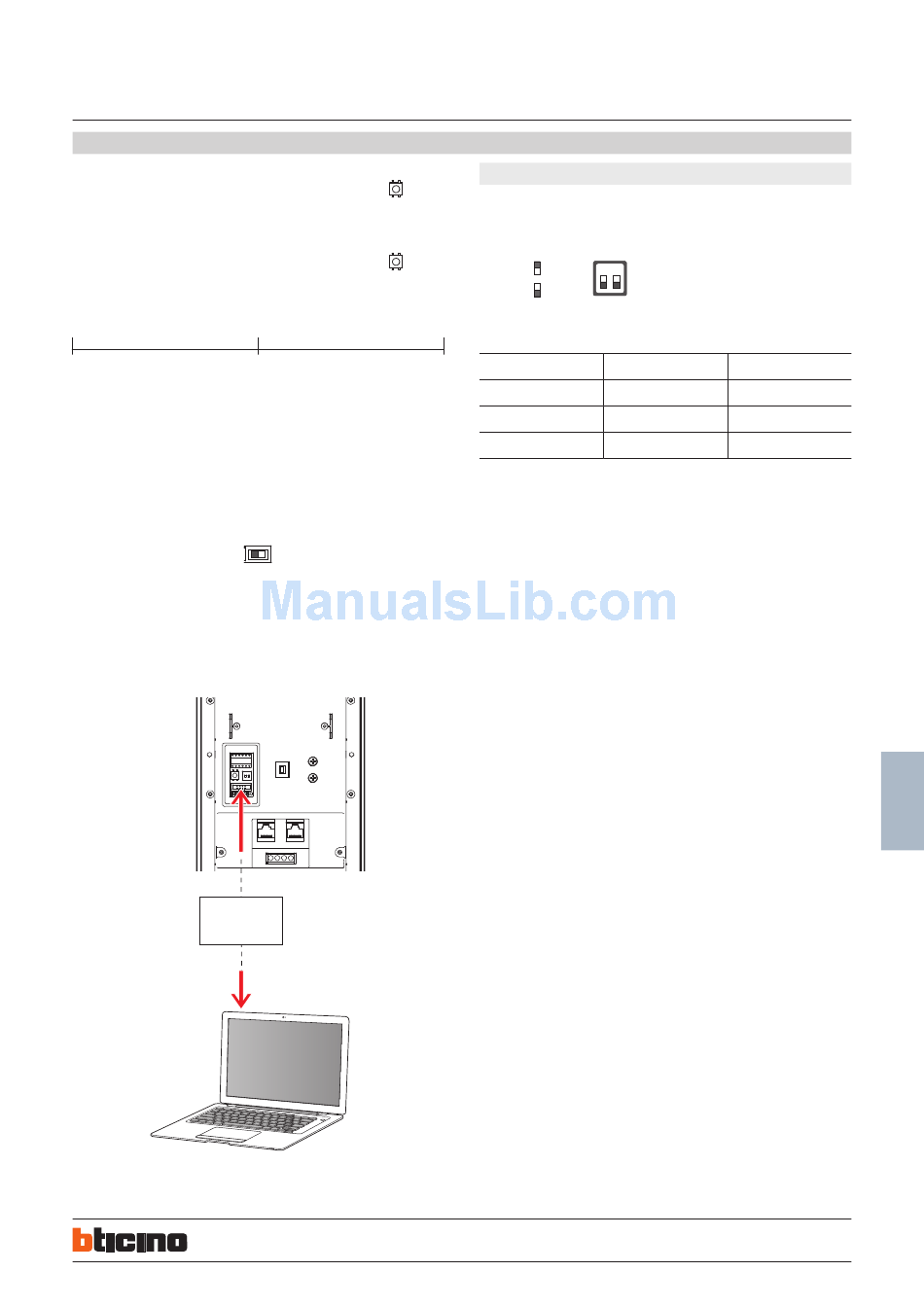

Configuration by using SF2 Software and PC connection- WAY 2 :
This is the enhanced way to download the device configuration to entrance panel
previously created by using SF2 configuration software and a personal computer. To
transfer use the configuration hardware tool 323020 serial interface
323020
configuration
tool
WArNINg : to ensure that the communication is successful, entrance panel must
be powered and NOT phisically configured.
located
located
6 sec.
Reset factory default
room number for each pushbutton
BT00765-a-en
video gain setting
The entrance panel has two video compensation gears, we can let the video signal
output adapt to different transmission distance. See followings:
ON
1 2
OFF
DIP SWITCH SETTINGS FOR B/W. AND COLOUR SYSTEM
Distance
0 –300 m
300 – 700 m
700 – 1000 m
03/06/2013
322030
1 2
OFF OFF
ON OFF
ON ON
171
