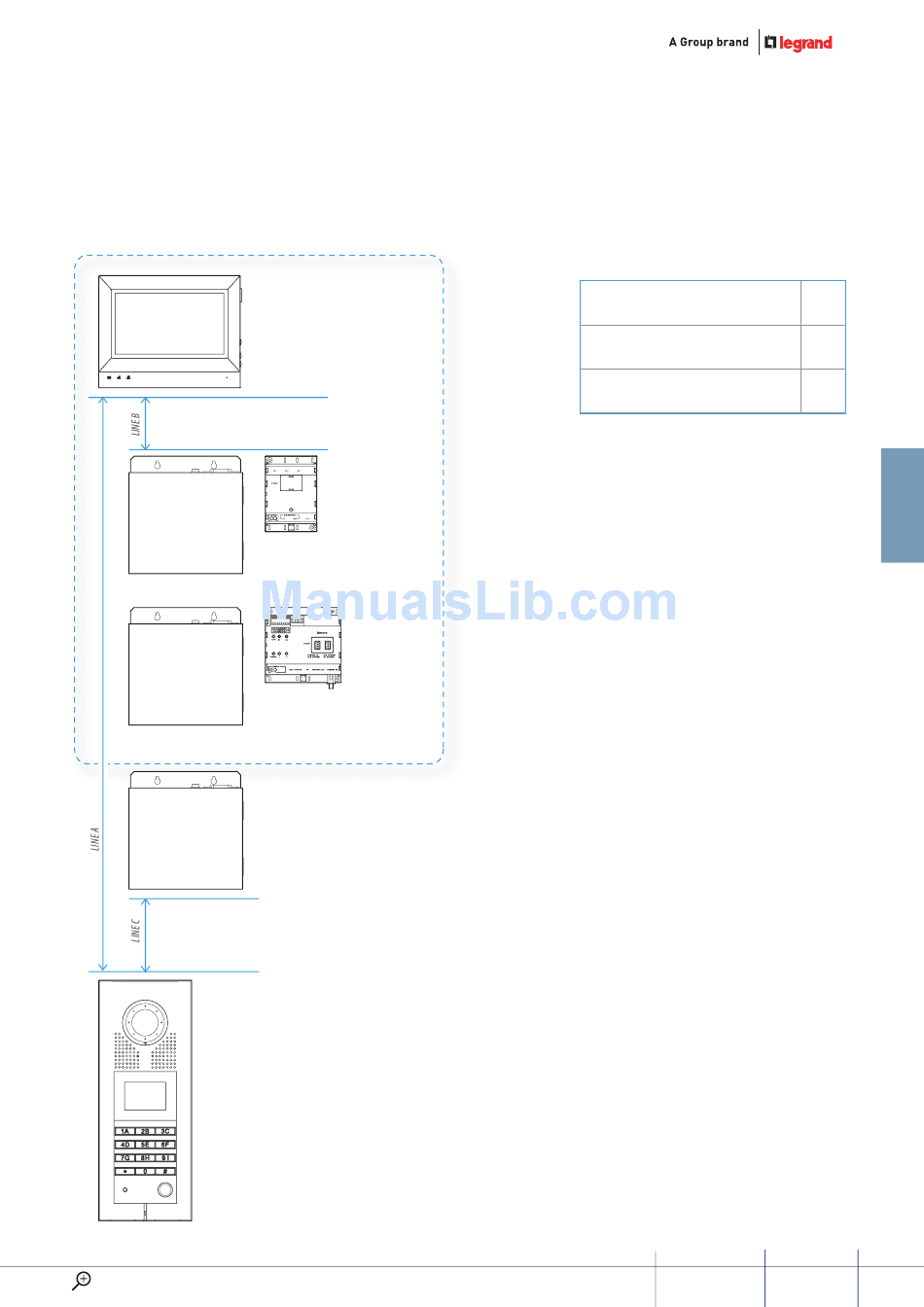

colour sysTem - mulTiple risers
Additional power supply of
floor shunt 323010
Riser main power suplply
323005
Entrance
panel
WWW.LEGRAND.COM
Furthest
internal unit
Floor shunt
323002
4
4
3
3
2
2
1
1
Riser shunt
323003
Main power supply
323005
Max. distance line A
Furthest internal unit - Entrance panel
Max. distance line B
Internal unit - Power supply of Flor shunt
Max. distance line C
Entrance panel - Power supply
D45 SyStEm
1 Km
50 m
70 m
GUIDE
71
