Porter switchboard

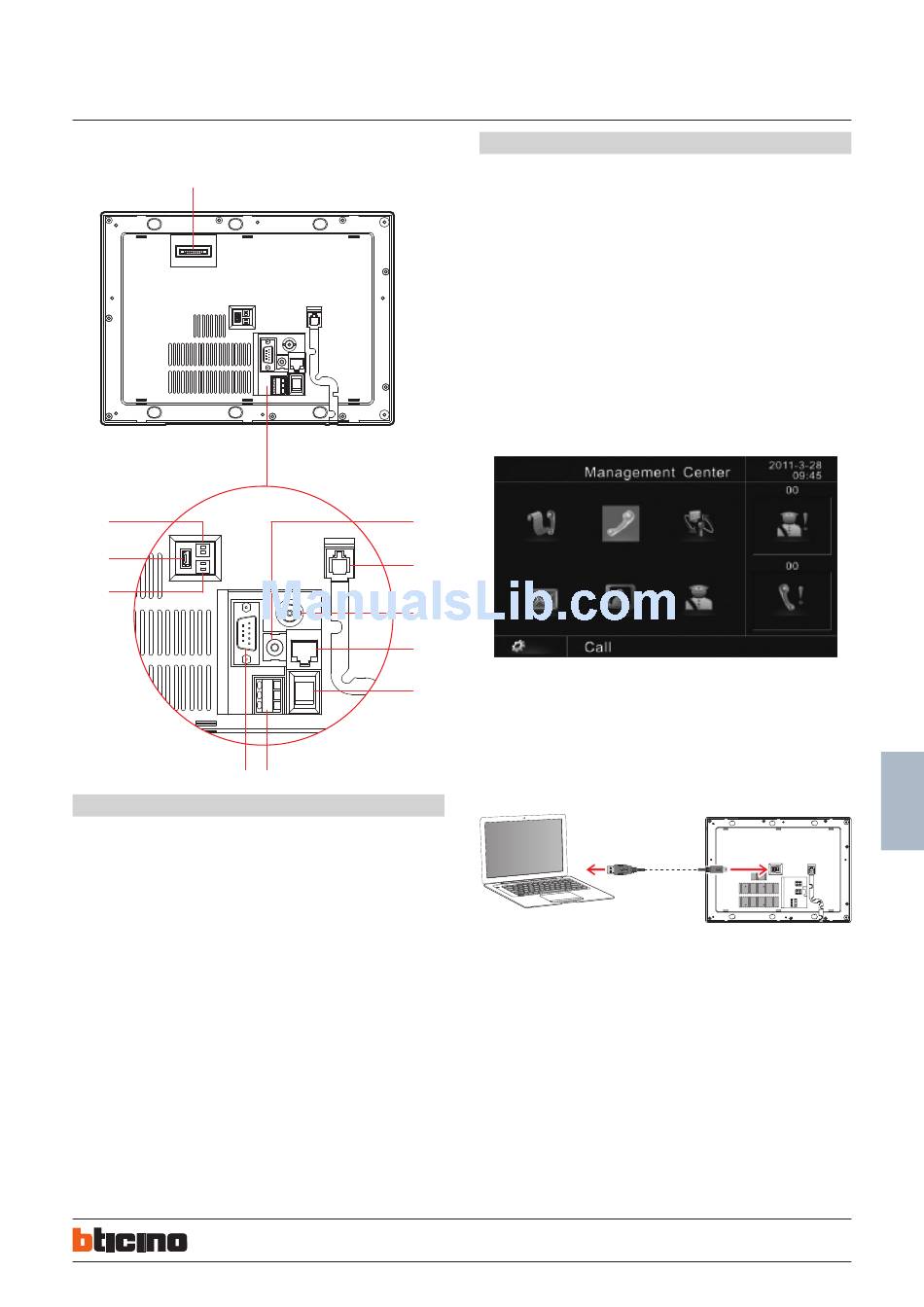

Front view
1
4
3
2
11
Legend
1. JTAG standard connector
2. DIP SWITCH for video output gain setting
3. USB connector
4. DIP SWITCH for video input gain setting
5. RCA video input connector
6. RJ11 connector for dedicated handset
7. BNC video input for external coax camera connection
8. RJ45 connector for D45 system BUS connection
9. Power ON/OFF Switch
10. SOS alarm connector
11. Serial interface (COM alternate) connector
5
6
7
8
9
10
BT00449-b-en
Configuration
Device must be configured for the following parameters :
- switchboard local address (0 to 15)
- associated entrance panel address (1 to 80)
- associated handset (optional setting)
Two different device configuration ways available :
WAY 1) configuration settings by device icons on screen menù
WAY 2) configuration by using SF4 (323012) Software and PC connection
Configuration settings by device icons on screen menù - WAY 1 :
detailed information on functions menù are available on instruction sheet (supplied
with the product). Access to the functions menù as for the followings screenshot
example:
Configuration settings by using SF4 (323012) Software and PC connection - WAY 2 :
This is the enhanced way to download the device configuration to entrance panel
previously created by using SF4 (323012) configuration software and a personal
computer. To transfer use the configuration hardware tool 323020 serial interface.
WARNING : in order for the communication to take place, device must be powered
13/05/2013
