LEGRAND D45 SYSTEM Installation Manual page 192

Colour 7" handsfree indoor handset

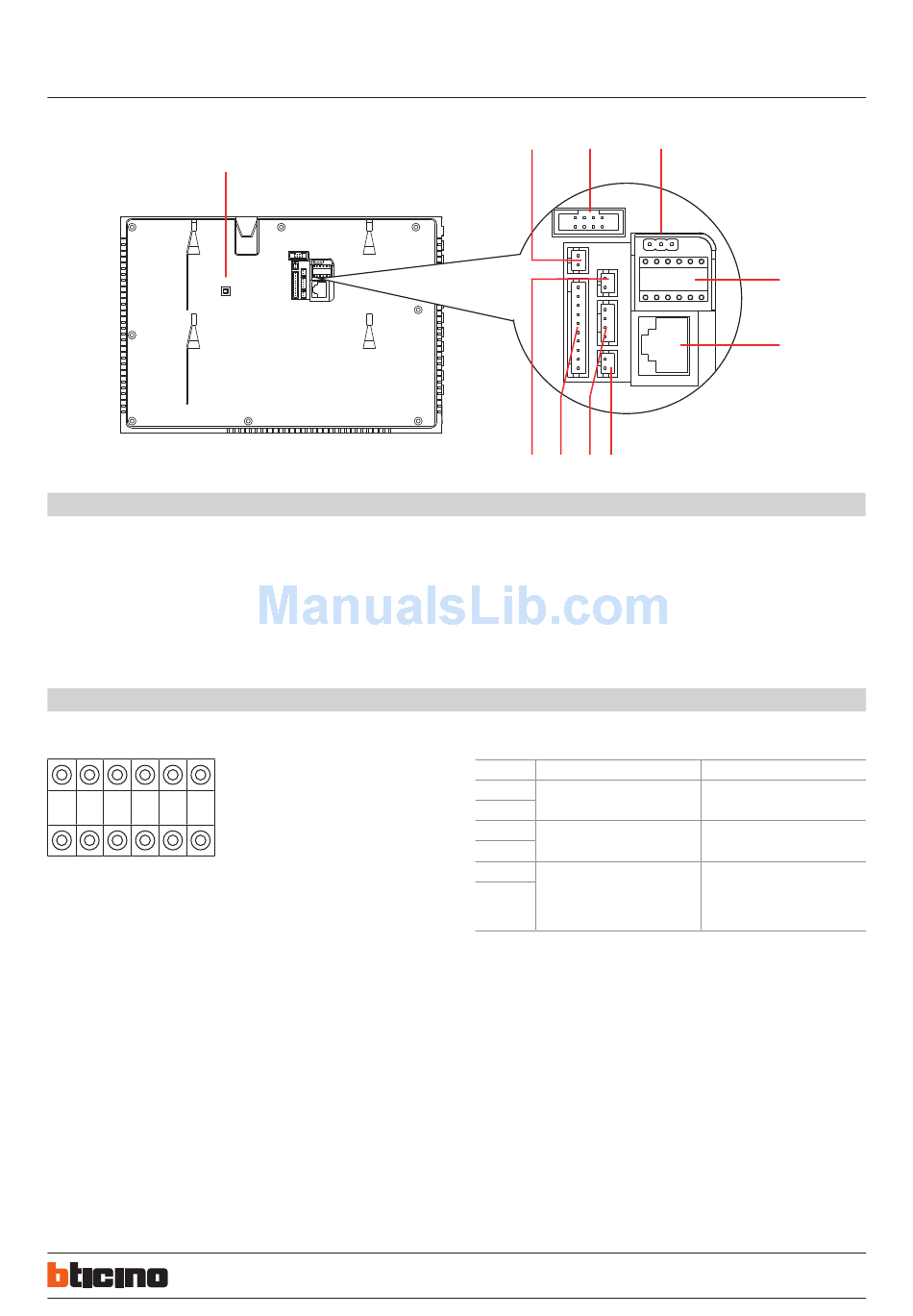

Rear view
Legenda
1. Anti removal switch connector
2. Master and Slave selection pin
3. Configurators housing
4. RJ45 system BUS connector
5. SOS alarm connector
Configurazione
Indoor handset must be configured for following parameters:
F F I I #I #I
Two different configuration modes available for whole
system :
configuration MODE 1 and configuration MODE 2. The main characteristics for each
configuration mode are listed below.
When the biggest number of #FF in whole system is ≤ 20, and the biggest number
of #II is ≤4, and the total risers number is ≤ 50, we recommend to choose (MODE 1)
configuration for system.
When the biggest number of #FF in whole system is more than 20, or the biggest
number of #II is more than 4, we suggest to use (MODE 2) configuration to setup #FF
(choose the biggest number #FF of system) and #II (choose the biggest number #II of
system), then calculate total IU number of system. If the total number (#FF * #II * R ) is
less or equal 4000, use of (MODE 2) is suggested.
188
4
5
6
7
8
9
10
*
#
1
FF : Floor number
II : Apartment number
#II : Maximum apartments quantity per floor
in a riser
BT00472-b-en
9 10
8 7 6 5
6. Small entrance panel (322020) connector
7. Alarm sensors connector (see specific page)
8. Door lock interface (323015) connector
9. Alarm sensor anti-removal connector
10. Serial interface connector
POSITION MODE 1
F FF
F
I II
I
#I Default for #II is 04,
need not connect the configurator
#I
03/06/2013
322050
2
3
4
MODE 2
FF
II
II
(#II setup using same value for all
system handsets).
