- Page 1 Video Door Internet Enabling Kit (P/N CM2001) User’s Guide 1308233 REV. A 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.0 Introduction ........................ 1 1.1 Overview of the CM2001 ..................1 1.2 Product Features ....................1 1.3 Hardware Interface ....................2 2.0 Physical Installation ....................3 2.1 Overview ......................... 3 2.2 Installation Drawing ....................4 3.0 PC/Web Configuration ....................5 4.0 Configuration and Operation.................. -
Page 3: Introduction

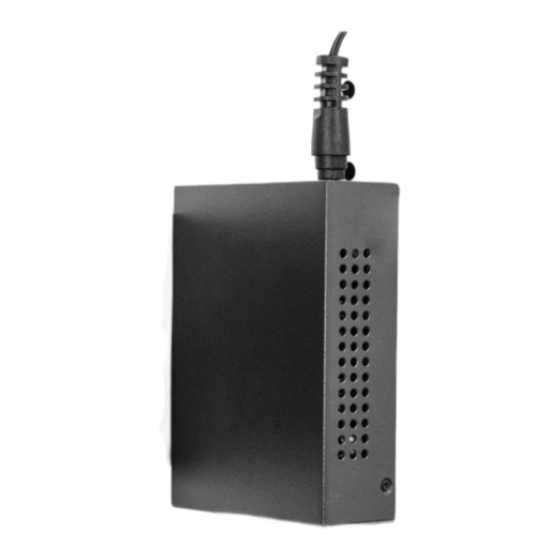

1.0 Introduction 1.1 Overview of the CM2001 The Legrand CM2001 Video Door Internet Enabling Kit (see Figure 1), when used with the Legrand Selective Call Intercom system, provides local or remote network access to images from the SCI Video Door Unit camera. These images (still or compressed video) may be recorded and/or sent via email to a remote user. -
Page 4: Hardware Interface
Connection for External Microphone Input Use paper clip to depress button for 5 seconds to restore Recessed Button Reset factory defaults 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 5: Physical Installation
2.1 Overview The CM2001 may be physically installed in two different ways. There are keyhole slots on the rear of the case which may be used for mounting to a flat surface with screws. The other more typical way is to attach the CM2001 to an AC1025 bracket with two machine screws (all available separately), for mounting in an On-Q style enclosure. -
Page 6: Installation Drawing
Regardless of the mounting method, once mounted, connect the supplied cable from the RCA video output jack on the lower right corner of the SCI Module to the BNC video input jack on the CM2001. If you want a doorbell button press on the SCI Video Door Unit to trigger an event, like recording images, or... -
Page 7: Pc/Web Configuration
If this is the first time you are accessing the CM2001, you will get a pop up screen asking for the user name and password – type in “admin” and “admin”. You can bookmark this action once logged on to avoid this step in the future. - Page 8 Figure 8. On the smart phone, pressing the “Original Web” button will take you to a screen as shown in Figure 6 above. Legrand Figure 7 Setting Original Web RTSP 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
- Page 9 Live View on the upper left of the screen. The following section goes into detail for each of the possible “Setting” selections. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
-
Page 10: Configuration And Operation
(DHCP) issue IP addresses. With this setting, the IP address is assigned automatically. If the CM2001 cannot get an IP address within limited tries, it will be assigned a default IP address of 192.168.0.20. If you do not check “Obtain an IP address automatically”, then you need to enter the network parameters manually. - Page 11 HTTP Port The CM2001 supports two HTTP ports. The first one is default port 80 and this port is fixed. Port 80 is very useful for Intranet usage. The second HTTP port is configurable. Local users could assign the second port number, and any WAN users would need to add that port number to the back of IP address to login.
- Page 12 IPv4, with the two existing side by side for many years. IPv6 Click on enable or disable (the default) and OK if a change was made. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
- Page 13 However, if your device is behind a NAT router, you will not need to enable this feature. DDNS allows the CM2001 to remember names rather than an IP addresses. The name of the domain is like the name of a person, and the IP address is like his phone number. On the Internet we have IP numbers for each host (computer, server, router, and so on), and we replace these IP numbers with more easily remembered domain names.
- Page 14 Check to enable or disable the DDNS service. Server name: Choose the DDNS service provider (like dyndns.org). DDNS Host: The domain name that was assigned by dyndns.org for this CM2001. User Name: The user name used to log into the DDNS account. Password: The password used to log into the DDNS account.
- Page 15 PPPoE information, and then connected to the xDSL modem. The procedures are • Connect to a LAN via DHCP or Fixed IP • Access the CM2001, enter Setting Network PPPoE as shown below PPPoE: Check to enable or disable the PPPoE service.
- Page 16 1. To use the 3GPP function, you will need more information or configuration to make this function work. 2. The CM2001 must be set in Multi-profile mode, not Mega-pixel mode. Otherwise this device cannot support a 3GPP stream. 3. To use the 3GPP function, it is strongly recommended to install the Networked Device with a public and fixed IP address without any firewall protection.
- Page 17 Where host is the host name or IP address of the camera. Please contact your dealer to get the approved list of compatible 3G Compatible phone. 3G mobile phone: 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
- Page 18 In addition, the CM2001 also provides UPnP IGD function for easy NAT traversal. Use NAT traversal when your CM2001 is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the CM2001.
- Page 19 Bonjour Check to enable or disable the Bonjour service. Friendly Name Shows the friendly name of this CM2001. Note that with the Bonjour service, the entire MAC address is shown, rather than the last three digits. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand,...
- Page 20 Check to enable or disable the IP filter function. IP Filter Policy: Choose the filter policy for creating a list of IP addresses to allow or deny access to the CM2001. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand,...
- Page 21 Type the message to be sent to FTP server. If you enable this function, then the fields below need to be HTTP Notification: filled in. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343...
- Page 22 Custom parameter: The user can set specific parameters of the HTTP server. Message: Type the message to be sent to HTTP server. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343...
-
Page 23: Adjust Camera Configuration
4.2. Adjust Camera Configuration Use the “Camera” selection to adjust the image from the camera attached to the CM2001. 4.2.1. Picture Color Level Increase value to increase color saturation (N/A on smartphone). Brightness: Increase value to brighten camera image (N/A on smartphone). - Page 24 Name of the specified privacy window Level To define the gray level of mask block. The smaller value will be darker. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343...
- Page 25 4.2.3. PTZ Setting (N/A with SCI Video Door Camera) This page allows the user to modify the RS-485 interface according to the P/T scanner. The CM2001 can connect to a PTZ camera or speed dome camera Camera Protocol and controls them thru an RS-485 interface.
- Page 26 Control commands for Down function. OSD Down Control commands for Left function. OSD Left Control commands for Right function. OSD Right 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
- Page 27 4.2.4. Preset Setting (N/A with SCI Video Door Camera) This page provides the edit tool to modify or delete the “Preset Setting” item by item. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
- Page 28 To use the camera tour function, the user must preset some camera NOTE: positions first. The maximum number of preset points is 64. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
-
Page 29: System Configuration
User can check the system log information of the CM2001, including the Main Info, Appended Info, Operator IP, and so on … Reload: Click this button; user can refresh the log information of the CM2001. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand,... - Page 30 4.3.2. Date & Time This page allows the user to set the time of CM2001, synchronize it with a PC or remote NTP server. You may also select the correct time zone of your country, and adjust for Daylight Savings time (if appropriate).
- Page 31 Sets up the date and time of daylight saving stop time. Stop Time: Daylight Saving Sets up the date of daylight saving offset. Offset: 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
- Page 32 Setting): (including the IP address). Default Settings The CM2001 is restarted and most current settings are reset to (Excluding the Network factory default values. This action will not reset the network Setting): setting.
- Page 33 Note: That you must make sure that the Firmware only applies to this CM2001, as once it is updated, it will be burned into FLASH ROM of system. 6. Once the firmware file was selected, select “Upgrade”. 7. The upgrade progress information will be displayed on the screen.
-
Page 34: Video Configuration
4.4. Video Configuration The CM2001 provides the ability to overlay the camera image with information such as date, time and/or text. 4.4.1. Common Text Overlay Setting: There are some important information can be embedded into image, including date, time, and/or text. - Page 35 4.4.2. Video Profile The CM2001 allows for the creation of individual user video profiles as shown below. Name: To assign a name to the selected profile. Video Type: There are three video types: H.264, MPEG4 and MJPEG. Resolution: There are three resolutions in each profile: 4CIF, CIF and QCIF.
- Page 36 To enable the multicast streaming, you shall make sure your Intranet does support multicast function. Otherwise, your Intranet may experience serious network storms. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
- Page 37 ROI means Region of Interest. Use this page to specify location of ROI windows. Only the maximum resolution profiles can be defined as ROI. In this model, the default ROI windows are profile 1 and 2. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
-
Page 38: Audio Conifguration
Select either Simplex or Full duplex (2-way audio) mode. Input Gain Adjust the gain of input audio. Output Gain Adjust the gain of output audio. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 39: User Privilege Access Configuration
Otherwise, only users in the database can view the video after login. The Administrator can access every function in the Access Right: CM2001. However, Viewers can only view the video and access limited functions. Authorize this user to control PTZ function or not. PTZ Control Manage a specific user’s account. -
Page 40: Email Configuration
Type the user name for the SMTP server if Authentication is Name Enabled. Authentication Password Type the password for the SMTP server if Authentication is Enabled. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us... - Page 41 Type the sender’s E-mail address. This address is used for reply e- E-mail From mails. Type the receiver’s e-mail address. E-mail To E-mail Subject Type the subject/title of the e-mail. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 42: Object Detection
To add or delete motion windows. Users can specify up to 10 Included and/or Excluded windows to monitor the video captured by the CM2001. By dragging the mouse on the image, you can change the position and size of the selected motion window accordingly. -
Page 43: Audio Detection
Defines the sensitivity value of audio detection. The lower value will Audio Alarm Level: equal more sensitivity. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343... -
Page 44: Storage Configuration
Delete the oldest files when SD card is xx% full. when disk is Lock the SD card. Once the SD card is locked, files can’t be Lock disk deleted. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us... - Page 45 User name Type the user name of the remote SAMBA server. Type the password for the remote SAMBA server. Password 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 46: Continuous Recording
Be careful, clicking this button will delete all continuous files Restart recorded in the SD card or the remote SAMBA server. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343... -
Page 47: Recording List
This page shows only the continuous recording files which are stored on the SD card or remote SAMBA server. The User may play or delete the selected file. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. -
Page 48: Event Server Configuration
Type the working directory path to the FTP server. FTP Passive Mode Select passive or active mode when connecting to FTP server. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. - Page 49 4.13.2. TCP Server In addition to sending video files to an FTP server, the CM2001 can also send event messages to a specified TCP server. Name Users can specify multiple TCP servers if desired. Therefore, the user needs to specify a name for each TCP server setting.
- Page 50 4.13.3. HTTP Server The CM2001 can also send event messages to specified HTTP servers. Name Users can specify multiple HTTP servers if desired. Therefore, the user needs to specify a name for each HTTP server setting. Type the server name or the IP address of the HTTP server.
- Page 51 4.13.4. SAMBA Server The CM2001 also can send a video stream to a specified SAMBA server. Most of the time, the SAMBA server will be a PC or NAS server. Name Users can specify multiple SAMBA servers if desired. Therefore, the user needs to specify a name for each SAMBA server setting.
-
Page 52: Event Schedule Configuration
4.14.1. Event Schedule Setting This menu is used to specify the specifics of an Event Trigger or a Schedule Trigger and activate the actions provided by the CM2001. A Schedule Trigger will be activated for a user-defined interval. Name Name of the Event or Schedule. - Page 53 Step 3 Trigger by: Motion Area (Added in Object Detection page) Step 4 Action: Send FTP (Add in Event Server -> FTP Server page) 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
- Page 54 To email address: You need to input the receiver email address. Subject: You could specify the email subject. iii. Message: You could specify the email content. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343...
- Page 55 Step 3 Trigger by: You do not need to choose it, because this will be triggered every 10 minutes. Step 4 Action: Voice Alert. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
- Page 56 Best Effort Duration Define the best effort duration of post-alarm. Max File Size Define the maximum buffer size of record file. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343...
- Page 57 On this page the User can check the status of the digital input and output port (DIDO). Input Status Show either inactive or active. Output Status Show either inactive or active. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 58: Appendix A: Troubleshooting And Faq
Follow the steps below. username and password? 1. Restore the factory default setting by pressing and holding more than 5 seconds on the reset button of the CM2001. 2. Reconfigure the device. What if I forgot the IP Insure your PC has UPnP enabled and it should discover the device address of the CM2001? through UPnP discovery (power cycle if required). - Page 59 Access the CM2001 • Maybe the IP Address of the Network Camera is already being Cannot access the login page and other web pages used by another device or computer. To confirm this possible of the Network Camera problem, disconnect the Network Camera from the network first, from Internet Explorer and then run the PING utility to check it out.
- Page 60 • If FTP does not work properly, ask your ISP or network administrator about the transferring mode of FTP server. Video quality of the CM2001 • The lens is dirty or dust is attached. Fingerprints, dust, stain, etc. The Camera image seems out of focus.
-
Page 61: Appendix B: Bandwidth Estimation
Appendix B. Bandwidth Estimation The frame rate of video transmitted from the CM2001 depends on connection bandwidth between user and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your CM2001. -
Page 62: Appendix C: Configure Port Forwarding Manually
Appendix C. Configure Port Forwarding Manually The CM2001 can be used with a router. If the CM2001 wants to be accessed from the WAN, its IP address needs to be setup as a fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup. - Page 63 80 to something else, such as 8080. Not all routers are the same, so refer to your user manual for specific instructions on how to open ports. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Page Middletown, PA 17057 Inc All Rights Reserved.
-
Page 64: Appendix D: Configure 3Gpp Function
To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Note: that to use the 3GPP function, it is strongly recommended to install the Networked CM2001 with a public and fixed IP address without any firewall protection.
