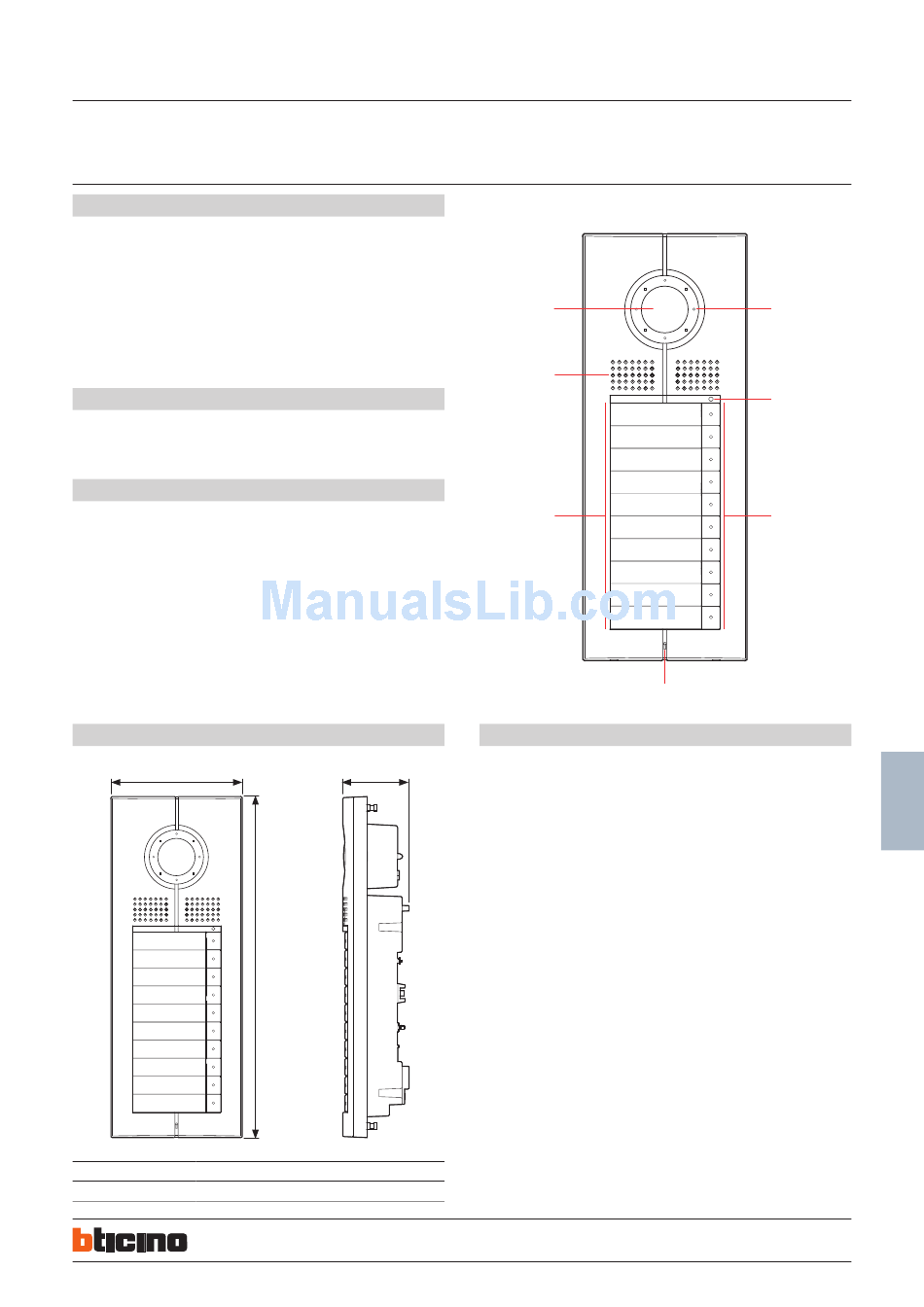

LEGRAND D45 SYSTEM Installation Manual page 173

10 Pushbuttons colour video entrance panel
Description
D45 System entrance panel (EP) with colour camera and 10 backlighted call pushbuttons
with possibility to direct call to the porter switchboard.
Possibility to send an alarm message to the switchboard when opening over 2 minutes
of the associated lock or when trying to remove the device.
Setup key functions via programming, physical configurators insertion or through
the dedicated software supplied with the product. Flush mounting installation with
dedicated box (supplied with the product).
Related items
322032 additional 16 pushbuttons panel
Technical data
Power supply:
Stand by absorption:
Max. operating absorption:
Camera sensor:
Camera resolution:
Lens:
Illumination of the viewing field:
Operating temperature:
Protection index:
Protection index against mechanical impact: IK07
Dimensional data
A
A (mm) B (mm)
125 325
30 Vdc
≤ 14 mA @ 30 V
≤ 230 mA @ 30 V
1/3"
540 TV lines (horizontal)
F3.6 mm
white LEDs
(-25) – (+55) °C
IP54
C
B
C (mm)
63
BT00765-a-en
Front view
7
6
5
Legend
1. LEDs for night lighting of the shooting field
2. Light sensor for automatic switching on of the night backlighting
3. Call pushbuttons (n° 10)
4. Microphone
5. Nameplates (n° 10)
6. Loudspeaker
7. Colour camera
03/06/2013
D45 System
322030
1
2
3
4
169
