GENERAL FEATURES

The configuration

The configuration assigns a
progressive address to the device
within the system, and programs it
using a simple, quick, and intuitive

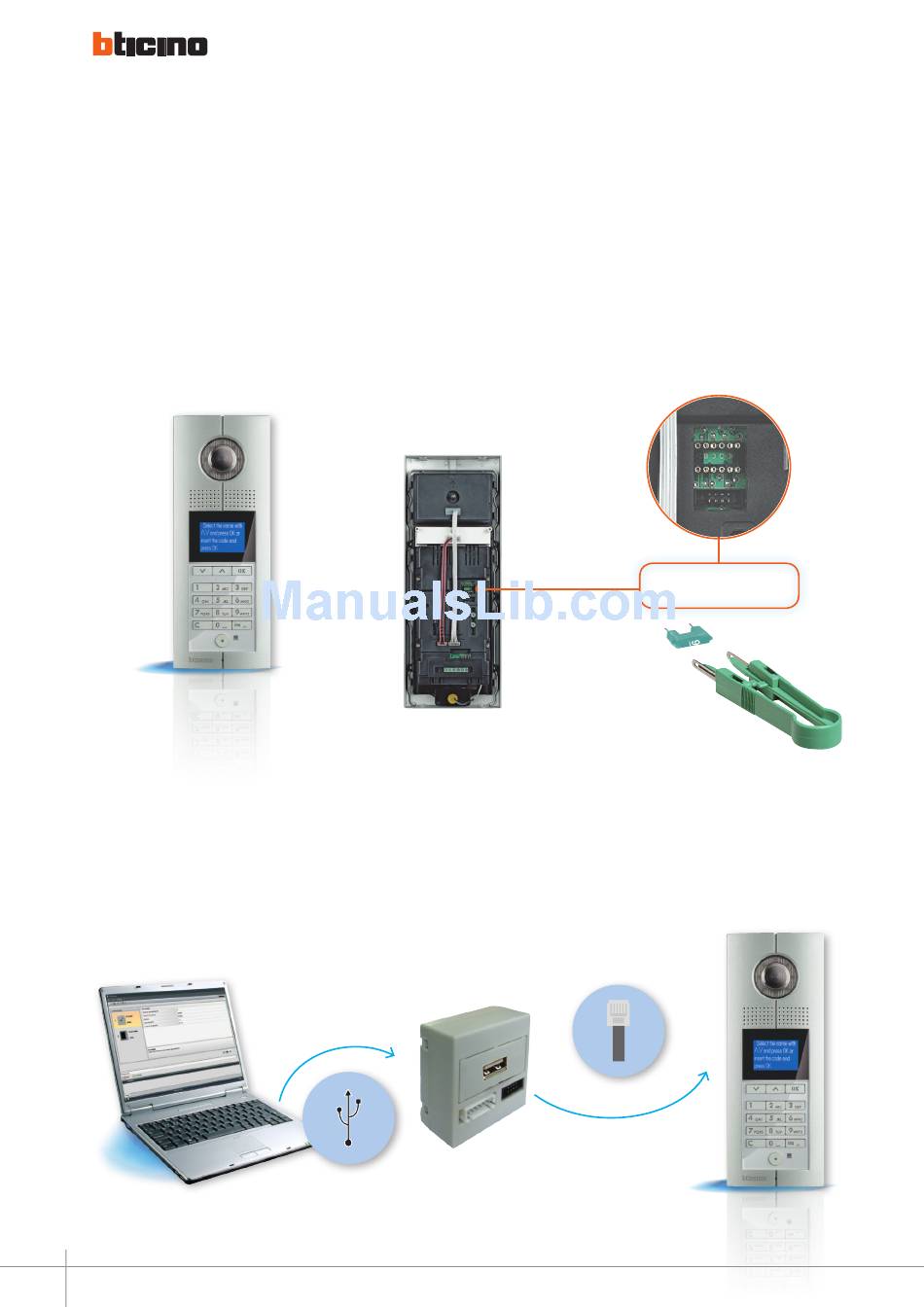

Physical configuration
System devices (entrance pannels, handsets and accessories system), must be physically configurated. insert configurators
with system power supply off.
Configuration with SF2 software
The system component devices (entrance panels, internal units, and system accessories) may be configured in advanced
mode using the PC and an interface (323020 configuration tool). The SF2 configuration and programming software gives the
possibility of completing the configuration and of programming the devices with a high degree of customisation.
Warning: remove the configurators of the devices.
22
procedure. d45 system devices may
be configured in two ways:
„ physical configuration (has priority
„
over the software configuration);
„ configuration with SF2 software.
„
To check the configuration
simply rotate the piece
