Summary of Contents for LEGRAND AI6100M1

  • Page 1 Wireless Video Intercom Kit (P/N AI6100M1) ™ adorne Wireless Video Room Unit (P/N AI6000M1) User’s Guide 1308223 REV. A 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not explicitly approved by Legrand could void your authority to operate this equipment.
  • Page 3: Table Of Contents

    6. Sending a Message 7. Playing a Message 8. Muting a Unit 9. Monitoring a Unit 10. Operation with a Battery-powered Door Unit 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 4: Introduction

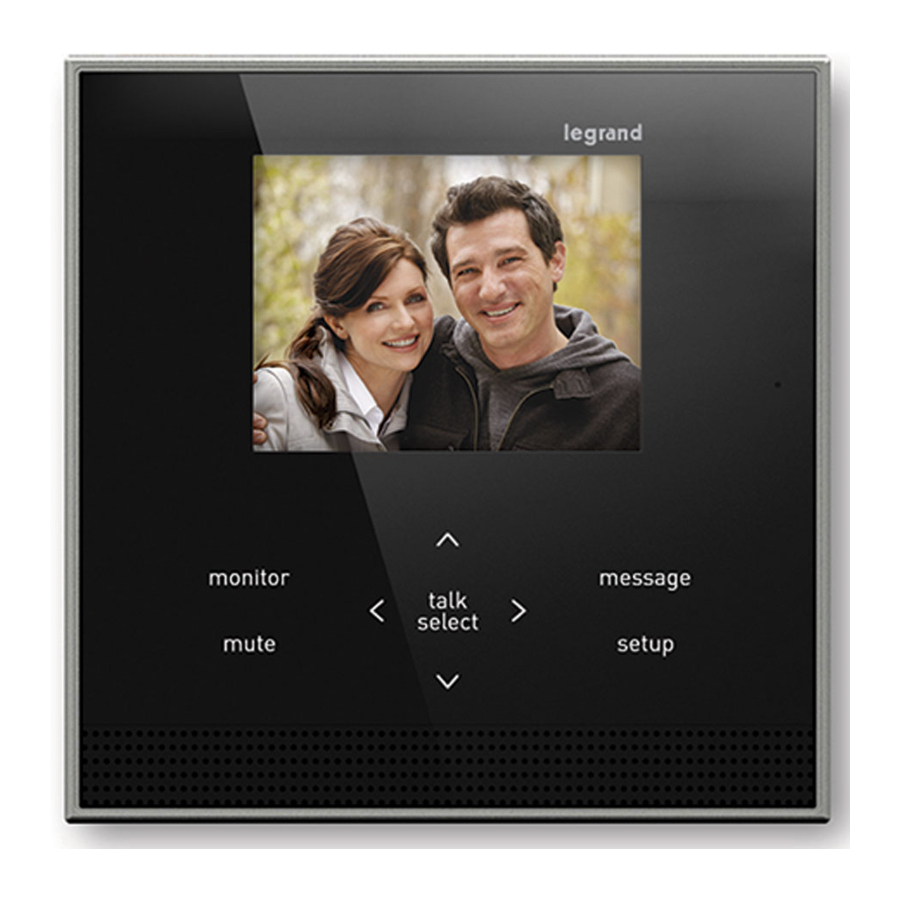

    Video Door Unit and up to three Video Room Units. The AI6100M1 Wireless Video Intercom Kit consists of the Video Door Unit and one Video Room Unit packaged together. Up to two additional Video Room Units (AI6000M1) can be ordered separately to create a maximized system.
  • Page 5: System Components Overview

    B. System Components Overview System Components The following components are typically utilized to make up the AI6100M1 Wireless Video Intercom Kit (see Figure 2). Figure 2  Wireless Video Door Unit: The Video Door Unit may be powered by existing doorbell...
  • Page 6: User Interface Overview

    There are also several icons discussed later that appear just to the left of the Unit name, such as Busy, Monitor, Mute, etc. that indicate the status of a particular Unit 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved.
  • Page 7: How To Navigate The User Interface

    Master Suite. Press the TALK/SELECT Button to Begin recording. Again, the Left Navigation Button Acts as the Back Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 8: Pop-Up Style Message Screens

    Room Unit to show the status of a particular Unit (in this case, the master suite user has placed his Room Unit in Mute). 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 9: System Personalization

    Leave the “Door 1” selection highlighted, which is the default name for Door Unit and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 10 Talk/Select Button to select that name for your Room Unit. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 11: Roomsettings

    Room Unit’s Theme (background/text colors), its Chime Volume, its Display Timeout, or its Brightness. With the Theme highlighted, press Talk/Select. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 12 Left arrow, or the Talk/Select Button to lock that volume in for this Room Unit. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 13 Talk/Select Button to lock in your setting. From the Room Settings screen, highlight the “Brightness Control” selection and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 14: Door Settings

    Talk/Select Button. To select one of the 18 provided door chimes, simply highlight the existing “Chime” and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 15 Notice that there is a selection (the last one) for customers who prefer their existing doorbell chime to any of Legrand’s. In that case, their chime sounds instead of any of the Legrand chimes, but the system still works the same.
  • Page 16 From the Door Settings screen, the next item is for Door Messaging. Highlight “Door Messaging” and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 17 NOTE: If the visitor doesn’t press the doorbell within 10 seconds after the Door Prompt plays, the Door Unit returns to normal operation. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 18: Time/Date Settings

    Up / Down arrows to adjust the setting. Press the Left Arrow to lock in the setting. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 19: System Settings (System Language)

    System Reset, and an area to run System Diagnostics. To go to the System Settings screen, highlight the “System Settings” line and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 20 (English, French, or Spanish) the Room Unit will utilize. Press the Left Arrow or Talk/Select to lock in the setting. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 21: System Configuration

    Unit. During the pairing operation, a Pop- up screen will let you know that the new unit is indeed being paired. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 22: Removing A Video Room Unit (Or Door Unit)

    Door Unit) from the system, on the master Video Room Unit, highlight the “Remove Paired Unit” line and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 23: System Diagnostics

    3. System Diagnostics If you are having issues with your Legrand Wireless Video Intercom System, Legrand Tech Support may ask you to run system diagnostics to help them remotely diagnose the issue. In that case, from the SetUp/Systems Settings screen, highlight the “System Diagnostics”...
  • Page 24: System Reset

    Although very unlikely, if you are having serious issues with your Legrand Wireless Video Intercom System, Legrand Tech Support may ask you to reset a Unit or the whole system and start from scratch. Before doing that, it would be a...
  • Page 25 E1 above (ie. Apply power to new Room Unit and from Master Room Unit “Add Paired Unit”). 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 26: System Operation

    Talk/Select Button, both Units went into “Talk Hands Free Mode”, and can communicate for 1 minute, similar to a normal phone conversation. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 27: Calling Another Video Room Unit

    If they want to talk longer than one minute, either Unit can press their Talk/Select Button, to begin a new session. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 28: Door Messaging

    Door Unit. Highlight Record by pressing the Right arrow and press the Talk/Select Button to begin recording. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 29 Talk/Select Button to hear the new Door Greeting. Press the Talk/Select Button again to hear the new Door Greeting. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 30: Recording A Message

    Master Suite (our only other Video Room Unit. So, highlight the Master Suite and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 31 To hear the message you just recorded, use the Right arrow to highlight the Play function and press the Talk/Select Button to hear the message. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 32: Sending A Message

    Once you have recorded a message and are happy with it, use the Right arrow to highlight “Send” and press the Talk/Select Button. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 33 At the other Video Room Unit, (in this case the Master Suite), the Message Button will be flashing to indicate there is a new message. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 34: Playing A Message

    Pop-up telling you there are no more messages. If you don’t want to erase the message, simply press a Left arrow to keep it. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343 www.onqlegrand.com...
  • Page 35: Muting A Unit

    Video Room Unit in Mute mode (see step 8 above). 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
  • Page 36: Operation With A Battery-Powered Door Unit

    Unit and the chime that plays at the Door Unit will be the old one. Press it one more time and the new chime will play. 301 Fulling Mill Road, Suite G ©Copyright 2013 by Legrand, Middletown, PA 17057 Inc All Rights Reserved. Page (800)-321-2343...
