3.0 PC/Web Configuration

The video images from the SCI Video Door Unit are available on a PC (or web enabled device such as a
Smartphone) connected to the same subnetwork as the CM2001. This works best on a PC with UPnP
enabled (Windows XP or newer) and may require you to "turn UPnP on" from the Network Control screen
on the PC. This will enable you to see an icon on your Network screen labeled CM2001-xxx (the xxx are
the last three digits of this CM2001's MAC address).
NOTE: The CM2001 is set for DHCP by default, meaning that it will look for and receive its IP
address from the router to which it is attached. If you power it on without a network connection, it
will use a default IP address of 192.168.0.20, and if your PC is on another IP subnet, it may not see
the CM2001 or show its icon on your Network device screen. However, if you simply plug a Cat 5e
jumper between the CM2001 and the router to which your PC is attached, the CM2001 will use the
IP address provided by the router. You may have to refresh your PC Network device screen to see
the CM2001 icon.

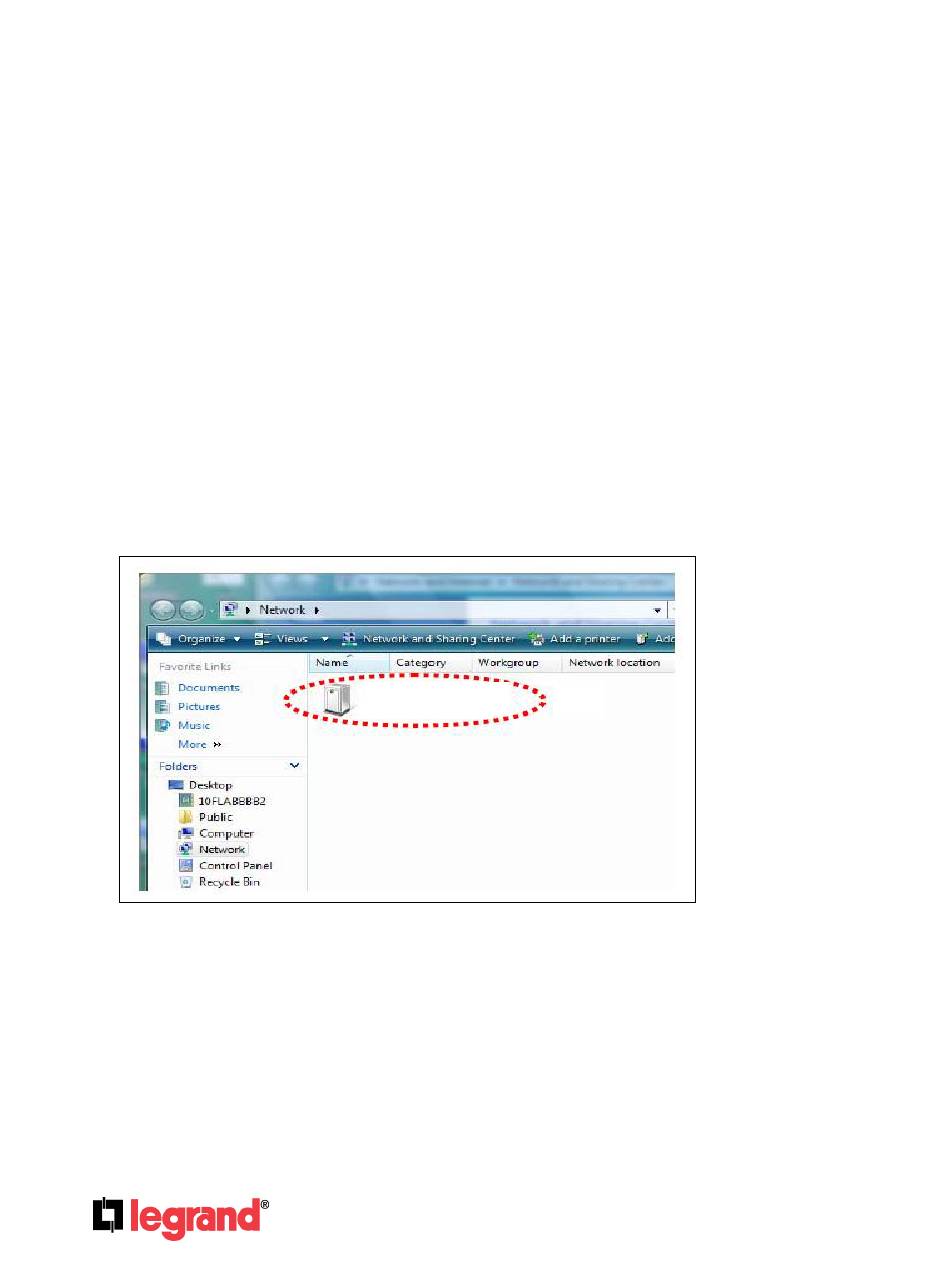

Once you see the CM2001-xxx icon (see Figure 5), double click it.
NOTE: If you are connecting with a Smartphone you will need to type in the IP address of the
CM2001 (ie. http//192.168.40.3). If you don't know what the CM2001's address is, you may need to
logon to the router and look at its client list.
If this is the first time you are accessing the CM2001, you will get a pop up screen asking for the
user name and password – type in "admin" and "admin". You can bookmark this action once
logged on to avoid this step in the future. You may also get a request to "Run" ActiveX control,
and you should do so.
CM2001-1FA
5
Page
Figure 5
