2. Install the oil pump into the engine (see
Left-Side Components in Section 3).
Testing Oil Pump
Pressure
NOTE: The engine must be warmed up to the
specified temperature for this test.
1. Connect the Arctic Cat Engine Tachometer (p/n
0644-275) to the engine.

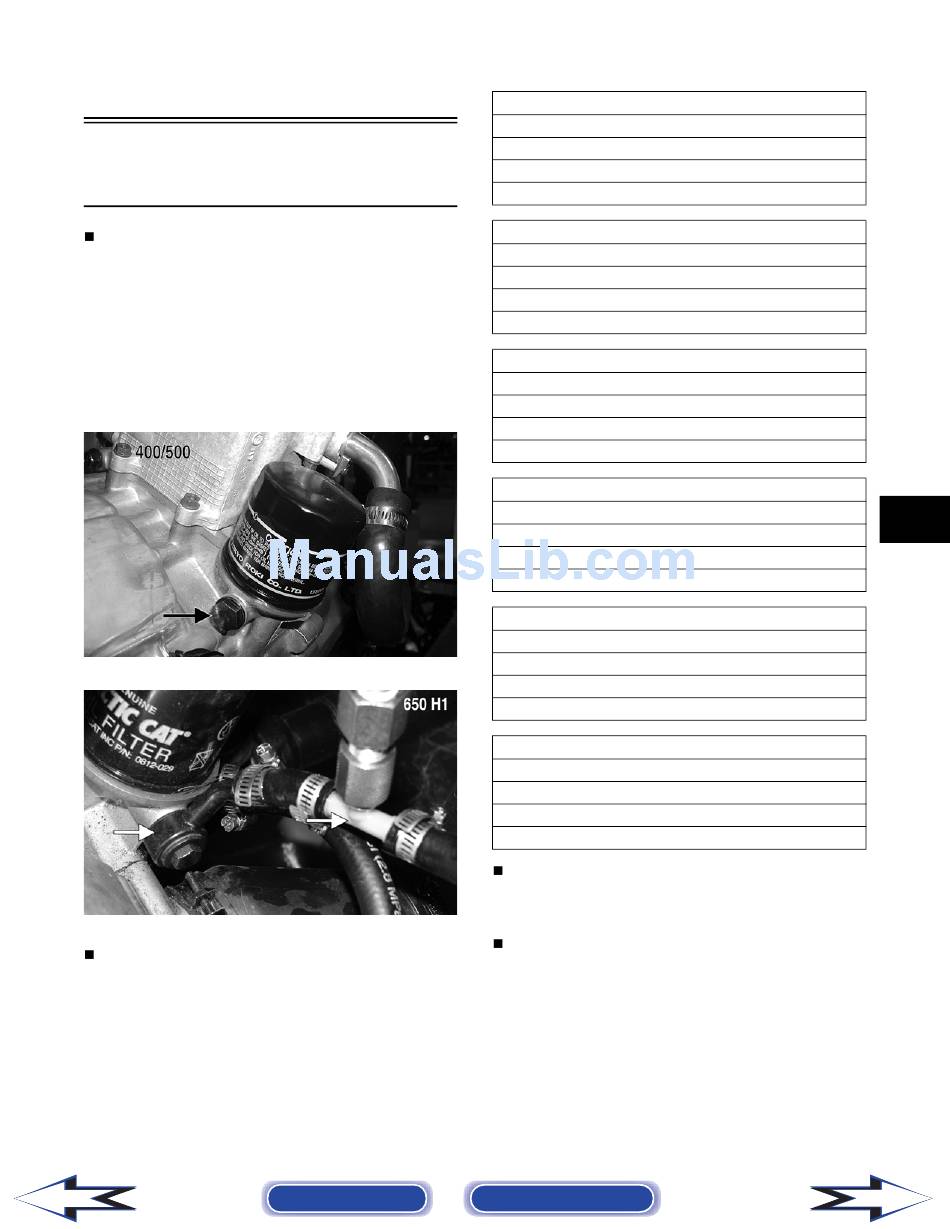

2. Connect the Oil Pressure Gauge (p/n 0444-039)
to the oil filter drain plug (400/500), in the oil
pressure switch port (650 V-Twin), or to the
upper oil cooler hose at the engine (650 H1).
NOTE: Some oil seepage may occur when
installing the oil pressure gauge. Wipe up oil resi-
due with a cloth.
3. Start the engine and run at the specified RPM.
Back
CD457B
PR265B
Back to TOC
4. The oil pressure gauge must read as specified.
400 (Manual Transmission)
OIL PRESSURE @ 3000 RPM
0.6-1.0 kg/cm²
(9-14 psi)
Oil Temperature - 60°C (140°F)
400 (Automatic Transmission)
OIL PRESSURE @ 3000 RPM
1.1-1.5 kg/cm²
(16-21 psi)
Oil Temperature - 60°C (140°F)
500 (Manual Transmission)
OIL PRESSURE @ 3000 RPM
1.2-1.6 kg/cm²
(17-23 psi)
Oil Temperature - 60°C (140°F)
500 (Automatic Transmission)
OIL PRESSURE @ 3000 RPM
1.3-1.7 kg/cm²
(18-24 psi)
Oil Temperature - 60°C (140°F)
650 H1
OIL PRESSURE @ 3000 RPM (From Oil Cooler)
1.40-2.46 kg/cm²
(15-25 psi)
Oil Temperature - 60°C (140°F)
650 V-Twin
OIL PRESSURE @ 4500 RPM
4.6-5.3 kg/cm²
(65-75 psi)
Oil Temperature - 110°C (230°F)
NOTE: If the oil pressure is lower than specified,
check for an oil leak, damaged oil seal, defective
oil pump, or restricted oil cooler.
NOTE: If the oil pressure is higher than speci-
fied, check for too heavy engine oil weight (see
Section 2), clogged oil passage, clogged oil filter,
or improper installation of the oil filter.
