Motor (3000-sheet tray elevator) removal

1
Remove the right cover. See
2
Remove the rear cover. See
3

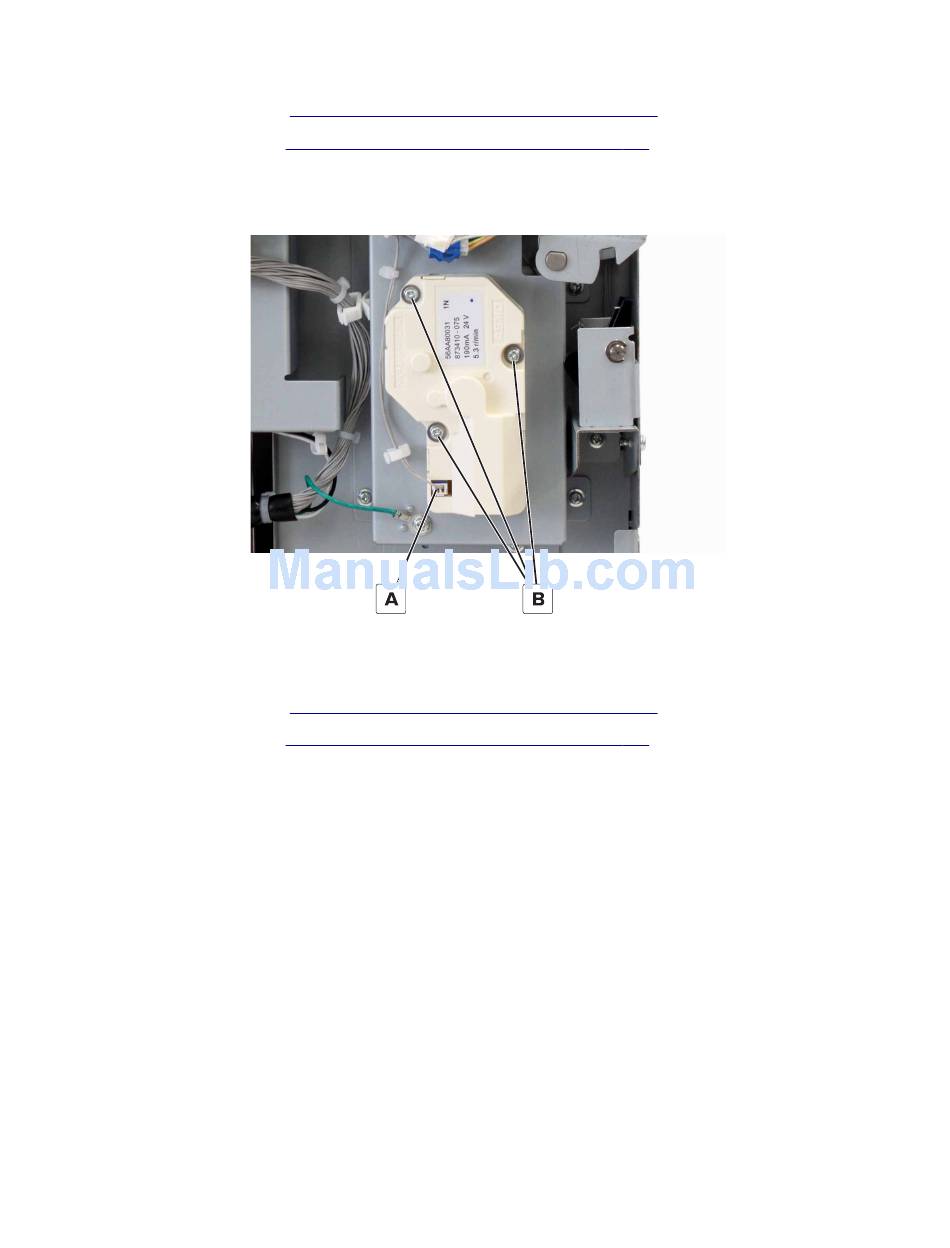

Disconnect the cable (A).
4
Remove the three screws (B), and then remove the motor.

3000-sheet tray set sensor actuator removal

1
Remove the right cover. See
2
Remove the rear cover. See
"3000-sheet tray right cover removal" on page
"3000-sheet tray rear cover removal" on page
"3000-sheet tray right cover removal" on page
"3000-sheet tray rear cover removal" on page
