Motor (Tray 2 Transport) Removal - Lexmark MS911 Service Manual

7

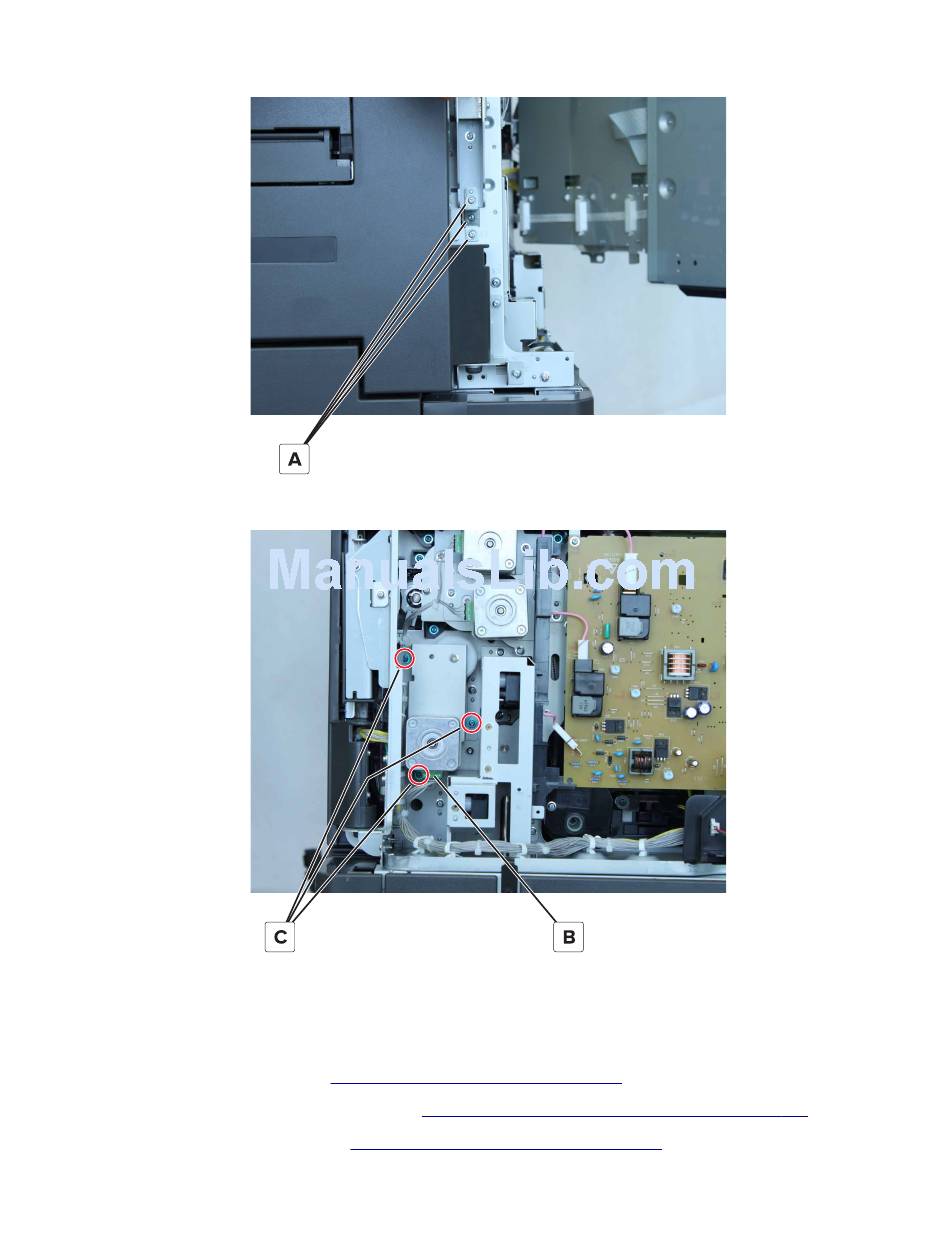

From the right, remove the three screws (A), and then remove the bracket.
8
From the rear, disconnect the cable (B), and then remove the three screws (C).
9
Remove the assembly.

Motor (tray 2 transport) removal

1
Remove the port access door. See
2
Remove the controller board access cover. See
3
Remove the engine board cover. See
"Port access door removal" on page
"Controller board access cover removal" on page
"Engine board cover removal" on page
