5

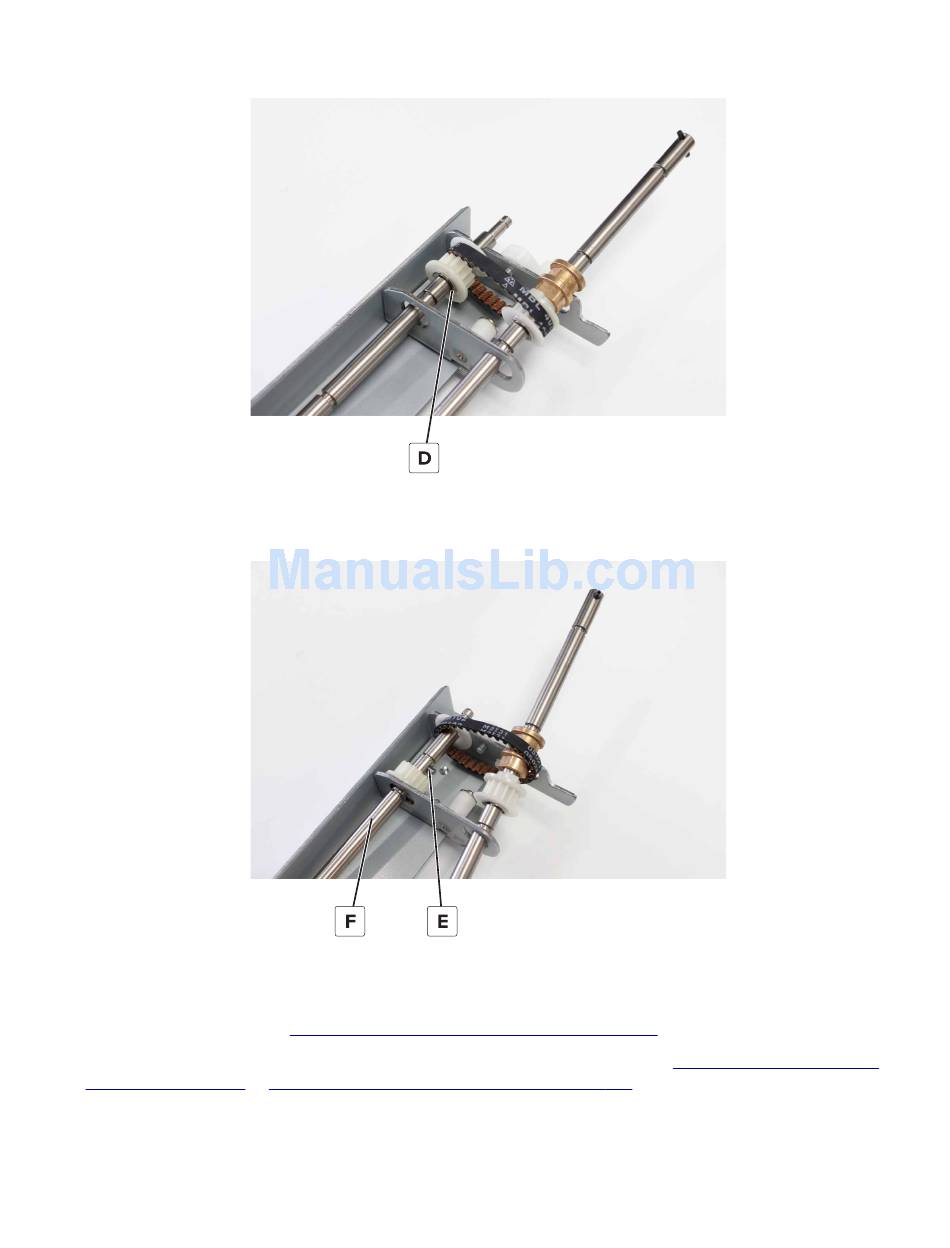

Remove the clip (D).
6
Remove the pin (E).
7
Pull out the shaft (F), and then remove the belt.

3000-sheet tray caster wheel removal

1
Remove the right cover. See
2
Depending on the caster to remove, remove the front cover or the rear cover. See
removal" on page 392
"3000-sheet tray right cover removal" on page
or "3000-sheet tray rear cover removal" on page
Repair information
392.
393.
389
"3000-sheet tray front cover
4021
