Low Insertion Force (LIF) connector

Warning—Potential Damage: When installing a cable into an LIF connector, avoid bending the edges of the cables
and damaging the contacts on the cables.
Inserting the cable
1

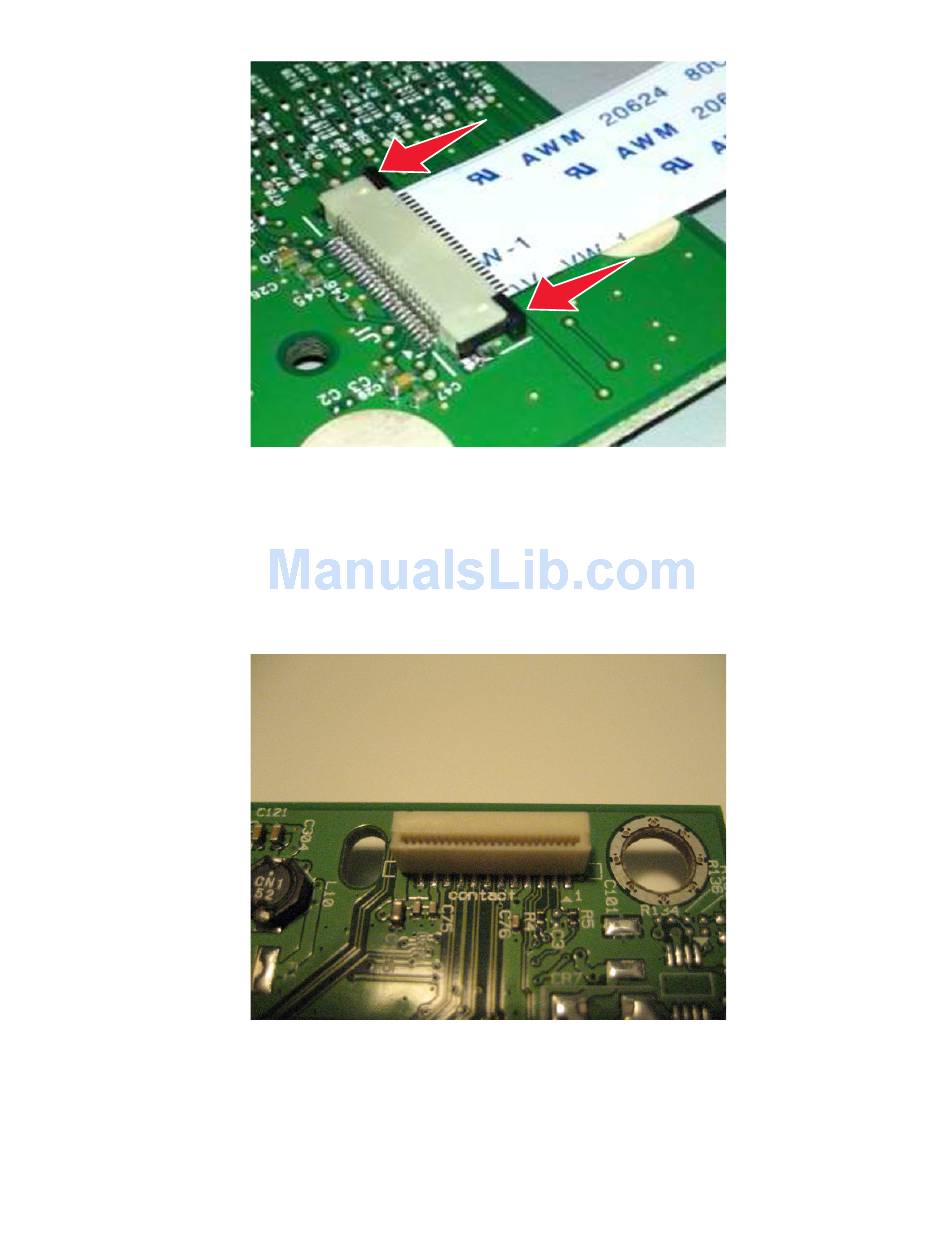

Make sure that the contacts of the controller board and connectors are on the same side.
2
Insert the cable.
Note: Make sure that the cable is installed straight into the connector to avoid intermittent failures.
