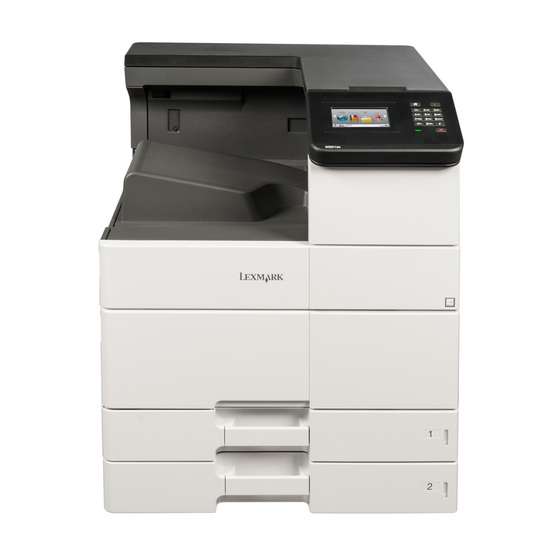

Lexmark MS911 Technical Reference

Hide thumbs Also See for MS911:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Quick Reference Manual
MS911, MX910, MX911, MX912
Technical Reference
September 2014
www.lexmark.com

Advertisement

Table of Contents
loading

Related Manuals for Lexmark MS911

Summary of Contents for Lexmark MS911

  • Page 1 MS911, MX910, MX911, MX912 Technical Reference September 2014 www.lexmark.com...
  • Page 2 September 2014 The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 3: Table Of Contents

    PCL emulation commands..........................19 GL/2 commands..............................24 Appendix B: PJL support..................28 Common variables for both printer languages....................28 Lexmark‑unique PJL variables for both printer languages................30 Common variables for PCL emulation.......................39 Lexmark‑unique variables for PCL emulation....................40 Common variables for PostScript emulation.....................40 Lexmark‑unique variables for PostScript emulation..................40 Lexmark‑unique LRESOURCE variables......................41...
  • Page 4 PJL messages for auto-continuable conditions....................42 PJL messages for attendance conditions......................49 PJL messages for paper handling........................69 PJL messages for paper jams..........................72 Service errors..............................78 Device attendance messages..........................78 Lexmark‑unique PJL commands........................78 Appendix C: PostScript support.................80 Supplemental operators............................80 Page device parameters............................83 User interpreter parameters..........................87 System interpreter parameters.........................88 Devices supported.............................90...

  • Page 5: Introduction

    Introduction Introduction Overview This edition of the Technical Reference contains information about the following printers or multifunction products (MFPs): • MS911 • MX910 • MX911 • MX912 Understanding letters after model numbers Some Lexmark printers may have one or more letters after the model number to indicate features.

  • Page 6: Learning About The Printer

    Caring for and maintaining the printer • Troubleshooting and solving problems Information on setting up and configuring the accessibility features Lexmark Accessibility Guide—This guide is available at of your printer http://support.lexmark.com. Help using the printer software Windows or Mac Help—Open a printer software program or application, and then click Help.

  • Page 7: Printer Control Language (Pcl) Page Formatting

    Printer Control Language (PCL) page formatting Printer Control Language (PCL) page formatting For more information on PCL, see the Printer Languages and Interfaces Technical Reference. It contains a complete listing with descriptions of PCL commands. To determine which PCL commands your printer supports, see “Appendix A: PCL support”...
  • Page 8 5.5 inches (140 mm) and 12.6 inches (320 mm). Area dimensions for this paper are listed in pel ranges. Paper ID 99 is supported for backward compatibility with other Lexmark printers. It has the same logical paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
  • Page 9 5.5 inches (140 mm) and 12.6 inches (320 mm). Area dimensions for this paper are listed in pel ranges. Paper ID 99 is supported for backward compatibility with other Lexmark printers. It has the same logical paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.

  • Page 10: Printer Job Language (Pjl)

    Printer Job Language (PJL) Printer Job Language (PJL) PJL commands information Your printer supports complete PJL commands, including certain commands that cause the printer to enter PCL emulation, PostScript emulation, and Personal Printer Data Stream (PPDS). For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference. To determine which commands your printer supports, see “Appendix B: PJL support”...

  • Page 11: Postscript (Ps) Emulation

    This is a Japanese Industry Standard (JIS) paper size. The same name designation is use by the JIS and International Organization for Standardization (ISO) for different paper sizes. This is a Lexmark‑unique paper size. This is an official PostScript paper size.

  • Page 12: Postscript Paper Tray Support

    PageSize in points. = Supported X = Not supported Printer model Operator Tray selected (corresponding MS911 MX910, MX911, MX912 image size is set) 11x17tray Tray with 11 x 17 in.‑size paper 12x18tray Tray with 12 x 18 in.‑size paper a3tray Tray with A3‑size paper...

  • Page 13: Postscript Envelope Size Support

    PostScript (PS) emulation = Supported X = Not supported Printer model Operator Tray selected (corresponding MS911 MX910, MX911, MX912 image size is set) executivetray Tray with executive-size paper foliotray Tray with folio-size paper ledgertray Tray with ledger‑size paper legaltray Tray with legal-size paper...

  • Page 14: Postscript Envelope Tray Support

    PostScript (PS) emulation Literal names supported = Supported X = Not Supported Literal names Printer model Literal name Compatible literal name MS911 MX910, MX911, MX912 b5envelope 176x250envelope c5envelope 162x229envelope com10envelope 4.125x9.5envelope dlenvelope 110x220envelope monarcenvelope 3.875x7.5envelope PostScript envelope tray support The envelope tray the printer selected when it receives an envelopetray operator is listed in “Envelopetray operator selections”...
  • Page 15 PostScript (PS) emulation = Supported X = Not supported Tray operators Printer model Operator Tray selected (corresponding image size is set) MS911 MX910, MX911, MX912 110x220envelopetray Tray with 110 x 220‑size envelopes dlenvelopetray Tray with 110 x 220‑size envelopes 162x229envelopetray Tray with 162 x 229‑size envelopes...

  • Page 16: Printer Specifications

    Note: Measurements apply to 300‑dpi, 600‑dpi, and 1200‑dpi printing. Electrical specifications Printer model Electrical specification MS911, MX910, MX911, and MX912 low‑voltage models 100–125 V at 50–60Hz, nominal 90–133 V, extreme MS911, MX910, MX911, and MX912 high‑voltage models 220–240 V at 50–60Hz, nominal (not available in all countries) 198–264 V, extreme...

  • Page 17: Physical Specifications

    Copy Not applicable 1000 Average power while scanning continuously Scan Not applicable Typical Electricity Consumption (kWh) Normal mode Lexmark MS911, MX910de, MX911de/dte, and MX912de/dxe maximum current while printing (Ampere) State MS911 MX910de MX911de/dte MX912de/dxe 110 V 120 V 230 V...

  • Page 18: Clearance Requirements

    This applies only to multifunction products. Dimensions of the printer in an open position Printer model Height Width Depth MS911 762 mm (30 in.) 953 mm (37.5 in.) 1127 mm (44.38 in.) MX910de, MX911de, MX912de 1307 mm (51.44 in.) 953 mm (37.5 in.) 1246 mm (49.07 in.)

  • Page 19: Appendix A: Pcl Support

    Appendix A: PCL support Appendix A: PCL support PCL emulation commands = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Decimal 8 Backspace (BS) Decimal 9 Horizontal Tab (HT) Decimal 10 Line Feed (LF) Decimal 12...
  • Page 20 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Collation ‑ Collated Copies (QTY) &d#A Select Underline Type &d#D Set Universal Height &f#F Set Universal Width &f#G Set Universal Feed Direction &f#O...
  • Page 21 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Top (Short-Edge) Offset Registration & Alphanumeric ID &n#W [operation] [string id] Palette Control &p#C Palette Control ID &p#I Select Palette &p#S Transparent Print Data &p#X[data]...
  • Page 22 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Secondary Font Typeface Selection )s#T Secondary Font Height (Point Size) )s#V Load Font Header )s#W[data] Set Raster Compression Mode *b#M Transfer Raster Data (Plane)
  • Page 23 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Download Dither Matrix *m#W[data] Print Quality *o#M(b) Mechanical Print Quality *o#Q Driver Configuration *o#W[data] Push/Pop Palette *p#P Set Pattern Reference Point *p#R...

  • Page 24: Gl/2 Commands

    Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Color Component Three *v#C Assign Color Index *v#I Source Transparency Mode *v#N Pattern Transparency Mode *v#O Foreground Color *v#S Select Current Pattern...
  • Page 25 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Character Plot Color Range Default Absolute Direction Relative Direction Define Label Terminator Define Variable Text Path Edge Rectangle Absolute Edge Polygon Edge Rectangle Relative...
  • Page 26 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Logical Operation Number of Pens Plot Absolute Pen Color Pen Down Polyline Encoded Polygon Mode Pixel Placement Plot Relative Pen Up Pen Width...
  • Page 27 Appendix A: PCL support = Supported X = Not supported Printer model Command Function MS911 MX910, MX911, MX912 Threshold Matrix Transparency Mode User Defined Line Fill Wedge Pen Width Units...

  • Page 28: Appendix B: Pjl Support

    Appendix B: PJL support Appendix B: PJL support Common variables for both printer languages = Supported X = Not supported Printer model Variable name MS911 MX910, MX911, MX912 AUTOCONT AUTOSELECT BINDING BITSPERPIXEL CLEARABLEWARNINGS CONTEXTSWITCH COPIES CPLOCK DENSITY DISKLOCK DUPLEX ECONOMODE...
  • Page 29 Appendix B: PJL support = Supported X = Not supported Printer model Variable name MS911 MX910, MX911, MX912 INTRAY3SIZE INTRAY4SIZE INTRAY5SIZE IOBUFFER IOSIZE JOBATTR JOBNAME JOBOFFSET LANG LOWTONER MANUALFEED MEDIASOURCE MEDIATYPE MPTRAY ORIENTATION OUTBIN PAGEPROTECT PAPER PARALLEL PASSWORD PERSONALITY POWERSAVE...

  • Page 30: Lexmark-Unique Pjl Variables For Both Printer Languages

    Printer model Variable name MS911 MX910, MX911, MX912 RESOURCESAVE RESOURCESAVESIZE STRINGCODESET TIMEOUT USERNAME VERIFYJOBTIMEOUT WIDEA4 Lexmark‑unique PJL variables for both printer languages = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LA5LOADING LACCESSIBILITYTIMEOUTEXTENSION LACTIVEBINRESET LADVANCEDSTATUS...
  • Page 31 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LCARDSTOCKLENGTH LCARDSTOCKLOADING LCARDSTOCKOUTBIN LCARDSTOCKTEXTURE LCARDSTOCKWEIGHT LCOLLATION LCOLORBALANCEBLACK LCOLORBALANCECYAN LCOLORBALANCEMAGENTA LCOLORBALANCEYELLOW LCOLORCORRECTION LCOLOREDLENGTH LCOLOREDLOADING LCOLOREDOUTBIN LCOLOREDTEXTURE LCOLOREDWEIGHT LCOLORMODEL LCOLORSAVER LCOLORTRAPPING LCUSTOMPAPERUNITS LCUSTOMPAPERWIDTH LCUSTOMPAPERHEIGHT...
  • Page 32 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LCUSTOMTYPE2LOADING LCUSTOMTYPE2MEDIA LCUSTOMTYPE2NAME LCUSTOMTYPE2OUTBIN LCUSTOMTYPE2TEXTURE LCUSTOMTYPE2WEIGHT LCUSTOMTYPE3LENGTH LCUSTOMTYPE3LOADING LCUSTOMTYPE3MEDIA LCUSTOMTYPE3NAME LCUSTOMTYPE3OUTBIN LCUSTOMTYPE3TEXTURE LCUSTOMTYPE3WEIGHT LCUSTOMTYPE4LENGTH LCUSTOMTYPE4LOADING LCUSTOMTYPE4MEDIA LCUSTOMTYPE4NAME LCUSTOMTYPE4OUTBIN LCUSTOMTYPE4TEXTURE LCUSTOMTYPE4WEIGHT LCUSTOMTYPE5LENGTH LCUSTOMTYPE5LOADING...
  • Page 33 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LCUSTOMTYPE6NAME LCUSTOMTYPE6OUTBIN LCUSTOMTYPE6TEXTURE LCUSTOMTYPE6WEIGHT LDOWNLOADTARGET LDRYTIMEDELAY LDUPLEXLEFTMARGINOFFSET LDUPLEXTOPMARGINOFFSET LDUPLICATEHELDJOBS LECOMODE LENVELOPEENHANCE LENVELOPELENGTH LENVELOPEOUTBIN LENVELOPETEXTURE LENVELOPEWEIGHT LESCCHAR LFAXFOLD LFAXJOBWAITFORTONER LFAXREDIAL LFAXREDIALFREQUENCY LFAXRESOLUTION LFAXTRANSMISSIONLOG...
  • Page 34 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LHEAVYGLOSSYOUTBIN LHEAVYGLOSSYTEXTURE LHEAVYGLOSSYWEIGHT LHEAVYPAPERLOADING LHEAVYPAPEROUTBIN LHEAVYPAPERTEXTURE LHEAVYPAPERWEIGHT LHELDJOBPRTORDER LHIBERNATETIMEOUT LHIBERNATETIMEOUTOVERRIDE LHOLEPUNCHALARM LHOLEPUNCHMODE LHONORINIT LIMAGEESS LIMAGEBRIGHTNESS LIMAGECONTRAST LIMAGEENHANCE LIMAGEENHANCETYPE LIMAGEORIENTATION LIMAGESATURATION LIMAGESMOOTHING LINFEEDER...
  • Page 35 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LLABELSLOADING LLABELSOUTBIN LLABELSTEXTURE LLABELSWEIGHT LLASTTRAYRENUMBER LLEFTMARGINOFFSET LLETTERHEADLENGTH LLETTERHEADLOADING LLETTERHEADOUTBIN LLETTERHEADTEXTURE LLETTERHEADWEIGHT LLIGHTPAPERLOADING LLIGHTPAPEROUTBIN LLIGHTPAPERTEXTURE LLIGHTPAPERWEIGHT LLINEDETAIL LMANUALCOLORRGBTEXT LMANUALCOLORRGBGRAPHICS LMANUALCOLORRGBIMAGE LMANUALCOLORCMYKTEXT LMANUALCOLORCMYKGRAPHICS LMANUALCOLORCMYKIMAGE...
  • Page 36 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LMULTIPAGEBORDER LMULTIPAGEORDER LMULTIPAGEPRINT LMULTIPAGEVIEW LNPAP LOPTIONALOUTBIN1NAME LOPTIONALOUTBIN2NAME LOPTIONALOUTBIN3NAME LOPTIONALOUTBIN4NAME LOPTIONALOUTBIN5NAME LOPTIONALOUTBIN6NAME LOPTIONALOUTBIN7NAME LOPTIONALOUTBIN8NAME LOPTIONALOUTBIN9NAME LOPTIONALOUTBIN10NAME LOUTBINCONFIG LOVERFLOWOUTBIN LOVERFLOWTIMER LPAGECOUNT LPAGEMODE LPAGERANGE LPAGESREMAININGDISPLAY...
  • Page 37 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LPPDSFORMLINES LPPDSLINESPERINCH LPREPRINTEDLENGTH LPREPRINTEDLOADING LPREPRINTEDOUTBIN LPREPRINTEDTEXTURE LPREPRINTEDWEIGHT LPRINTBUFFER LPRINTSCREENS LPRINTHEADIDLETIME LPRINTERUSAGE LPRINTMENUSBUTTON LPRINTQUALITY LPUNCH LQUIETMODE LREAROUTBINNAME LRECYCLEDLOADING LRECYCLEDMEDIA LRECYCLEDOUTBIN LRECYCLEDTEXTURE LRECYCLEDWEIGHT LREPEATPRINTLIMIT...
  • Page 38 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LROUGHPAPEROUTBIN LROUGHPAPERTEXTURE LROUGHPAPERWEIGHT LSCREENING LSEPARATORSHEETS LSEPARATORSOURCE LSMALLFONTENHANCER LSSGALVO LSTANDARDOUTBINNAME LSTAPLE LSTAPLESEMPTYALARM LSTAPLETESTBIN LSTAPLETESTSOURCE LSTROKEWIDTH LSUBSTITUTESIZE LTOPBINROTATE LTOPMARGINOFFSET LTRANSPARENCYLENGTH LTRANSPARENCYOUTBIN LTRANSPARENCYTEXTURE LTRANSPARENCYWEIGHT LTRAY1AUTOSIZE...

  • Page 39: Common Variables For Pcl Emulation

    Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Variable name MS911 MX912 LTRAY5PAPERTYPE LTRAY1RENUMBER LTRAY1SENSEDTYPEPAPER LTRAY1SENSEDTYPETRANSPARENCY LTRAY2SENSEDTYPEPAPER LTRAY2SENSEDTYPETRANSPARENCY LTRAY3SENSEDTYPEPAPER LTRAY3SENSEDTYPETRANSPARENCY LTRAY4SENSEDTYPEPAPER LTRAY4SENSEDTYPETRANSPARENCY LTRAYINSERTMESSAGEDELAY LTYPE1FONTS LUSDEFAULTS LVINYLLABELSLOADING LVINYLLABELSOUTBIN LVINYLLABELSTEXTURE LVINYLLABELSWEIGHT LWRITECOVERAGE Common variables for PCL emulation...

  • Page 40: Lexmark-Unique Variables For Pcl Emulation

    Appendix B: PJL support Lexmark‑unique variables for PCL emulation = Supported X = Not supported Printer model Variable name MS911 MX910, MX911, MX912 LA4WIDTH LASSIGNFEEDER LASSIGNMANUALENVELOPE LASSIGNMANUALPAPER LASSIGNMPFEEDER LASSIGNTRAY1 LASSIGNTRAY2 LASSIGNTRAY3 LASSIGNTRAY4 LASSIGNTRAY5 LBITMAPROUNDING LCOLOREXTENSIONS LFONTCOMPATIBILITY LFONTPRIORITY Common variables for PostScript emulation...

  • Page 41: Lexmark-Unique Lresource Variables

    Appendix B: PJL support Lexmark‑unique LRESOURCE variables = Supported X = Not supported Printer model Variable name MS911 MX910, MX911, MX912 LDESCRIPTION LRWLOCK LWLOCK Status Readback commands = Supported X = Not supported Printer model Command MS911 MX910, MX911, MX912...

  • Page 42: Pjl Messages For Auto-Continuable Conditions

    Appendix B: PJL support PJL messages for auto-continuable conditions = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 30014 PPDS font error [50] PPDS Font Error Intervention Required - 30016...
  • Page 43 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 30016 Held Jobs May Not Be Restored Held Jobs May Not Be Restored Intervention Required -...
  • Page 44 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 30018 Standard USB port disabled [56] Standard USB Port Disabled Rear USB port disabled [56] Intervention Required -...
  • Page 45 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 30075 Replace paper pick rollers in Scheduled Maintenance [source], use parts and instructions in tray 1 or tray 2...
  • Page 46 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 30112 Serial port [x] disabled [56] Serial Port [x] Disabled Intervention Required - 30112 USB port [x]...
  • Page 47 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 32030 Too many disks installed [58] Too Many Disks Installed Intervention Required - 32030 Too many trays.
  • Page 48 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 40038 Fuser/Belt Exhausted [80] Fuser/Belt Exhausted Intervention Required - 40038 ITU Maintenance [83] ITU Maintenance Intervention Required -...

  • Page 49: Pjl Messages For Attendance Conditions

    Appendix B: PJL support PJL messages for attendance conditions = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention required - 32015 Disk corrupted Disk Corrupted. Reformat? Intervention Required - 32030 Too many bins...
  • Page 50 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40019 Remove paper from [linked set Remove Paper [linked set bin name] bin name] Intervention Required -...
  • Page 51 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40021 Close finisher top cover Close Finisher Top Cover Intervention Required - 40021 Close front or...
  • Page 52 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40021 Defective Defective Ink Cartridge Cartridge CMYK [31] Intervention Required - 40021 Defective Print Cartridge [31]...
  • Page 53 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40021 Cartridge part number Unsupported Cartridge unsupported by device [32.xx] Intervention Required - 40021 Tray [x] Size...
  • Page 54 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40022 Paper Jam [2xx] Paper Jam Intervention Required - 40025 Remove packaging material Remove Packaging Material...
  • Page 55 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40029 Install Bin [x] or Cancel Job Install Bin [x] or Cancel Job Intervention Required -...
  • Page 56 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40038 All Photo Devs Exhausted [84] 84 All Photo Devs Exhausted Intervention Required - 40038 Black Photo Dev...
  • Page 57 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40038 Yellow Toner Low [88] Toner Low Magenta Toner Low [88] Cyan Toner Low [88] Black Toner Low...
  • Page 58 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40087 Incompatible Bin [x] [59] Incompatible Bin [x] Intervention Required - 40087 Incompatible output bin [x]...
  • Page 59 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40129 Replace [Color] photoconductor Replace Photoconductor [84.xx] Intervention Required - 40141 Replace waste toner bottle Replace Waste Toner [82.xx]...
  • Page 60 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40201 Cyan cartridge very low [88.xx] Cartridge Very Low Intervention Required - 40201 Replace cyan cartridge Replace Cartridge [88.2x]...
  • Page 61 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40204 [Color] photoconductor Photoconductor Low low [84.xx] Intervention Required - 40204 Photoconductor low [84] Photoconductor Low...
  • Page 62 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40204 [Color] developer wear Developer Mid Warning warning [85.xy] Intervention Required - 40204 [Color] developer near...
  • Page 63 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40300 Replace unsupported Unsupported Print cartridge Cartridge [32.xy] Intervention Required - 40300 Replace unsupported PC/Imaging Unit...
  • Page 64 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40310 Cyan cartridge part number Cartridge Part Number unsupported by Unsupported device [32.xx] Intervention Required -...
  • Page 65 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40315 Maintenance kit nearly low Maintenance Kit Nearly [80.xy] Intervention Required - 40315 [x] maintenance kit nearly low Maintenance Kit1 [x] Near [ 80.xy]...
  • Page 66 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40316 [x] maintenance kit nearly low Maintenance Kit1 [x] Near [ 80.xy] Intervention Required - 40316 [x] maintenance kit low [80.xy]...
  • Page 67 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40405 Black photoconductor [Color] Photoconductor missing [84.41] Missing Intervention Required - 40406 Cyan PC Unit missing [84.41]...
  • Page 68 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code Return string MS911 MX910, MX911, MX912 Intervention Required - 40410 Missing or defective cyan Missing or Defective cartridge Cartridge [31.xx] Intervention Required - 40411 Missing magenta...

  • Page 69: Pjl Messages For Paper Handling

    PJL messages for paper handling = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 11xyy Tray [paper source #] Empty Tray [x] Empty Intervention Required - 12x01 Tray [paper source #]...
  • Page 70 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 40019 Scanner jam, remove all originals from the scanner Scanner Static Jam - [2yy.xx] Paper Stop...
  • Page 71 Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 41xyy Load Manual Feeder with [Custom Type Name] Load Manual Request Intervention Required - 41xyy Load Manual Feeder...

  • Page 72: Pjl Messages For Paper Jams

    Appendix B: PJL support = Supported X = Not supported Printer model MX910, MX911, Message Status code Return string MS911 MX912 Intervention Required - 41xyy Change [paper source] to [paper type] [paper size] Change Request Intervention Required - 41xyy Change [paper source] to...
  • Page 73 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code MS911 MX910, MX911, MX912 Intervention Required - 4204x Paper Jam Intervention Required - 4205x Paper Jam Intervention Required - 4206x Paper Jam Intervention Required -...
  • Page 74 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code MS911 MX910, MX911, MX912 Intervention Required - 424yx Paper Jam Intervention Required - 424xz Paper Jam Intervention Required - 4241wy Paper Jam Intervention Required -...
  • Page 75 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code MS911 MX910, MX911, MX912 Intervention Required - 4251wy Paper Jam Intervention Required - 4251x Paper Jam Intervention Required - 4252w Paper Jam Intervention Required -...
  • Page 76 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code MS911 MX910, MX911, MX912 Intervention Required - 4271z Paper Jam Intervention Required - 4272 Paper Jam Intervention Required - 4272z Paper Jam Intervention Required -...
  • Page 77 Appendix B: PJL support = Supported X = Not supported Printer model Message Status code MS911 MX910, MX911, MX912 Intervention Required - 4284z Paper Jam Intervention Required - 4285w Paper Jam Intervention Required - 4285z Paper Jam Intervention Required -...

  • Page 78: Service Errors

    MX910, MX911, MX912 RDYMSG OPMSG STMSG Lexmark‑unique PJL commands These commands are Lexmark extensions which have been added to the PJL command set to provide the user with remote control of many printer functions. = Supported X = Not supported Printer model...
  • Page 79 Appendix B: PJL support = Supported X = Not supported Printer model Command MS911 MX910, MX911, MX912 • LBYPASSPASSWORD LBEEP LENGINEPRT LENTERRETAILMODE LESCAPECHAR LEXITRETAILMODE LFAX PHONENUMBER LFLASH LINITIALIZEPRINTER LPORTROTATE LPRINT testpage • LPRINTDIRECTORY • LPRINTTESTPAGE • LPRINTMENUS • LPRINTPCLFONTS •...

  • Page 80: Appendix C: Postscript Support

    Appendix C: PostScript support Appendix C: PostScript support Supplemental operators = Supported X = Not supported Printer model Operator name MS911 MX910, MX911, MX912 appletalktype buildtime byteorder checkpassword currentfilenameextend currentmanualduplexmode currentuniversalsize defaulttimeouts deletefile devcontrol devdismount devforall devformat devmount devstatus diskonline...
  • Page 81 Appendix C: PostScript support = Supported X = Not supported Printer model Operator name MS911 MX910, MX911, MX912 enginesync file filenameforall fileposition firstside fontnonzerowinding hardwareiomode idlefonts ignoresize initializedisk jobname jobsource jobtimeout manualfeed manualfeedtimeout newsheet pagecount pagesprinted papertray printername product PS2fonts...
  • Page 82 Appendix C: PostScript support = Supported X = Not supported Printer model Operator name MS911 MX910, MX911, MX912 sccbatch sccinteractive setcoverpage setdefaulttimeouts setdoidlefonts setdojamrecovery setdoprinterrors setdoret setdostartpage setdosysstart setduplexmode setenginesync setethernetaddress setfilenameextend setfileposition sethardwareiomode setidlefonts setignoresize setjobtimeout setmanualduplexmode setpapertray setprintername...

  • Page 83: Page Device Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model Operator name MS911 MX910, MX911, MX912 softwareiomode tumble userdiskpercent waittimeout Page device parameters = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 BeginPage Collate DeferredMediaSelection DeviceRenderingInfo •...
  • Page 84 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 • ColorCorrection • ColorBalance • ColorSaver • ImageBrightness • Imageess • ImageContrast • ImageSaturation • ManualColor • PrintQuality Duplex EndPage ExitJamRecovery HWResolution ImagingBBox InputAttributes •...
  • Page 85 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 Install ManualFeed ManualFeedTimeout MediaColor MediaPosition MediaType MediaWeight NumCopies NupDetails • Rows • Columns • Orientation • Border • Order • Type • LandscapeOverride OutputAttributes •...
  • Page 86 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 • 8 - Optional Bin 8 • 9 - Optional Bin 9 • 10 - Optional Bin 10 • Priority OutputPage OutputType PageDeviceName PageSize Policies •...

  • Page 87: User Interpreter Parameters

    Appendix C: PostScript support User interpreter parameters = Supported X = Not supported Printer model Default MS911 MX910, MX911, MX912 AccurateScreens false CollatedCopies Collation - Collated Copies (QTY) value HalftoneMode IdiomRecognition true JobName JobTimeout JobTimeout system parameter MaxDictStack MaxExecStack 10015...

  • Page 88: System Interpreter Parameters

    Appendix C: PostScript support System interpreter parameters = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 BuildTime ByteOrder CurDisplayList CurFontCache CurFormCache CurInputDevice CurOutlineCache CurOutputDevice CurPatternCache CurScreenStorage CurSourceList CurUPathCache DisableFastProcs DoPrintErrors DoStartPage EnableExtraFonts EngineBoot EngineCode EngineSpeed EnvironmentSave FactoryDefaults...
  • Page 89 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 languagelevel MaxDisplayList MaxDisplayAndSourceList MaxFontCache MaxFormCache MaxImageBuffer MaxOutlineCache MaxPatternCache MaxPermanentVM MaxRasterMemory MaxScreenStorage MaxSourceList MaxUPathCache PageCount PanelCode PrinterCode PrinterName RamSize RealFormat Revision SearchBuiltinFontsFirst SerialNumber StartJobPassword StartupMode...

  • Page 90: Devices Supported

    Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 WaitTimeout Devices supported = Supported X = Not supported Printer model Device MS911 MX910, MX911, MX912 %AppSocketA% %AppSocketB% %AppSocketC% %AppSocketD% %CalendarA% %CalendarB% %CalendarC% %CalendarD%...
  • Page 91 Appendix C: PostScript support = Supported X = Not supported Printer model Device MS911 MX910, MX911, MX912 %IP_D% %IR_A% %IR_B% %IR_C% %IR_D% %LexLinkA% %LexLinkB% %LexLinkC% %LexLinkD% %LocalTalkA% %LocalTalkB% %LocalTalkC% %LocalTalkD% %LPR_A% %LPR_B% %LPR_C% %LPR_D% %ParallelA% %ParallelB% %ParallelC% %ParallelD% %PrintServerA% %PrintServerB%...

  • Page 92: Device Parameters

    Appendix C: PostScript support = Supported X = Not supported Printer model Device MS911 MX910, MX911, MX912 %SerialA% %SerialB% %SerialC% %SerialD% %TokenRingPhysicalA% %TokenRingPhysicalB% %TokenRingPhysicalC% %TokenRingPhysicalD% %TokenTalkA% %TokenTalkB% %TokenTalkC% %TokenTalkD% %USB_A% %USB_B% %USB_C% %USB_D% Device parameters = Supported X = Not supported...
  • Page 93 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 PCLSmartSwitch PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %Serial%, %SerialA%, %SerialB%, %SerialC%, %SerialD% Baud CheckParity DataBits DelayedOutputClose Enabled Filtering FlowControl HasNames HonorDSR...
  • Page 94 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 LocalTalkType NodeID PCLSmartSwitch PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %EtherTalk%, %EtherTalkA%, %EtherTalkB%, %EtherTalkC%, %EtherTalkD% DelayedOutputClose Enabled EthernetAddress EtherTalkType EtherTalkZone Filtering HasNames...
  • Page 95 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 Type Device Parameters for the Communication Device %USB%, %USB_A%, %USB_B%, %USB_C%, %USB_D% DelayedOutputClose Enabled Filtering HasNames Interpreter PCLSmartSwitch PortLocation PSSmartSwitch Type Device Parameters for the Communication Device %TokenTalk%, %TokenTalkA%, %TokenTalkB%, %TokenTalkC%,...
  • Page 96 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 HasNames Interpreter PortLocation Type Device Parameters for the Communication Device %RemotePrinter%, %RemotePrinterA%, %RemotePrinterB%, %RemotePrinterC%, %RemotePrinterD% DelayedOutputClose Enabled Filtering HasNames Interpreter PortLocation Type Device Parameters for the Communication Device %PrintServer%, PrintServerA%, PrintServerB%, %PrintServerC%,...
  • Page 97 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 Enabled HasNames Interpreter PortLocation Type Device Parameters for the Communication Device %IP%, %IP_A%, %IP_B%, %IP_C%, %IP_D% GatewayAddress IPAddress IPAddressDynamic NetworkMask Physical PortLocation Type Device Parameters for the Communication Device %EthernetPhysical%, %EthernetPhysicalA%, %EthernetPhysicalB%,...
  • Page 98 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 TimeToStandby Type Device Parameters for the Parameters Device %Console% Language Type Device Parameters for the Parameters Device %Calendar%, %CalendarA%, %CalendarB%, %CalendarC%, %CalendarD% Hour Minute...
  • Page 99 Appendix C: PostScript support = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 Type Writeable Device Parameters for the Parameters Device %flash1% BlockSize Free HasNames InitializeAction LogicalSize Mounted PhysicalSize Removable Searchable SearchOrder Type Writeable Device Parameters for the Parameters Device %rom%...

  • Page 100: Postscript Message Keys Commands

    Appendix C: PostScript support PostScript message keys commands = Supported X = Not supported Printer model MS911 MX910, MX911, MX912 status source...

  • Page 101: Index

    PJL, Lexmark‑unique variables for Status Readback 41 messages LRESOURCE 41 unique variables, both languages 30 PJL, attendance conditions 49 PJL, Lexmark‑unique variables for PCL USTATUS variables 41 PJL, auto-continuable conditions 42 emulation 40 PJL commands, information location PJL, device attendance 78 PJL, Lexmark‑unique variables for...
  • Page 102 Index publications where to find 6 required clearance 18 shipping and storage ranges 18 size, printer 17 supplemental operators PostScript 80 tray operators PostScript 12 weight, printer 17...
