Removal Procedures - Lexmark MS911 Service Manual

5

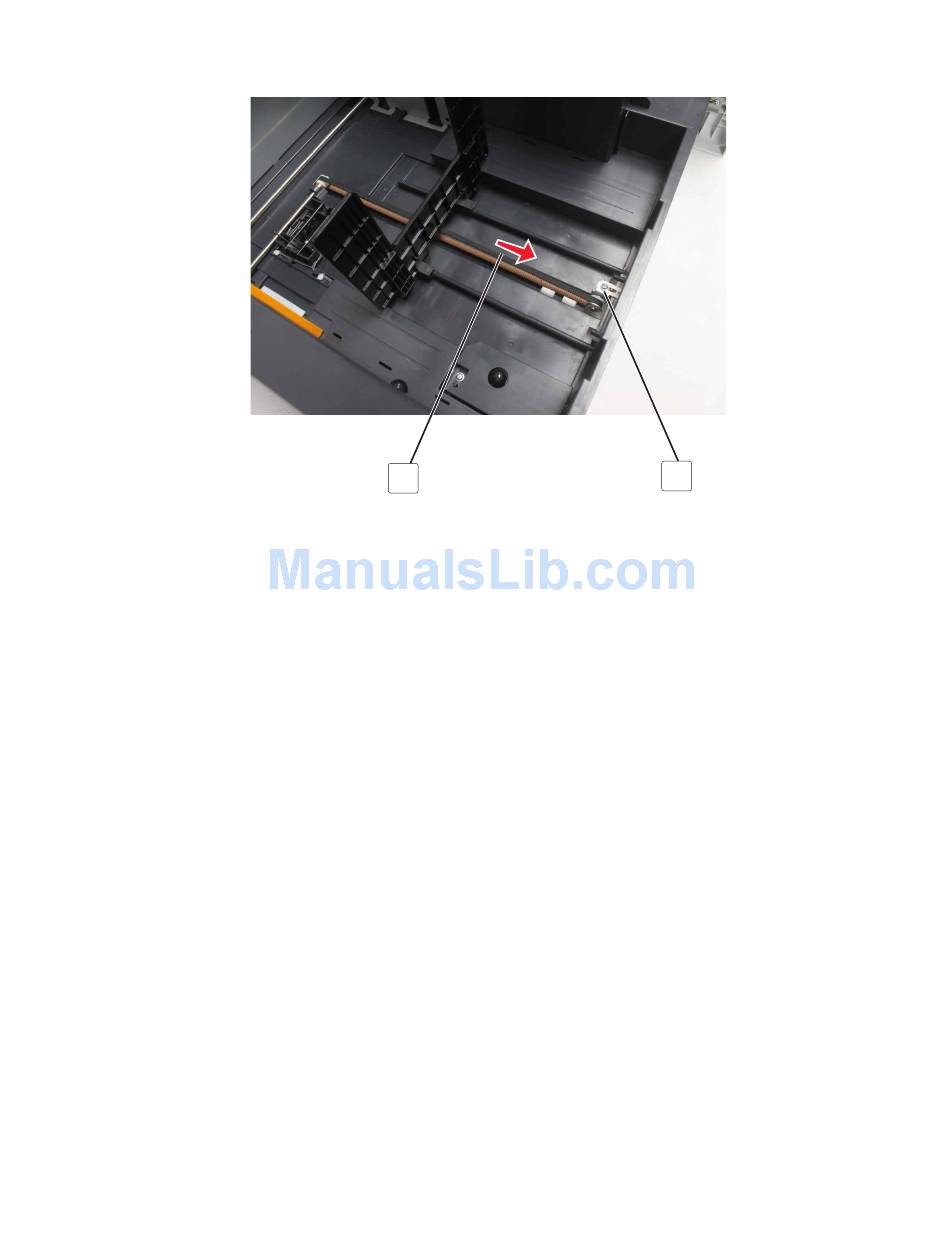

Loosen the tension screw (C) and then move the belt (D) to adjust.
6
Retighten the tension screw.

Removal procedures

Keep the following tips in mind as you replace parts:
• Some removal procedures require removing cable ties. You must replace cable ties during reassembly to avoid
pinching wires, obstructing the paper path, or restricting mechanical movement.
•
Remove the toner cartridges, imaging unit, and media tray before removing other printer parts. The imaging unit
should be carefully set on a clean, smooth, and flat surface. It should also be protected from light while out of the
device.
•
Disconnect all external cables from the printer to prevent possible damage during service.
• Unless otherwise stated, reinstall the parts in reverse order of removal.
•
When reinstalling a part held with several screws, start all screws before the final tightening.
