Fuser Power Supply Fan Removal - Lexmark MS911 Service Manual

6

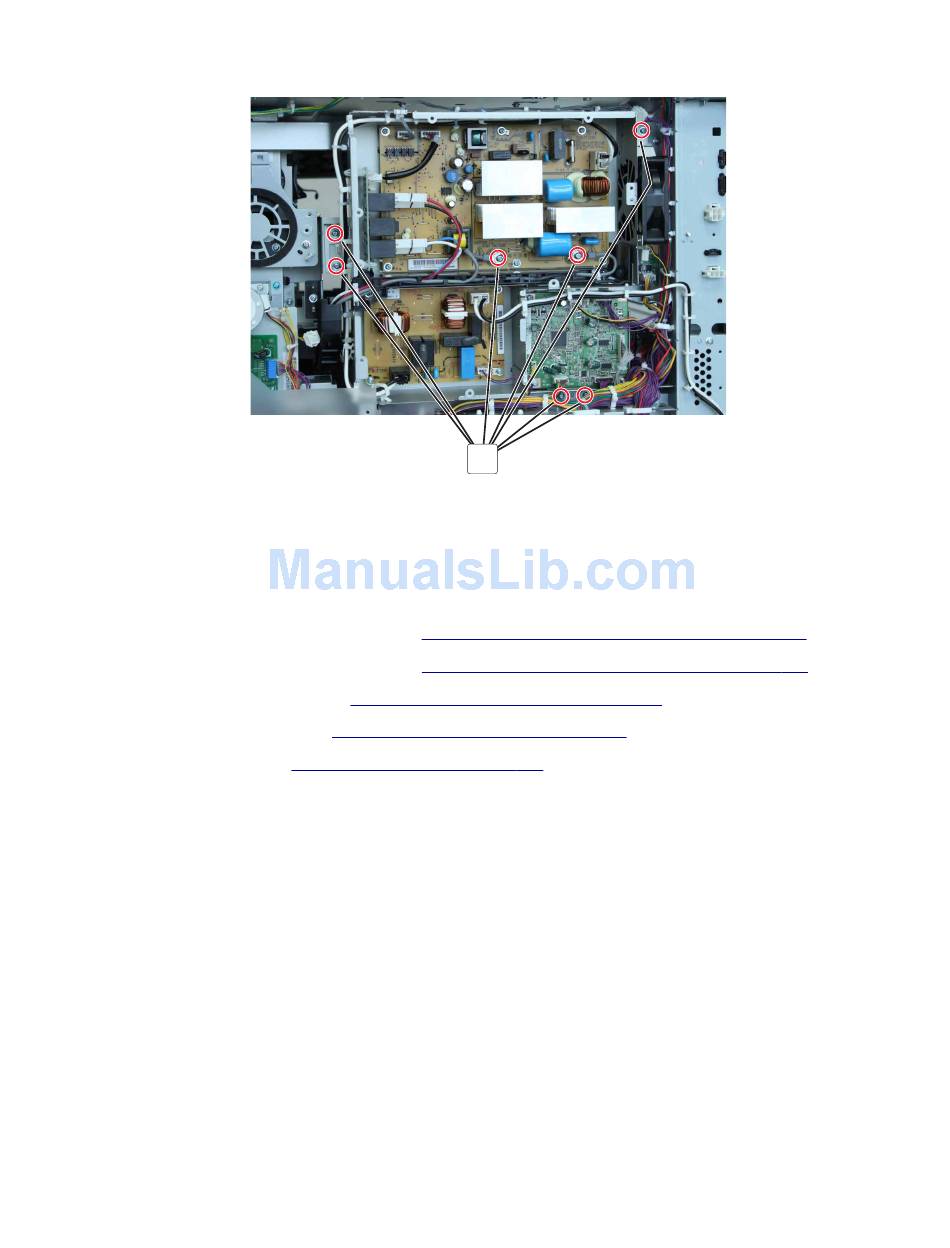

Remove the seven screws (A).
7
Disconnect the cables within the frame, and then release them from the guides.
8
Remove the frame.

Fuser power supply fan removal

1
Remove the scanner interface cable cover. See
2
Remove the controller board access cover. See
3
Remove the engine board cover. See
4
Remove the upper rear cover. See
5
Remove the IHPS shield. See
"Scanner interface cable cover removal" on page
"Controller board access cover removal" on page
"Engine board cover removal" on page
"Upper rear cover removal" on page
"IHPS shield removal" on page
Repair information
301
A
289.
289.
290.
4021
286.
287.
